GSU75L-ARZGHX (2020)

Toyota Highlander/Kluger

Production Mar 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2003- )2GRFKS

Click highlighted areas on diagram

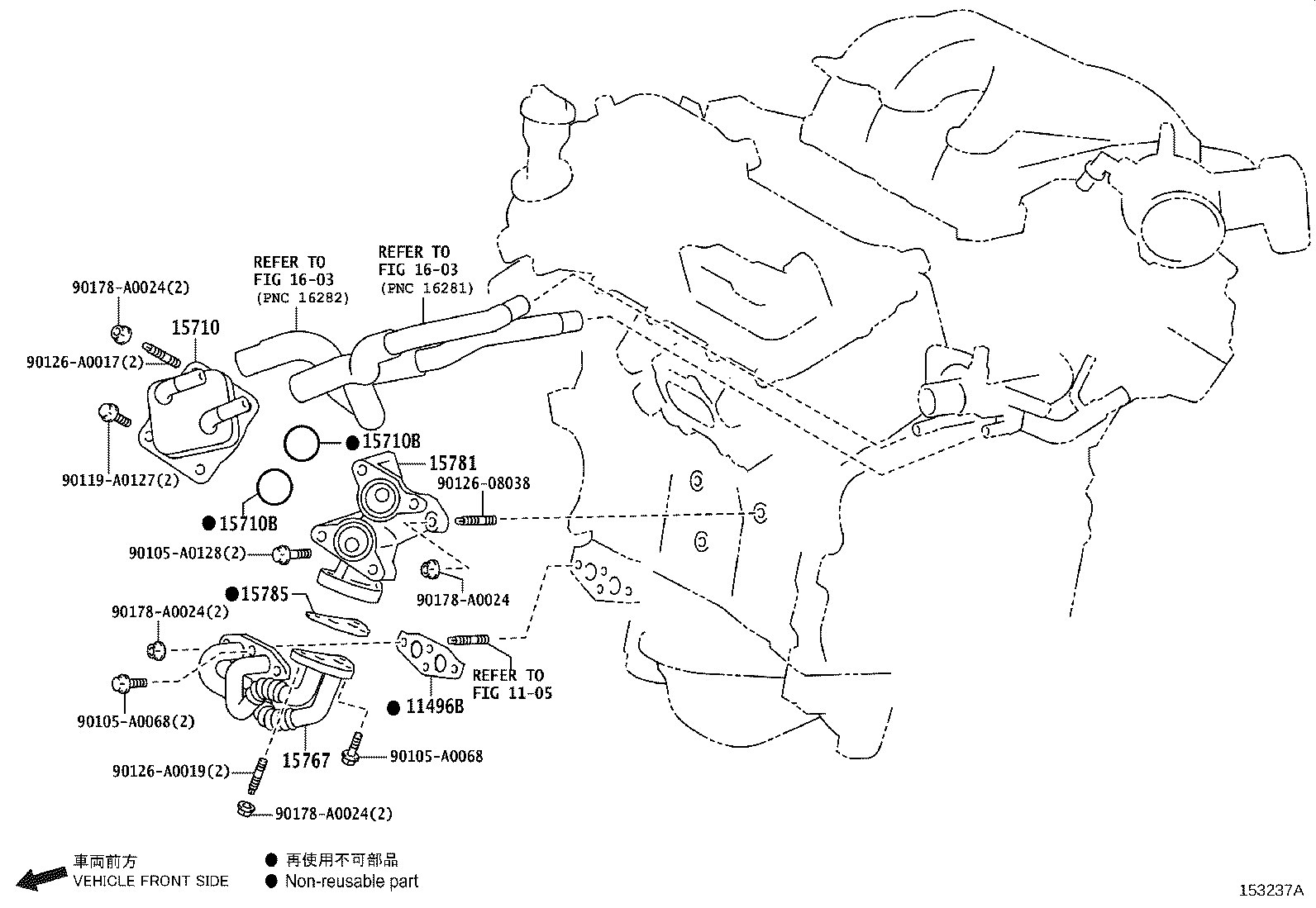

diagram 1105 11496B 15710 15710B 15710B 15767 15781 15785 1603 1603 90105A0068 90105A0068 90105A0128 90119A0127 9012608038 90126A0017 90126A0019 90178A0024 90178A0024 90178A0024 90178A0024
Part # Description Qty Price
11496B - GASKET, OIL HOLE COVER
11496-0P010

2GRFKS..GSU7#

 1
15710 - COOLER ASSY, OIL
15710-0P010

2GRFKS..GSU7#

 1
15710B - RING, O(FOR OIL COOLER)
15785-31050

2GRFKS..GSU7#

 2
15710B - RING, O(FOR OIL COOLER)
15785-31050

2GRFKS..GSU7#

 2
15767 - PIPE, OIL COOLER
15767-0P011

2GRFKS..GSU7#

 1
15781 - BRACKET, OIL COOLER, NO.1
15781-0P010

2GRFKS..GSU7#

 1
15785 - GASKET, OIL COOLER
15785-0P010

2GRFKS..GSU7#

 1
Common parts
90105-A0068
90105-A0128
90119-A0127
90126-08038
90126-A0017
90126-A0019
90178-A0024
Linked diagrams
1105
1603
