GSU70R-ARZGHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )GSU7#..ARL

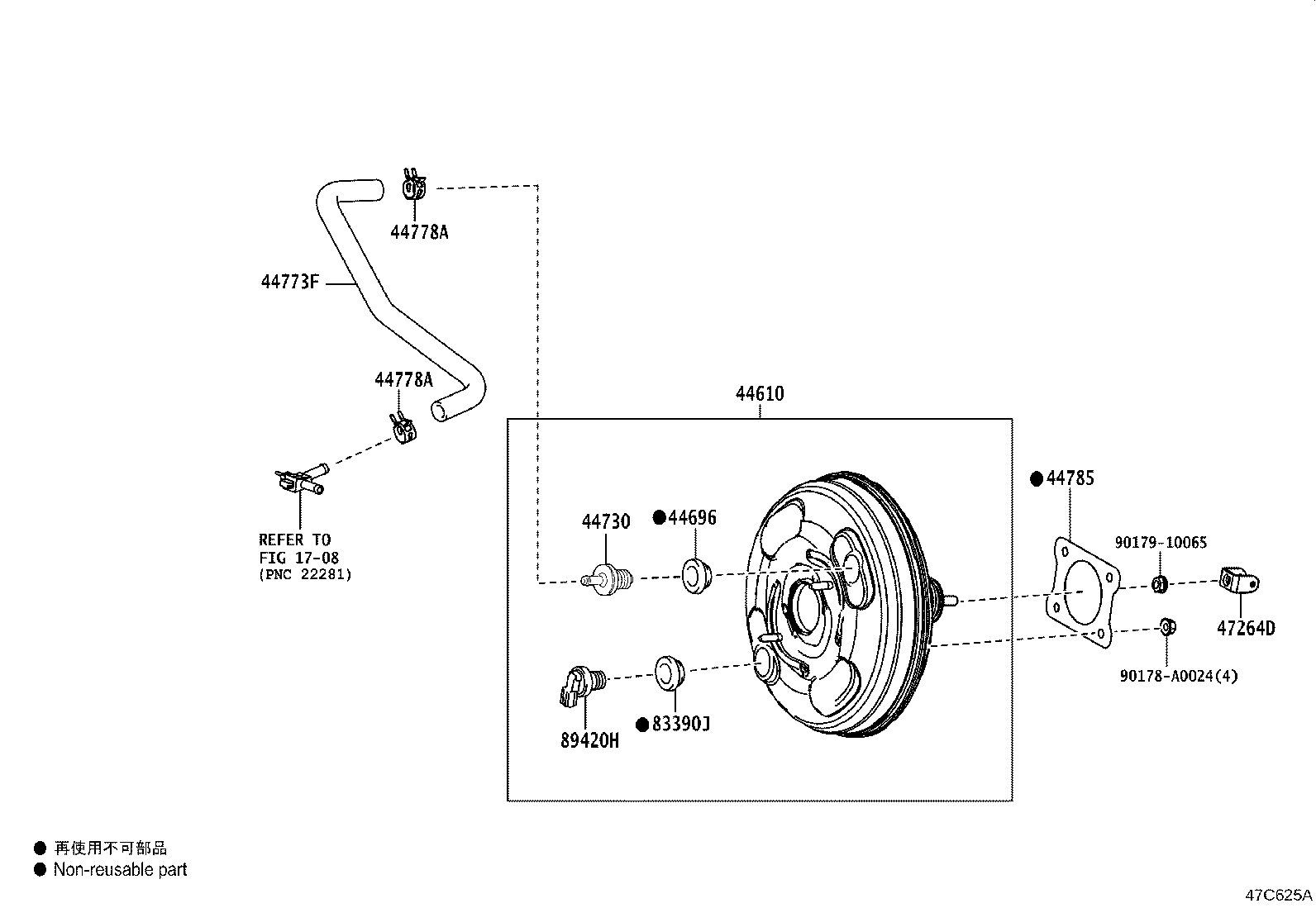

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44773F 44778A 44778A 44785 47264D 83390J 89420H 90178A0024 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0E210

GSU7#..ARL

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0E130

GSU7#..ARL

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

GSU7#..ARL

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

GSU7#..ARL

 2
89420H - SENSOR ASSY, VACUUM
89421-52020

GSU7#..ARL

 1
Common parts
90178-A0024
90179-10065
Linked diagrams
1708
