GSU45R-BRANKQ (2007)

Toyota Highlander/Kluger

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ARL

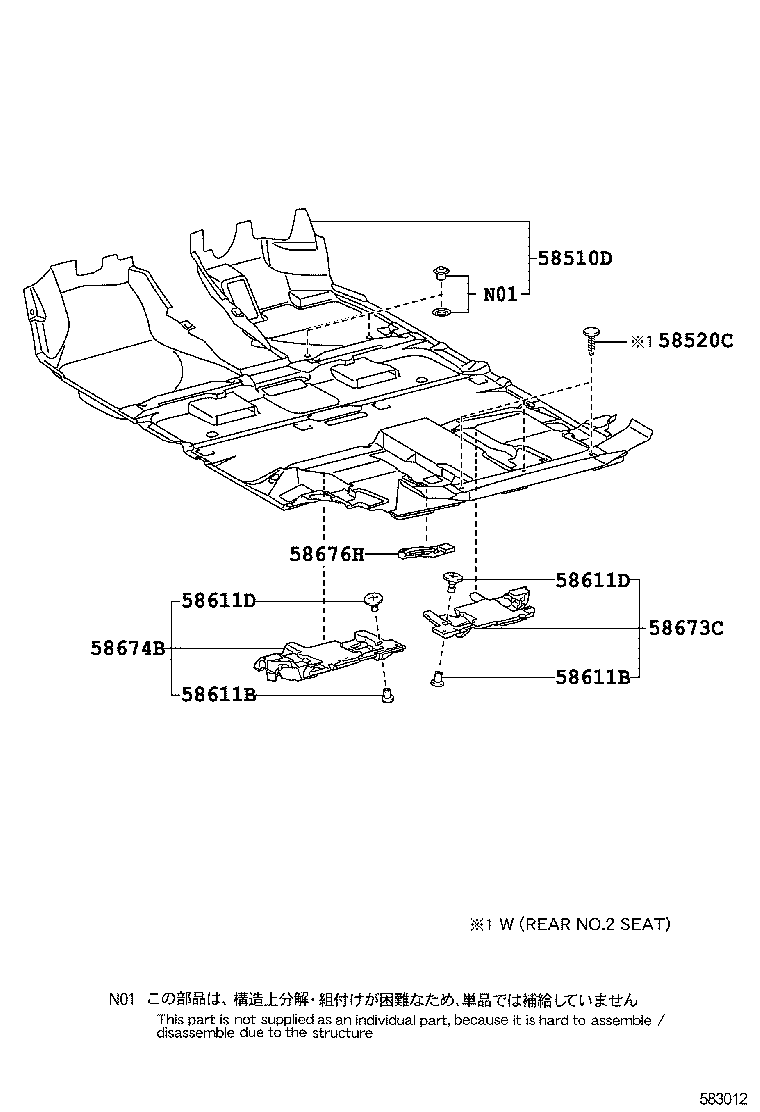

Click highlighted areas on diagram

diagram 58510D 58520C 58611B 58611B 58611D 58611D 58673C 58674B 58676H
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-48220B0

GSU4#..STD..ARL

LT.GRAY,TRIM1#

 1
58510-48220E0

GSU4#..ARL

SAND BEIGE,TRIM4#

 1
58510-48240E0

GSU4#..STD..ARL

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
58510-48220C0

GSU4#..ARL

BLACK,TRIM2#

 1
58510-48240C0

GSU4#..STD..ARL

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

 1
58510-48240B0

GSU4#..STD..ARL

WITHOUT(REAR NO.2 SEAT),LT.GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049P6

GSU4#..LIMD,SPO,STD

GRAY,TRIM1#

 3
90467-07049E7

GSU4#

SAND BEIGE,TRIM4#

 3
90467-07049C0

GSU45;GSU40..ARL

BLACK,TRIM2#

 3
58611B - PLATE, MAT SET, NO.1
55229-48010

GSU4#..ARL

 2
58611B - PLATE, MAT SET, NO.1
55229-48010

GSU4#..ARL

 2
58611D - PLATE, MAT SET, NO.1 B
55239-48020

GSU4#..ARL

 2
58611D - PLATE, MAT SET, NO.1 B
55239-48020

GSU4#..ARL

 2
58673C - PAD, REAR FLOOR SILENCER, NO.1
58673-48020

GSU4#..ARL

 1
58673-48030

GSU4#..STD..ARL

WITHOUT(REAR NO.2 SEAT)

 1
58674B - PAD, REAR FLOOR SILENCER, NO.2
58674-48020

GSU4#

 1
58674-48021

GSU4#..ARL

 1
58674-48030

GSU4#..STD..ARL

WITHOUT(REAR NO.2 SEAT)

 1
58676H - PAD, REAR FLOOR SILENCER
58675-48030

GSU4#..ARL

 1
