GSU45R-BRANKQ (2007)
Toyota Highlander/Kluger
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )ARL,RUS

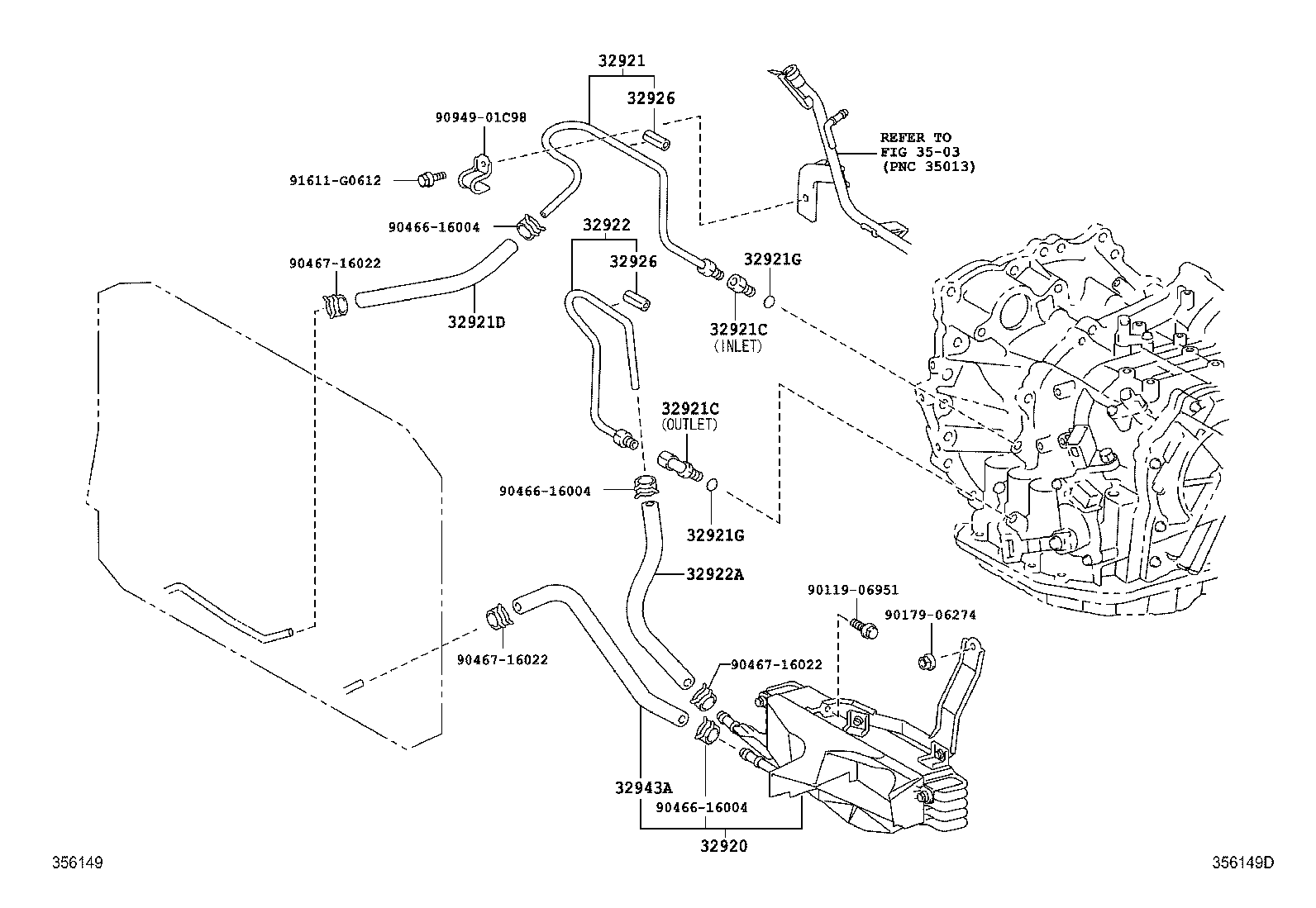

Click highlighted areas on diagram
U151E,U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32920 - COOLER ASSY, OIL W/HOSE | ||||
| 32920-48062 |
GSU4# |
1 | ||
| 32920-48061 |
GSU4# |
1 | ||
| 32920-48060 |
GSU4#..ARL |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-48150 |
GSU4#..ARL |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
GSU4#..ARL OUTLET |
1 | ||
| 90404-16031 |
GSU4#..ARL INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
GSU4#..ARL OUTLET |
1 | ||
| 90404-16031 |
GSU4#..ARL INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-48110 |
GSU4#..ARL |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GSU4#..ARL (J) |
2 | ||
| 90301-A0016 |
GSU4#..ARL (L) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GSU4#..ARL (J) |
2 | ||
| 90301-A0016 |
GSU4#..ARL (L) |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-48120 |
GSU4#..ARL |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17174 |
GSU4#..ARL |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-26010 |
GSU4#..ARL L=60,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-26010 |
GSU4#..ARL L=60,ID=10 |
2 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-48121 |
GSU4# |
1 | ||
| 32943-48120 |
GSU4#..ARL |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90179-06274 | ||||
| 90466-16004 | ||||
| 90467-16022 | ||||
| 90949-01C98 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 3503 | ||||
