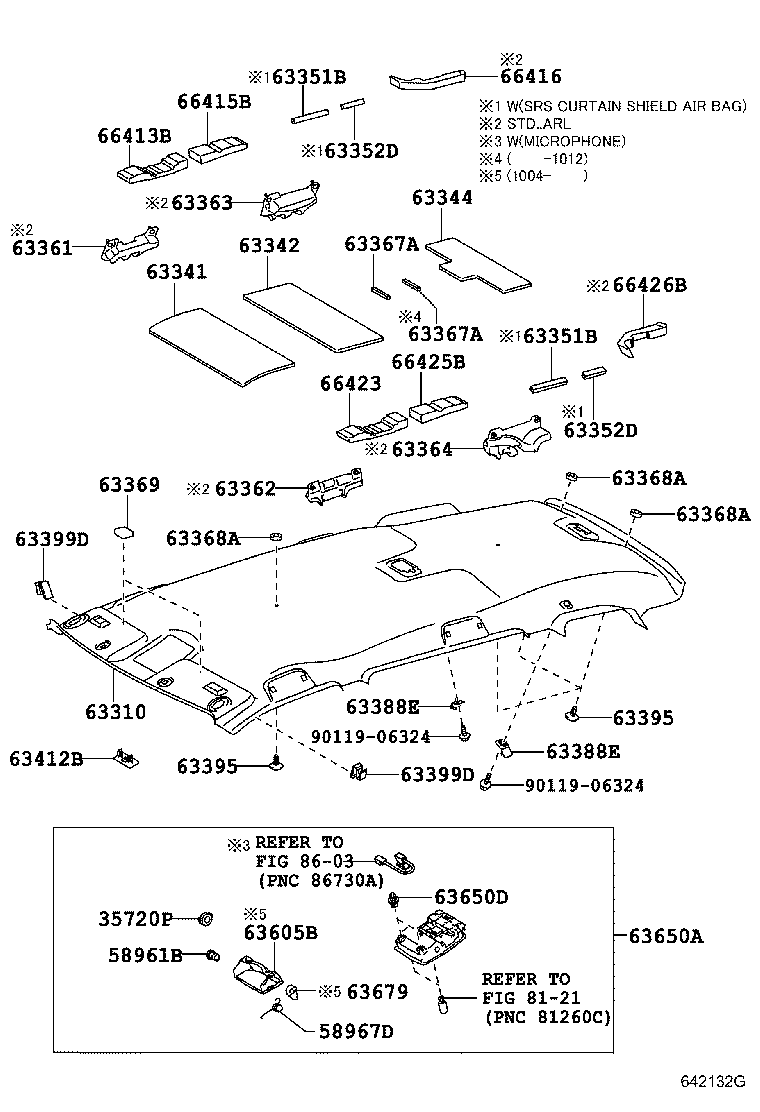

GSU45L-BRASKC (2007)
Toyota Highlander/Kluger
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-48290B1 |
GSU45..SPO WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48330E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63310-48290E0 |
GSU45..SPO WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48310B1 |
GSU45..SPO GRAY,TRIM1#,2# |
1 | ||
| 63310-48320E0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48330B1 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63310-48310E0 |
GSU45..SPO SAND BEIGE,TRIM4# |
1 | ||
| 63310-48320B1 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-48040 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-48040 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-48060 |
GSU4#..CHI |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
GSU4#..CHI |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
GSU4#..CHI |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
GSU4#..CHI |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
GSU4#..CHI |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
GSU4#..CHI |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
GSU4#..CHI |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
GSU4#..(SPO,STD)..CHI |
3 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
GSU4#..(SPO,STD)..CHI |
3 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
GSU4#..(SPO,STD)..CHI |
3 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63369 - SUPPORT, ROOF HEADLINING, NO.9 | ||||
| 63369-48020 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63369-48020 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63369-48010 |
GSU4#..(SPO,STD)..CHI |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-48010B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
3 | ||
| 63395-48010E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
3 | ||
| 63395-48010B0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395-48010B0 |
GSU45..SPO,STD;GSU40..STD..ARL GRAY,TRIM1#,2# |
4 | ||
| 63395-48010E0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
3 | ||
| 63395-48010E0 |
GSU4#..SPO,STD SAND BEIGE,TRIM4# |
4 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-48010B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
3 | ||
| 63395-48010E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
3 | ||
| 63395-48010B0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395-48010B0 |
GSU45..SPO,STD;GSU40..STD..ARL GRAY,TRIM1#,2# |
4 | ||
| 63395-48010E0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
3 | ||
| 63395-48010E0 |
GSU4#..SPO,STD SAND BEIGE,TRIM4# |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
GSU4#..CHI |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
GSU4#..CHI |
2 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-48010 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 63412-33010 |
GSU4#..SPO,STD |
1 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63605-48030E0 |
GSU45..CHI AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63605-48030B0 |
GSU45..CHI AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63605-48030B0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63605-48030E0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-48110E0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48100E0 |
GSU4#..(SPO,STD)..CHI SAND BEIGE,TRIM4# |
1 | ||
| 63650-48100B0 |
GSU45..SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48170B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48110B0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48180E0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48101E0 |
GSU4#..(SPO,STD)..CHI SAND BEIGE,TRIM4# |
1 | ||
| 63650-48101B0 |
GSU45..SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48180B0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48111E0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48170E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48181B0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48111B0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48171E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48171B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48181E0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90467-10167 |
GSU4# |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-48080 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-48040 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-48080 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-48020 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| Common parts | ||||
| 90119-06324 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
(0705- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62435C - PAD, ROOF SIDE RAIL GARNISH, RH | ||||
| 62435-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
1 | ||
| 62435-48010 |
GSU45..SPO MOON ROOF-WITH |
1 | ||
| 62436C - PAD, ROOF SIDE RAIL GARNISH, LH | ||||
| 62436-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
1 | ||
| 62436-48010 |
GSU45..SPO MOON ROOF-WITH |
1 | ||
| 62437B - PAD, ROOF SIDE RAIL, REAR RH | ||||
| 62437-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
1 | ||
| 62437-48010 |
GSU45..SPO MOON ROOF-WITH |
1 | ||
| 62438A - PAD, ROOF SIDE RAIL, REAR LH | ||||
| 62438-48020 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
1 | ||
| 62438-48020 |
GSU45..SPO MOON ROOF-WITH |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-42040E0 |
GSU45..SPO,STD;GSU40..STD..ARL MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63306-42040B0 |
GSU45..SPO,STD;GSU40..STD..ARL MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-48290B1 |
GSU45..SPO WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48330E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63310-48290E0 |
GSU45..SPO WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48310B1 |
GSU45..SPO GRAY,TRIM1#,2# |
1 | ||
| 63310-48320E0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48330B1 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63310-48310E0 |
GSU45..SPO SAND BEIGE,TRIM4# |
1 | ||
| 63310-48320B1 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-48020E0 |
GSU45..SPO L=2374,MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63318-48020B0 |
GSU45..SPO L=2374,MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63318-48020E0 |
GSU45..SPO L=2374,MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63318-48020B0 |
GSU45..SPO L=2374,MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-48060 |
GSU4#..CHI |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
GSU4#..CHI |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
GSU4#..CHI |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
GSU4#..CHI |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
GSU4#..CHI |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
GSU4#..CHI |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
GSU4#..CHI |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
GSU4#..(SPO,STD)..CHI |
3 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
GSU4#..(SPO,STD)..CHI |
3 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63368-48010 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63369 - SUPPORT, ROOF HEADLINING, NO.9 | ||||
| 63369-48020 |
GSU45..SPO MOON ROOF-WITH |
2 | ||
| 63369-48020 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER) |
2 | ||
| 63369-48010 |
GSU4#..(SPO,STD)..CHI |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-48010B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
3 | ||
| 63395-48010E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
3 | ||
| 63395-48010B0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395-48010B0 |
GSU45..SPO,STD;GSU40..STD..ARL GRAY,TRIM1#,2# |
4 | ||
| 63395-48010E0 |
GSU45..SPO MOON ROOF-WITH&WITHOUT(REAR AIR CONDITIONER),SAND BEIGE,TRIM4# |
3 | ||
| 63395-48010E0 |
GSU4#..SPO,STD SAND BEIGE,TRIM4# |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
GSU4#..CHI |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
GSU4#..CHI |
2 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63605-48030E0 |
GSU45..CHI AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63605-48030B0 |
GSU45..CHI AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63605-48030B0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63605-48030E0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-48110E0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48100E0 |
GSU4#..(SPO,STD)..CHI SAND BEIGE,TRIM4# |
1 | ||
| 63650-48100B0 |
GSU45..SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48170B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48110B0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48180E0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48101E0 |
GSU4#..(SPO,STD)..CHI SAND BEIGE,TRIM4# |
1 | ||
| 63650-48101B0 |
GSU45..SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48180B0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48111E0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48170E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48181B0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48111B0 |
GSU45..SPO AUDIO-NAVIGATION DVD 6SPEAKER *BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48171E0 |
GSU45..SPO MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48171B0 |
GSU45..SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48181E0 |
GSU45..SPO MOON ROOF-WITH&AUDIO-NAVIGATION DVD 6SPEAKER *BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90467-10167 |
GSU4# |
2 | ||
| Common parts | ||||
| 90119-06324 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
