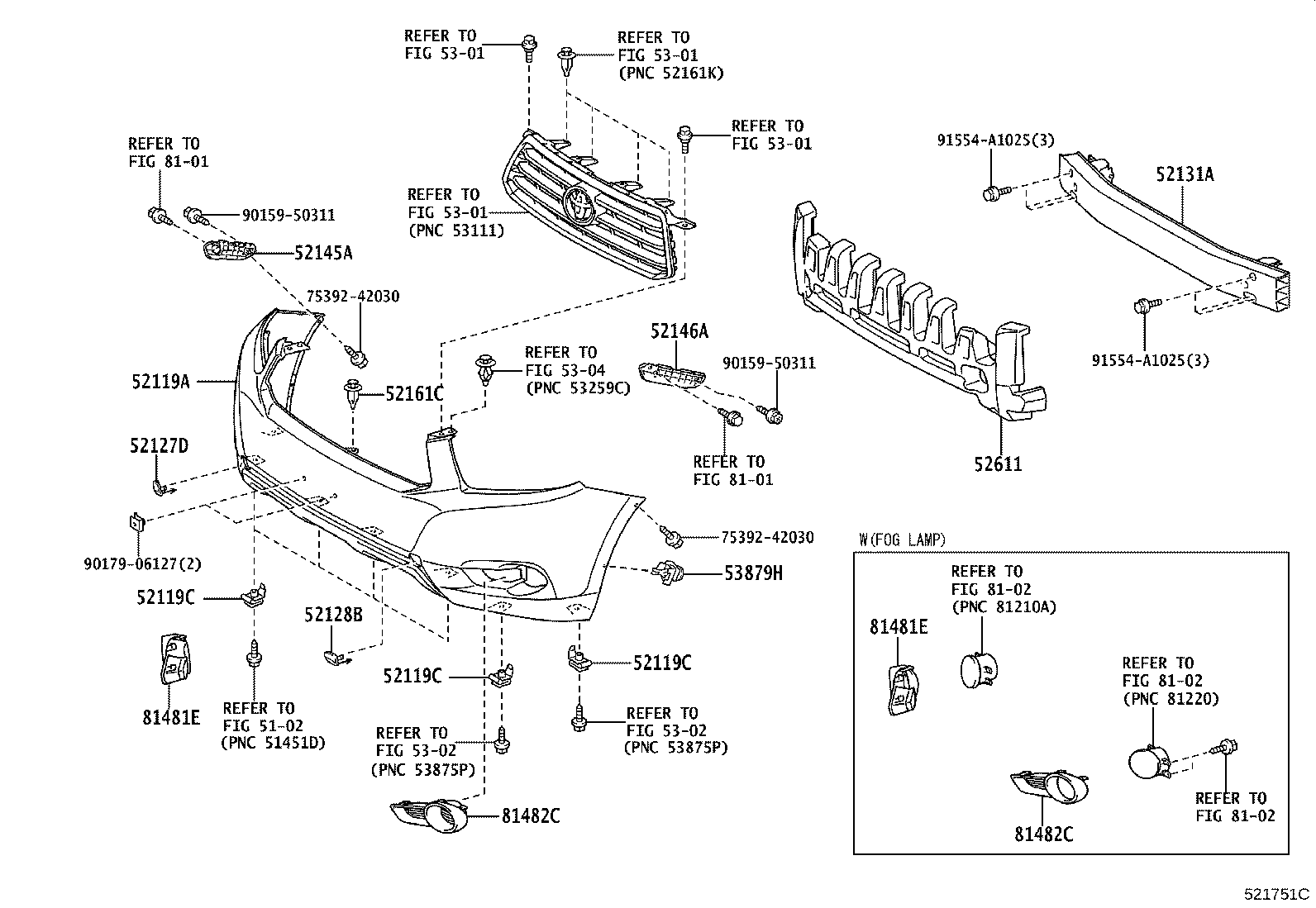

Toyota Highlander/kluger GSU45 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52119A - COVER, FRONT BUMPER
52119-48937	GSU4#..CHI PAINT REQ.	05/2007 - 01/2009	1
52119C - CLIP, FRONT BUMPER COVER
90467-05114	GSU4#	05/2007 - 07/2010	7
52119C - CLIP, FRONT BUMPER COVER
90467-05114	GSU4#	05/2007 - 07/2010	7
52119C - CLIP, FRONT BUMPER COVER
90467-05114	GSU4#	05/2007 - 07/2010	7
52127D - COVER, FRONT BUMPER HOLE, RH
52127-48906	GSU4#..CHI	05/2007 - 01/2009	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-48904	GSU4#..CHI	05/2007 - 01/2009	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-48100	GSU4#	05/2007 - 07/2010	1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-48030	GSU4#..CHI	05/2007 - 01/2009	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-48020	GSU4#..CHI	05/2007 - 01/2009	1
52161C - PIECE, FRONT BUMPER
52161-16010	GSU4#..CHI	05/2007 - 01/2009	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-48090	GSU4#..CHI	05/2007 - 01/2009	1
53879H - RETAINER, FRONT FENDER LINER
53879-28010	GSU4#	05/2007 - 07/2010	2
81481E - COVER, FOG LAMP, RH
81481-48040B0	GSU40..CHI;GSU4#..GD,LIMD,SPO SILVER ME.,1F7	05/2007 - 07/2010	1
81481-48040A0	GSU40..CHI;GSU4#..GD,LIMD,SPO WHITE PEARL CS.,070	05/2007 - 07/2010	1
81481-48040B1	GSU40..CHI;GSU4#..GD,LIMD,SPO GRAY ME.,1G3	05/2007 - 07/2010	1
81481-48040C0	GSU40..CHI;GSU4#..GD,LIMD,SPO BLACK,202	05/2007 - 07/2010	1
81481-48040E0	GSU40..CHI;GSU4#..GD,LIMD,SPO BEIGE ME.,4T8	05/2007 - 07/2010	1
81481-48040J0	GSU40..CHI;GSU4#..GD,LIMD,SPO LT.BLUE M.M.,8S7	05/2007 - 07/2010	1
81481-48040D0	GSU40..CHI;GSU4#..GD,LIMD,SPO DK. RED M.M.,3Q3	05/2007 - 07/2010	1
81481-48040G0	GSU40..CHI;GSU4#..GD,LIMD,SPO OLIVE M.M.,6T7	05/2007 - 07/2010	1
81481-48040J1	GSU40..CHI;GSU4#..GD,LIMD,SPO BLUE ME.,8T7	05/2007 - 07/2010	1
81481E - COVER, FOG LAMP, RH
81481-48040B0	GSU40..CHI;GSU4#..GD,LIMD,SPO SILVER ME.,1F7	05/2007 - 07/2010	1
81481-48040A0	GSU40..CHI;GSU4#..GD,LIMD,SPO WHITE PEARL CS.,070	05/2007 - 07/2010	1
81481-48040B1	GSU40..CHI;GSU4#..GD,LIMD,SPO GRAY ME.,1G3	05/2007 - 07/2010	1
81481-48040C0	GSU40..CHI;GSU4#..GD,LIMD,SPO BLACK,202	05/2007 - 07/2010	1
81481-48040E0	GSU40..CHI;GSU4#..GD,LIMD,SPO BEIGE ME.,4T8	05/2007 - 07/2010	1
81481-48040J0	GSU40..CHI;GSU4#..GD,LIMD,SPO LT.BLUE M.M.,8S7	05/2007 - 07/2010	1
81481-48040D0	GSU40..CHI;GSU4#..GD,LIMD,SPO DK. RED M.M.,3Q3	05/2007 - 07/2010	1
81481-48040G0	GSU40..CHI;GSU4#..GD,LIMD,SPO OLIVE M.M.,6T7	05/2007 - 07/2010	1
81481-48040J1	GSU40..CHI;GSU4#..GD,LIMD,SPO BLUE ME.,8T7	05/2007 - 07/2010	1
81482C - COVER, FOG LAMP, LH
81482-48040J0	GSU4#..CHI LT.BLUE M.M.,8S7	05/2007 - 01/2009	1
81482-48040A0	GSU4#..CHI WHITE PEARL CS.,070	05/2007 - 01/2009	1
81482-48040D0	GSU4#..CHI DK. RED M.M.,3Q3	05/2007 - 01/2009	1
81482-48040C0	GSU4#..CHI BLACK,202	05/2007 - 01/2009	1
81482-48040J1	GSU4#..CHI BLUE ME.,8T7	05/2007 - 01/2009	1
81482-48040B1	GSU4#..CHI GRAY ME.,1G3	05/2007 - 01/2009	1
81482-48040E0	GSU4#..CHI BEIGE ME.,4T8	05/2007 - 01/2009	1
81482-48040B0	GSU4#..CHI SILVER ME.,1F7	05/2007 - 01/2009	1
81482-48040G0	GSU4#..CHI OLIVE M.M.,6T7	05/2007 - 01/2009	1
81482C - COVER, FOG LAMP, LH
81482-48040J0	GSU4#..CHI LT.BLUE M.M.,8S7	05/2007 - 01/2009	1
81482-48040A0	GSU4#..CHI WHITE PEARL CS.,070	05/2007 - 01/2009	1
81482-48040D0	GSU4#..CHI DK. RED M.M.,3Q3	05/2007 - 01/2009	1
81482-48040C0	GSU4#..CHI BLACK,202	05/2007 - 01/2009	1
81482-48040J1	GSU4#..CHI BLUE ME.,8T7	05/2007 - 01/2009	1
81482-48040B1	GSU4#..CHI GRAY ME.,1G3	05/2007 - 01/2009	1
81482-48040E0	GSU4#..CHI BEIGE ME.,4T8	05/2007 - 01/2009	1
81482-48040B0	GSU4#..CHI SILVER ME.,1F7	05/2007 - 01/2009	1
81482-48040G0	GSU4#..CHI OLIVE M.M.,6T7	05/2007 - 01/2009	1
Common parts
75392-42030
90159-50311
90179-06127
91554-A1025
Linked diagrams
5102
5301
5302
5304
8101
8102

GSU45L-BRASKC (2007)

(0705-1007)
