GSU45L-BRAGKC (2007)

Toyota Highlander/Kluger

Production May 2007 - Jan 2009
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

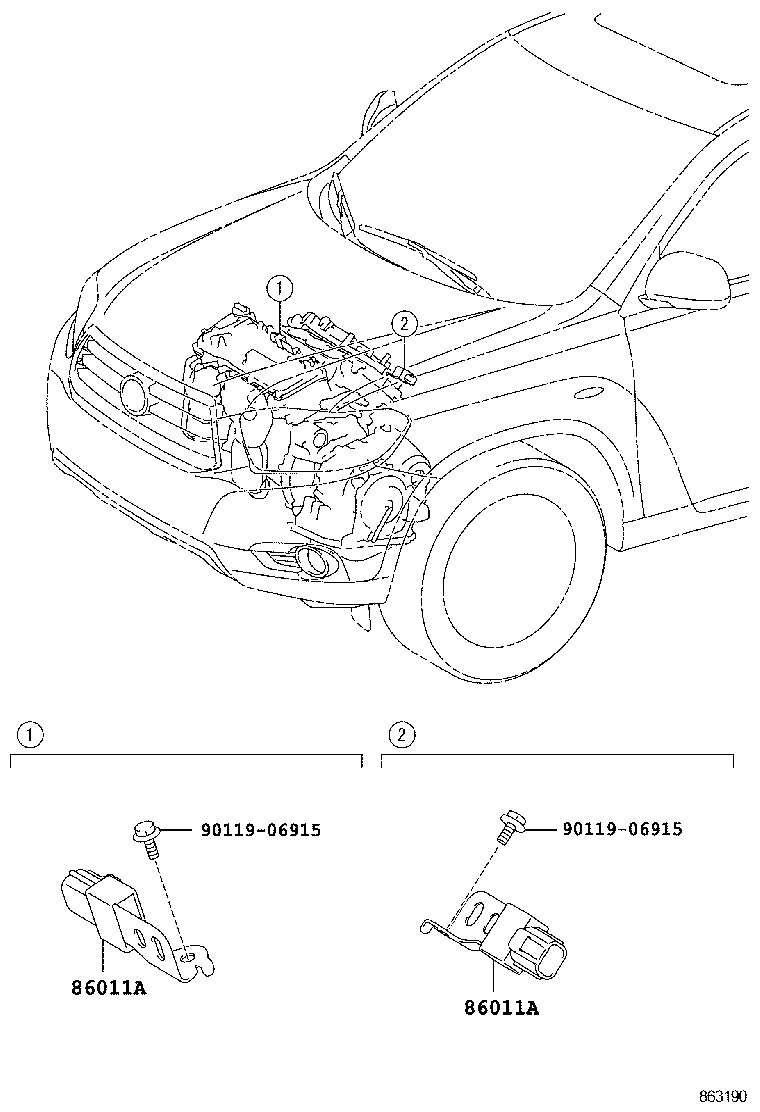

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 9011906915 9011906915
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU4#..CHI

 2
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU4#..CHI

 2
Common parts
90119-06915

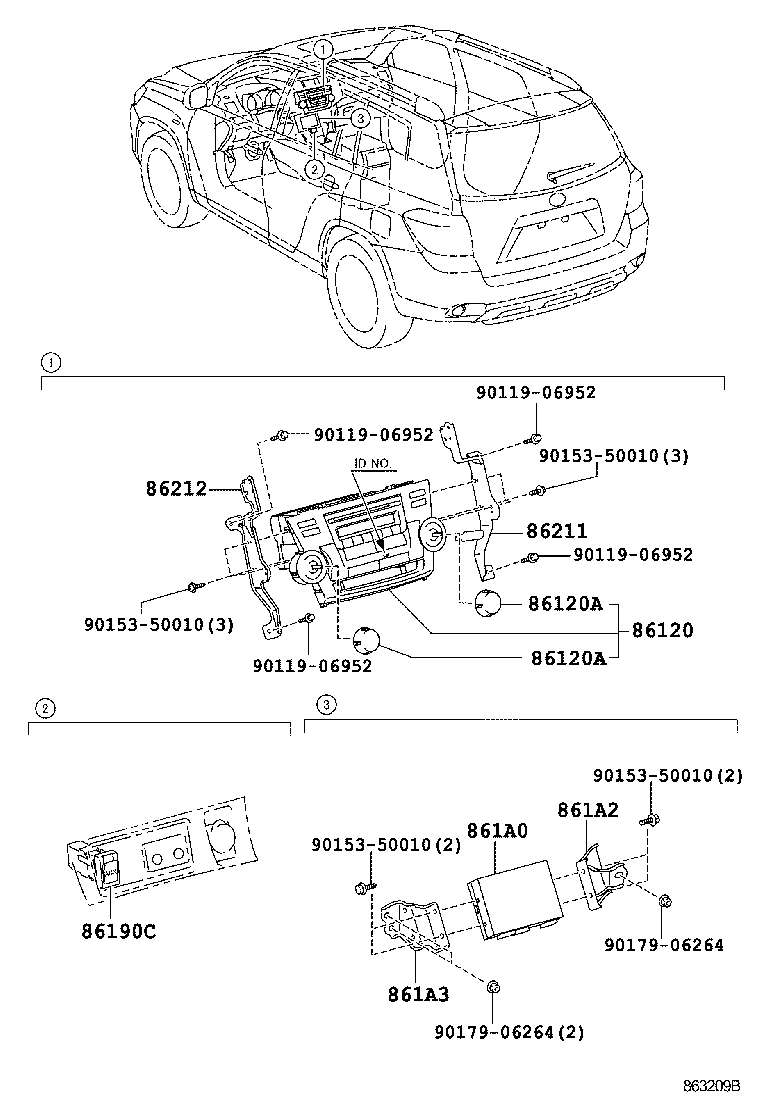

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86190C 861A0 861A2 861A3 86211 86212 9011906952 9011906952 9011906952 9011906952 9015350010 9015350010 9015350010 9015350010 9017906264 9017906264
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-48E80C0

GSU45..LIMD

MATSUSHITA,BLACK,TRIM1#,2#

 1
86120-48E80E0

GSU45..LIMD

MATSUSHITA,DK. BROWN,TRIM4#

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24127

GSU4#..CHI

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24127

GSU4#..CHI

 2
86211 - BRACKET, RADIO, NO.1
86211-48070

GSU4#

 1
86212 - BRACKET, RADIO, NO.2
86212-48070

GSU4#

 1
Common parts
90119-06952
90153-50010
90179-06264
