GSU45L-BRAGKC (2007)
Toyota Highlander/Kluger

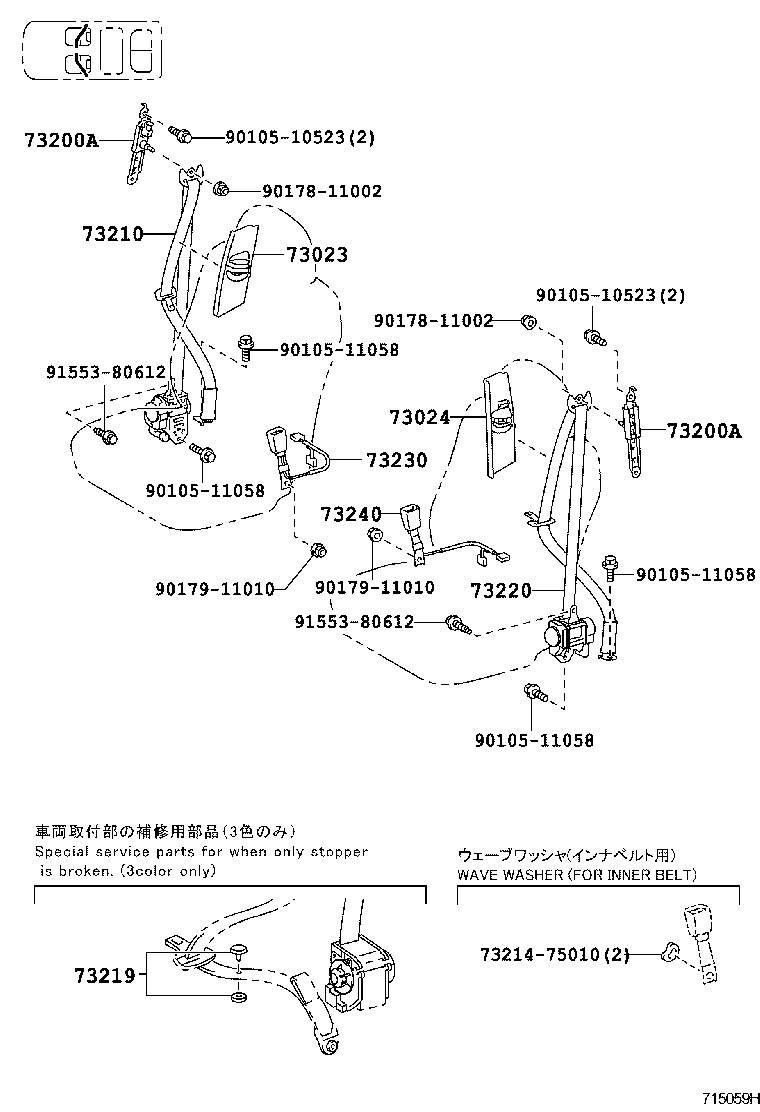

ILLUST NO. 1 OF 3(0705- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33020B0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
1 | ||
| 73023-33020E1 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33020E1 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73024-33020B0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GSU4#..CHI |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GSU4#..CHI |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-48180B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73210-48180C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73210-48180A0 |
GSU4#..CHI IVORY,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GSU4#..CHI BEIGE |
1 | ||
| 73219-33020 |
GSU4#..CHI GRAY |
1 | ||
| 73219-33010 |
GSU4#..CHI BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-48160C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73220-48160A0 |
GSU4#..CHI IVORY,TRIM4# |
1 | ||
| 73220-48160B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-48220B0 |
GSU45..LIMD NEW GRAY,TRIM1# |
1 | ||
| 73230-48220E0 |
GSU45..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 73230-48220C0 |
GSU45..LIMD BLACK,TRIM2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-48250B0 |
GSU45..CHI GRAY,TRIM1# |
1 | ||
| 73230-48250E0 |
GSU45..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73230-48250C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

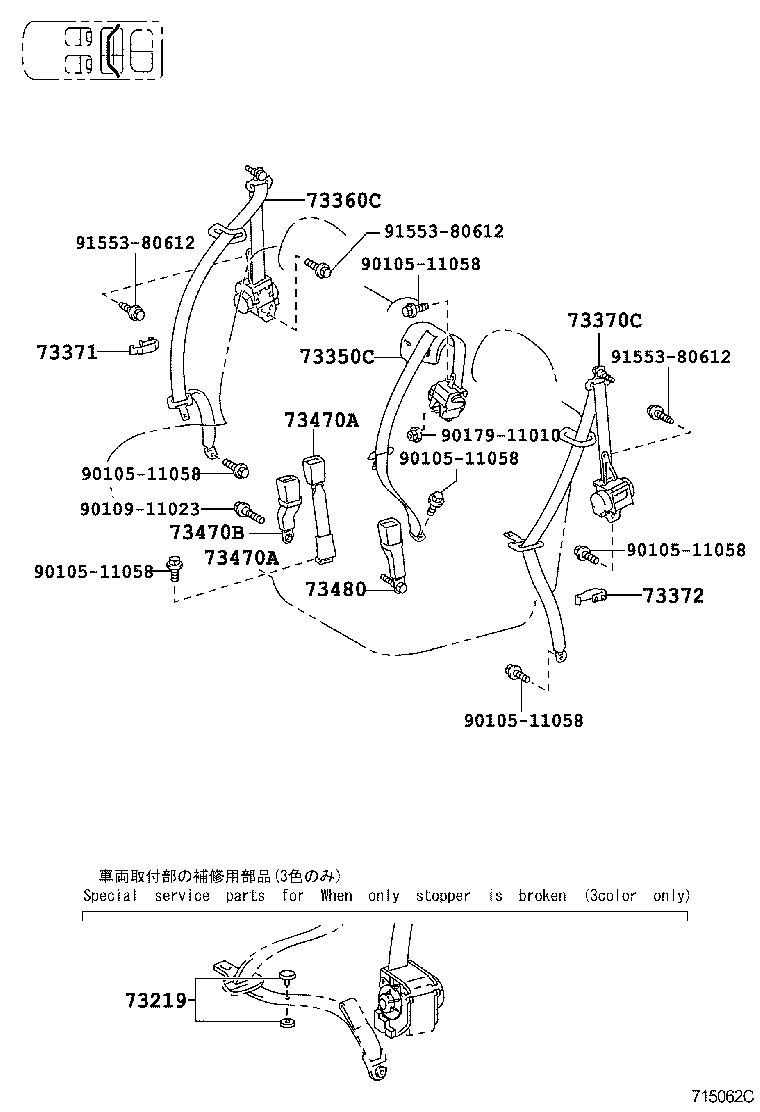

ILLUST NO. 2 OF 3(0705- )
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GSU4#..CHI BEIGE |
1 | ||
| 73219-33020 |
GSU4#..CHI GRAY |
1 | ||
| 73219-33010 |
GSU4#..CHI BLACK |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-48080B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73350-48080A0 |
GSU4#..CHI IVORY,TRIM4# |
1 | ||
| 73350-48080C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-48080A0 |
GSU4#..CHI IVORY,TRIM4# |
1 | ||
| 73360-48080B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73360-48080C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-48080A0 |
GSU4#..CHI IVORY,TRIM4# |
1 | ||
| 73370-48080C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73370-48080B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-48010B0 |
GSU4#..LIMD,SPO,STD GRAY,TRIM1# |
1 | ||
| 73371-48010E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73371-48010C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-48010C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 73371-48010B0 |
GSU4#..LIMD,SPO,STD GRAY,TRIM1# |
1 | ||
| 73371-48010E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73470A - BELT ASSY, REAR SEAT, INNER CENTER | ||||
| 73380-48091E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73380-48091B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73380-48090B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73380-48090E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73380-48090C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73380-48091C0 |
GSU4#..CHI BLACK,TRIM2# |
1 | ||
| 73470A - BELT ASSY, REAR SEAT, INNER CENTER | ||||
| 73380-48091E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73380-48091B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73380-48090B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73380-48090E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73380-48090C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73380-48091C0 |
GSU4#..CHI BLACK,TRIM2# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73480-48040C1 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73480-48040B1 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 73480-48040E1 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73380-48030C0 |
GSU45..CHI BLACK,TRIM2# |
1 | ||
| 73380-48030E1 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73380-48030B1 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11023 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

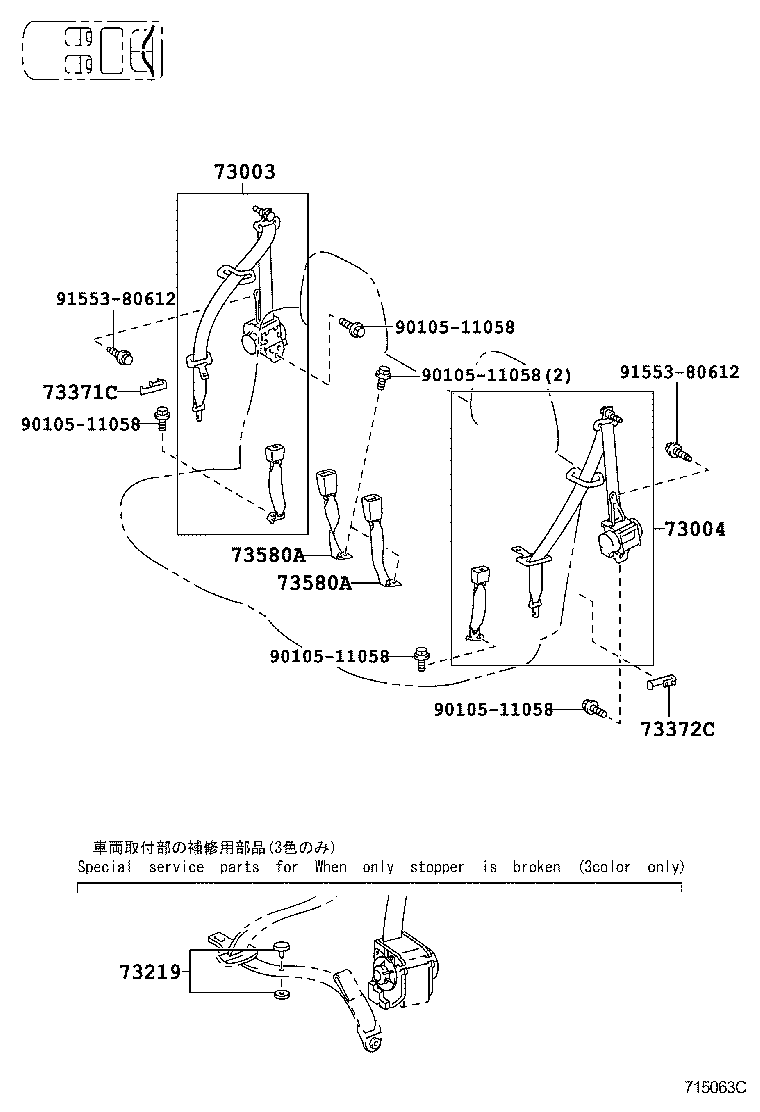

ILLUST NO. 3 OF 3(0705-1007)
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73003 - BELT SET, REAR SEAT 3 POINT TYPE, RH | ||||
| 73005-48010A0 |
GSU4# IVORY,TRIM4# |
1 | ||
| 73005-48010B0 |
GSU4#..LIMD,SPO,STD GRAY,TRIM1# |
1 | ||
| 73005-48010C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 73004 - BELT SET, REAR SEAT 3 POINT TYPE, LH | ||||
| 73006-48020B0 |
GSU45..LIMD GRAY,TRIM1# |
1 | ||
| 73006-48020A0 |
GSU45..LIMD IVORY,TRIM4# |
1 | ||
| 73006-48020C0 |
GSU45..LIMD BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GSU4#..CHI BEIGE |
1 | ||
| 73219-33020 |
GSU4#..CHI GRAY |
1 | ||
| 73219-33010 |
GSU4#..CHI BLACK |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-44020P0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
1 | ||
| 73371-44020E5 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-44020P0 |
GSU40..STD..ARL;GSU45..LIMD,SPO,STD GRAY,TRIM1#,2# |
1 | ||
| 73371-44020E5 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-48020A0 |
GSU4# IVORY,TRIM4# |
2 | ||
| 73580-48020B0 |
GSU4#..LIMD,SPO,STD GRAY,TRIM1# |
2 | ||
| 73580-48020C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-48020A0 |
GSU4# IVORY,TRIM4# |
2 | ||
| 73580-48020B0 |
GSU4#..LIMD,SPO,STD GRAY,TRIM1# |
2 | ||
| 73580-48020C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 91553-80612 | ||||
