GSU45L-BRAGKC (2007)

Toyota Highlander/Kluger

Production May 2007 - Jan 2009
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

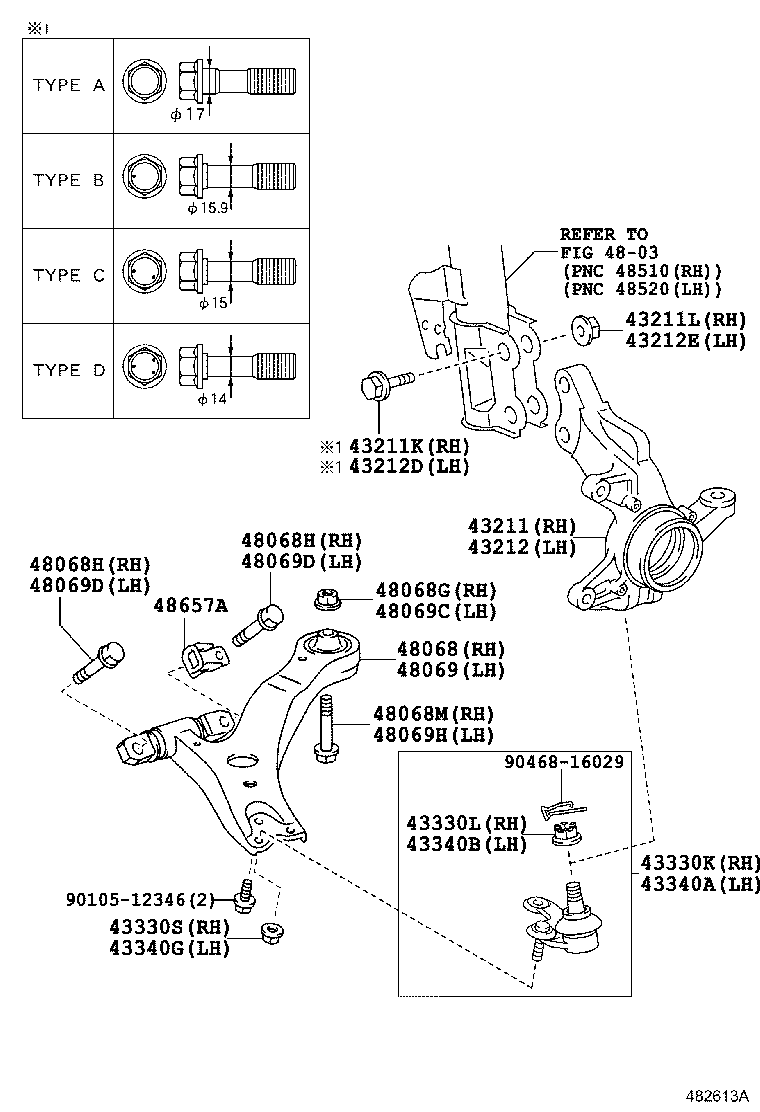

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330S 43340A 43340B 43340G 4803 48068 48068G 48068H 48068H 48068M 48069 48069C 48069D 48069D 48069H 48657A 9010512346 9046816029
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-48010

GSU4#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17012

GSU4#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17015

GSU4#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17013

GSU4#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17014

GSU4#

OD=15,TYPE C:REFER ILLUST.

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

GSU4#

 2
43212 - KNUCKLE, STEERING, LH
43212-48010

GSU4#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17012

GSU4#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17014

GSU4#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17015

GSU4#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17013

GSU4#

OD=15.9,TYPE B:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

GSU4#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-49125

GSU4#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14011

GSU4#..CHI

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

GSU4#..CHI

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-49035

GSU4#..CHI

 1
43340-49015

GSU4#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14011

GSU4#..CHI

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

GSU4#..CHI

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-48040

GSU4#..CHI

 1
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90179-14068

GSU4#..CHI

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16082

GSU4#..CHI

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16082

GSU4#..CHI

 2
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-14126

GSU4#..CHI

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-48040

GSU4#..CHI

 1
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90179-14068

GSU4#..CHI

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16082

GSU4#..CHI

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16082

GSU4#..CHI

 2
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14126

GSU4#..CHI

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

GSU4#..CHI

 2
Common parts
90105-12346
90468-16029
Linked diagrams
4803
