GSU45L-BRAGKC (2007)

Toyota Highlander/Kluger

Production May 2007 - Jan 2009
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

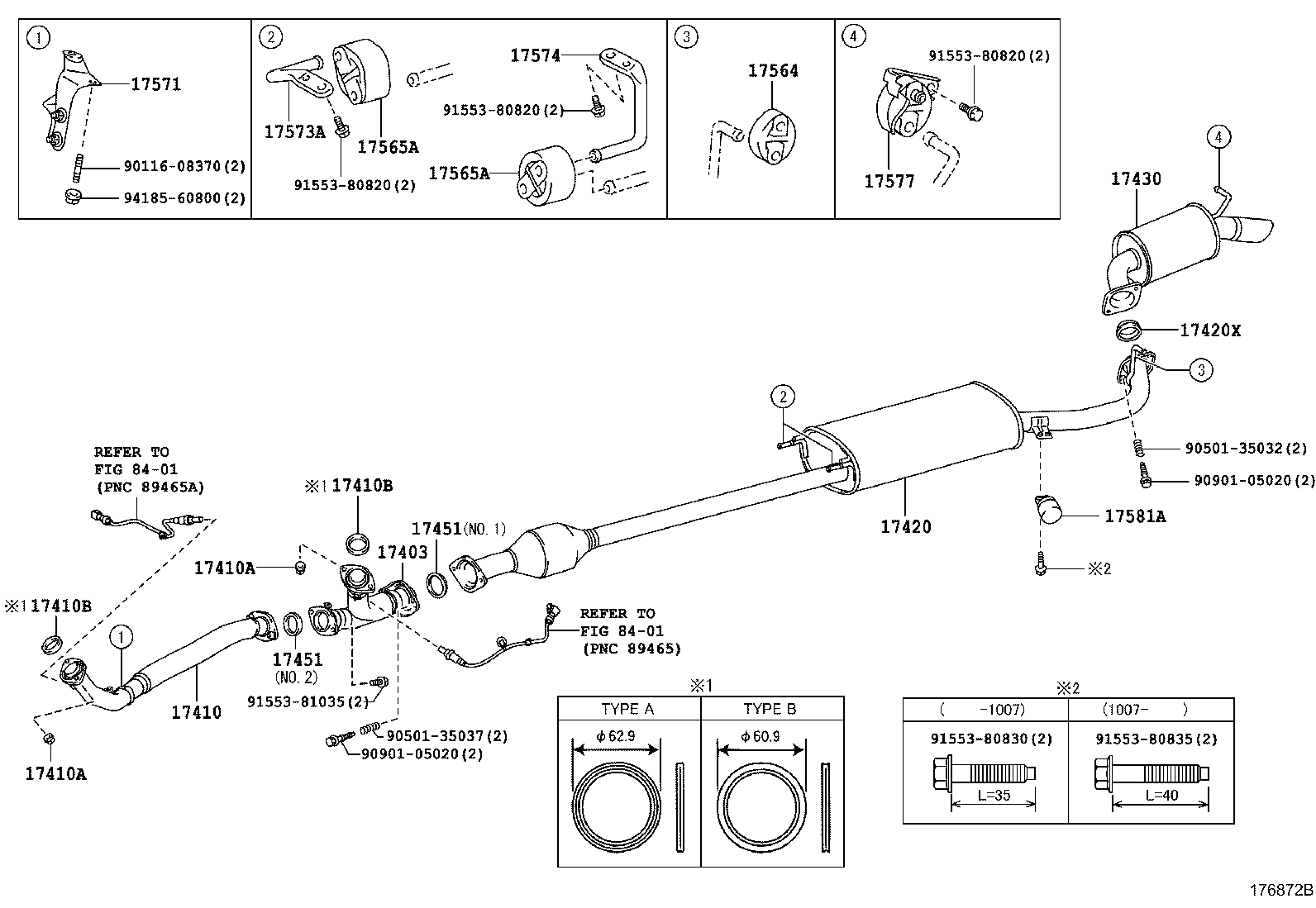

diagram 17403 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17564 17565A 17565A 17571 17573A 17574 17577 17581A 8401 8401 9011608370 9050135032 9050135037 9090105020 9090105020 9155380820 9155380820 9155380820 9155380830 9155380835 9155381035 9418560800
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-20170

2GRFE..GSU4#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31660

2GRFE..GSU4#..CHI

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2GRFE..GSU4#..CHI

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2GRFE..GSU4#..CHI

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

2GRFE..GSU4#..CHI

TYPE A:REFER ILLUST.

 2
90917-06089

2GRFE..GSU4#..CHI

TYPE B:REFER ILLUST.

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

2GRFE..GSU4#..CHI

TYPE A:REFER ILLUST.

 2
90917-06089

2GRFE..GSU4#..CHI

TYPE B:REFER ILLUST.

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-31260

2GRFE..GSU4#..CHI

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-22060

2GRFE..GSU4#..CHI

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31720

2GRFE..GSU4#..CHI

 1
17451 - GASKET, EXHAUST PIPE
17451-22070

2GRFE..GSU4#..CHI

NO.1

 1
90917-06046

2GRFE..GSU4#..CHI

NO.2

 1
17451 - GASKET, EXHAUST PIPE
17451-22070

2GRFE..GSU4#..CHI

NO.1

 1
90917-06046

2GRFE..GSU4#..CHI

NO.2

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-22030

2GRFE..GSU4#..CHI

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31040

2GRFE..GSU4#..CHI

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31040

2GRFE..GSU4#..CHI

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-31200

2GRFE..GSU4#..CHI

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-20070

2GRFE..GSU4#..CHI

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-20070

2GRFE..GSU4#..CHI

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-20030

2GRFE..GSU4#..CHI

 1
17581A - DAMPER, EXHAUST PIPE
17581-31010

2GRFE..GSU4#..CHI

 1
Common parts
90116-08370
90501-35032
90501-35037
90901-05020
91553-80820
91553-80830
91553-80835
91553-81035
94185-60800
Linked diagrams
8401
