GSU40R-BRAGKQ (2007)
Toyota Highlander/Kluger
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )ARL

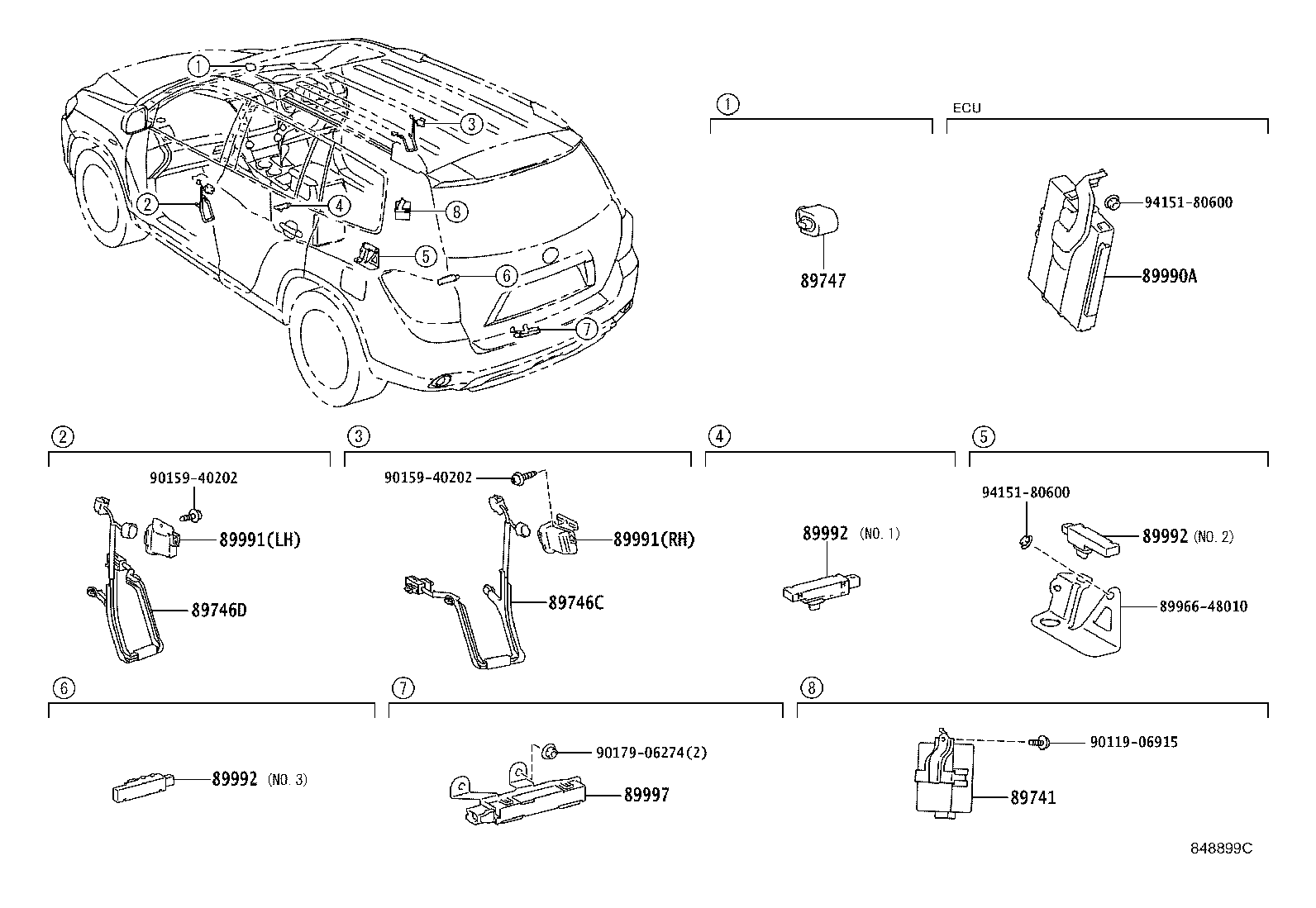

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-48031 |
GSU4#..GD |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-48040 |
GSU4#..GD |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-48050 |
GSU4#..GD |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
GSU4#..ARL |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-48031 |
GSU4#..GD |
1 | ||
| 89990-48030 |
GSU4#..GD |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30050 |
GSU4#..GD,LIMD LH |
1 | ||
| 89991-30040 |
GSU4#..GD,LIMD RH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30050 |
GSU4#..GD,LIMD LH |
1 | ||
| 89991-30040 |
GSU4#..GD,LIMD RH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-42020 |
GSU4#..GD NO.2 & NO.3 |
2 | ||
| 89992-52020 |
GSU4#..GD NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-42020 |
GSU4#..GD NO.2 & NO.3 |
2 | ||
| 89992-52020 |
GSU4#..GD NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-42020 |
GSU4#..GD NO.2 & NO.3 |
2 | ||
| 89992-52020 |
GSU4#..GD NO.1 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-48020 |
GSU4#..GD |
1 | ||
| Common parts | ||||
| 89966-48010 | ||||
| 90119-06915 | ||||
| 90159-40202 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
