GSU40R-BRAGKQ (2007)
Toyota Highlander/Kluger
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

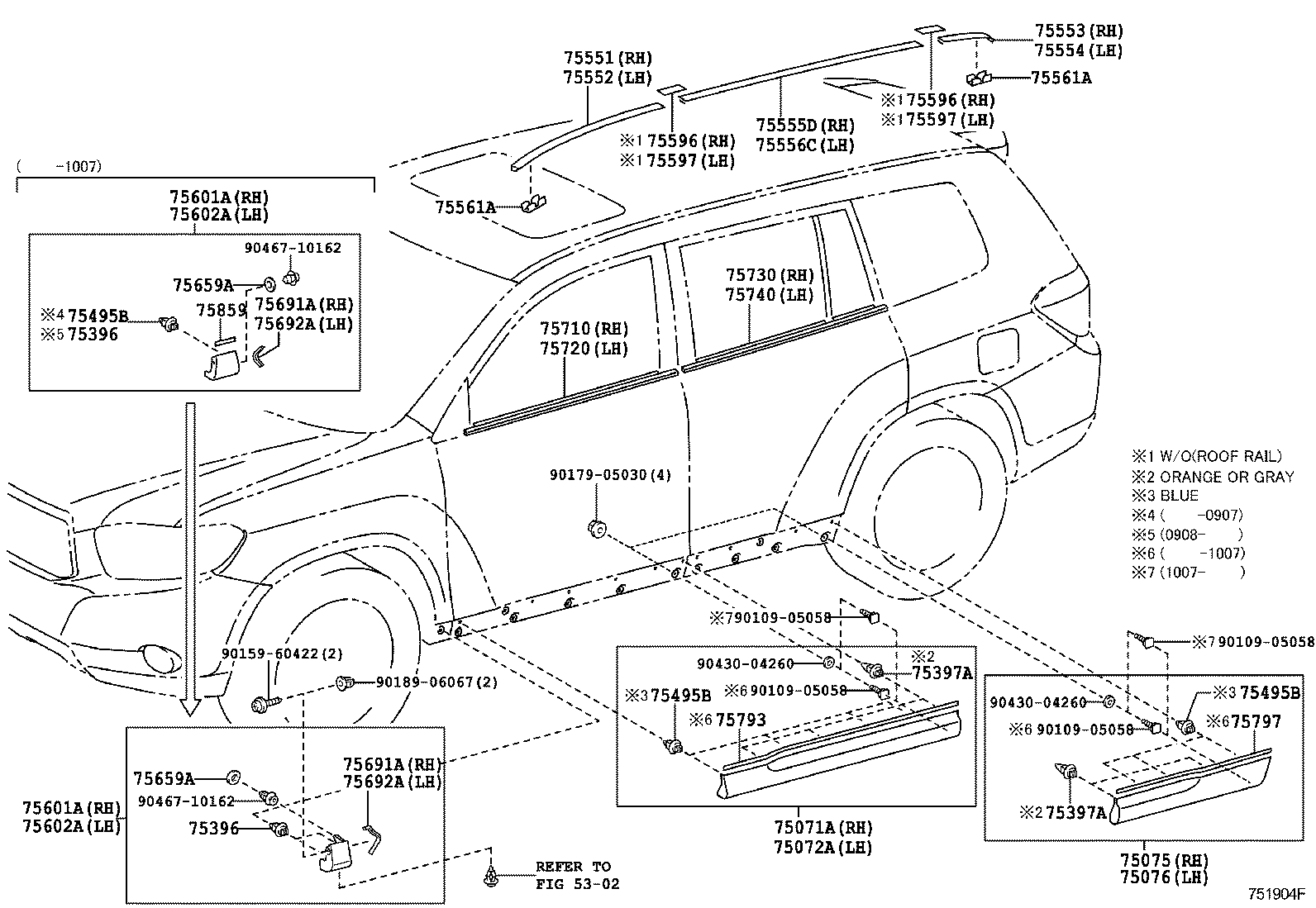

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 75071-48902 |
GSU4#..ARL |
1 | ||
| 75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 75072-48902 |
GSU4#..ARL |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75075-48901 |
GSU4#..ARL |
1 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75076-48901 |
GSU4#..ARL |
1 | ||
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-35020 |
GSU4# |
4 | ||
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-35020 |
GSU4# |
4 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
GSU4#..ARL |
10 | ||
| 75397-35010 |
GSU4# |
10 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
GSU4#..ARL |
10 | ||
| 75397-35010 |
GSU4# |
10 | ||
| 75495B - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GSU4#..ARL |
32 | ||
| 75495-35010 |
GSU4# |
30 | ||
| 75495B - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GSU4#..ARL |
32 | ||
| 75495-35010 |
GSU4# |
30 | ||
| 75495B - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GSU4#..ARL |
32 | ||
| 75495-35010 |
GSU4# |
30 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-48050 |
GSU4#..ARL NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-48050 |
GSU4#..ARL NO PAINT REQ. |
1 | ||
| 75553 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75553-48040 |
GSU4#..ARL NO PAINT REQ. |
1 | ||
| 75554 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75554-48040 |
GSU4#..ARL NO PAINT REQ. |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-48060 |
GSU4#..ARL |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75555-48060 |
GSU4#..ARL |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
GSU4#..ARL |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
GSU4#..ARL |
4 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-48901 |
GSU4#..ARL PAINT REQ. |
1 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-48901 |
GSU4#..ARL PAINT REQ. |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-48901 |
GSU4#..ARL PAINT REQ. |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-48901 |
GSU4#..ARL PAINT REQ. |
1 | ||
| 75659A - PAD, QUARTER PANEL MOULDING, NO.1 | ||||
| 75659-68010 |
GSU4#..ARL |
2 | ||
| 75659A - PAD, QUARTER PANEL MOULDING, NO.1 | ||||
| 75659-68010 |
GSU4#..ARL |
2 | ||
| 75691A - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-48020 |
GSU4#..ARL |
1 | ||
| 75691A - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-48020 |
GSU4#..ARL |
1 | ||
| 75692A - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75691-48020 |
GSU4#..ARL |
1 | ||
| 75692A - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75691-48020 |
GSU4#..ARL |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-48050 |
GSU4#..ARL |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-48050 |
GSU4#..ARL |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-48050 |
GSU4#..ARL |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-48050 |
GSU4#..ARL |
1 | ||
| 75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-48020 |
GSU4# |
2 | ||
| 75793-48020 |
GSU4#..ARL |
2 | ||
| 75797 - PAD, REAR DOOR OUTSIDE MOULDING, UPPER | ||||
| 75797-48020 |
GSU4#..ARL |
2 | ||
| 75797-48020 |
GSU4# |
2 | ||
| 75859 - PROTECTOR, FRONT FENDER SIDE | ||||
| 53829-48010 |
GSU4#..ARL |
2 | ||
| Common parts | ||||
| 90109-05058 | ||||
| 90159-60422 | ||||
| 90179-05030 | ||||
| 90189-06067 | ||||
| 90430-04260 | ||||
| 90467-10162 | ||||
| Linked diagrams | ||||
| 5302 | ||||
