GSU40R-BRAGKQ (2007)

Toyota Highlander/Kluger

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

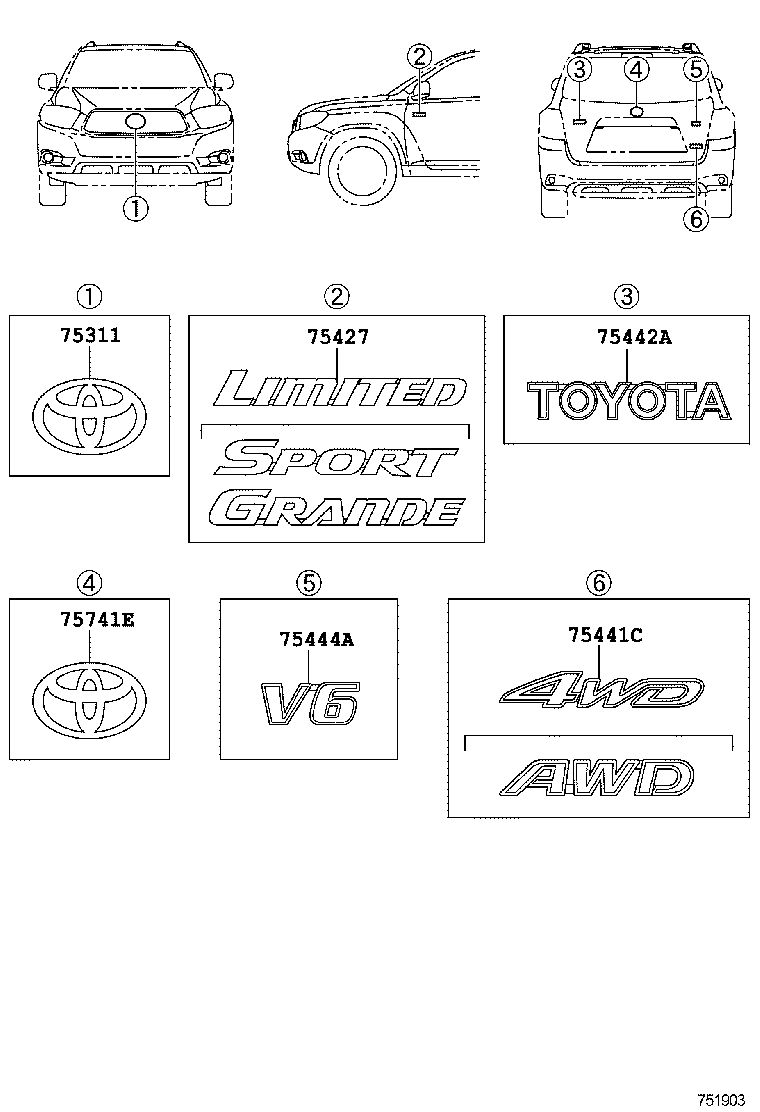

Click highlighted areas on diagram

diagram 75311 75427 75441C 75442A 75444A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-02100

GSU4#

 1
75427 - PLATE, FRONT DOOR NAME
75427-48040

GSU4#..GD

 2
75427-48020

GSU4#..GD

NEW ZEALAND SPEC

 2
75442A - PLATE, BACK DOOR NAME, NO.2
75442-48090

GSU4#..ARL

TOYOTA

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-48090

GSU4#..ARL

V6

 1
75741E - EMBLEM, SYMBOL
90975-02063

GSU4#

 1
90975-02071

GSU4#

 1
