GSU40R-BRAGKQ (2007)

Toyota Highlander/Kluger

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

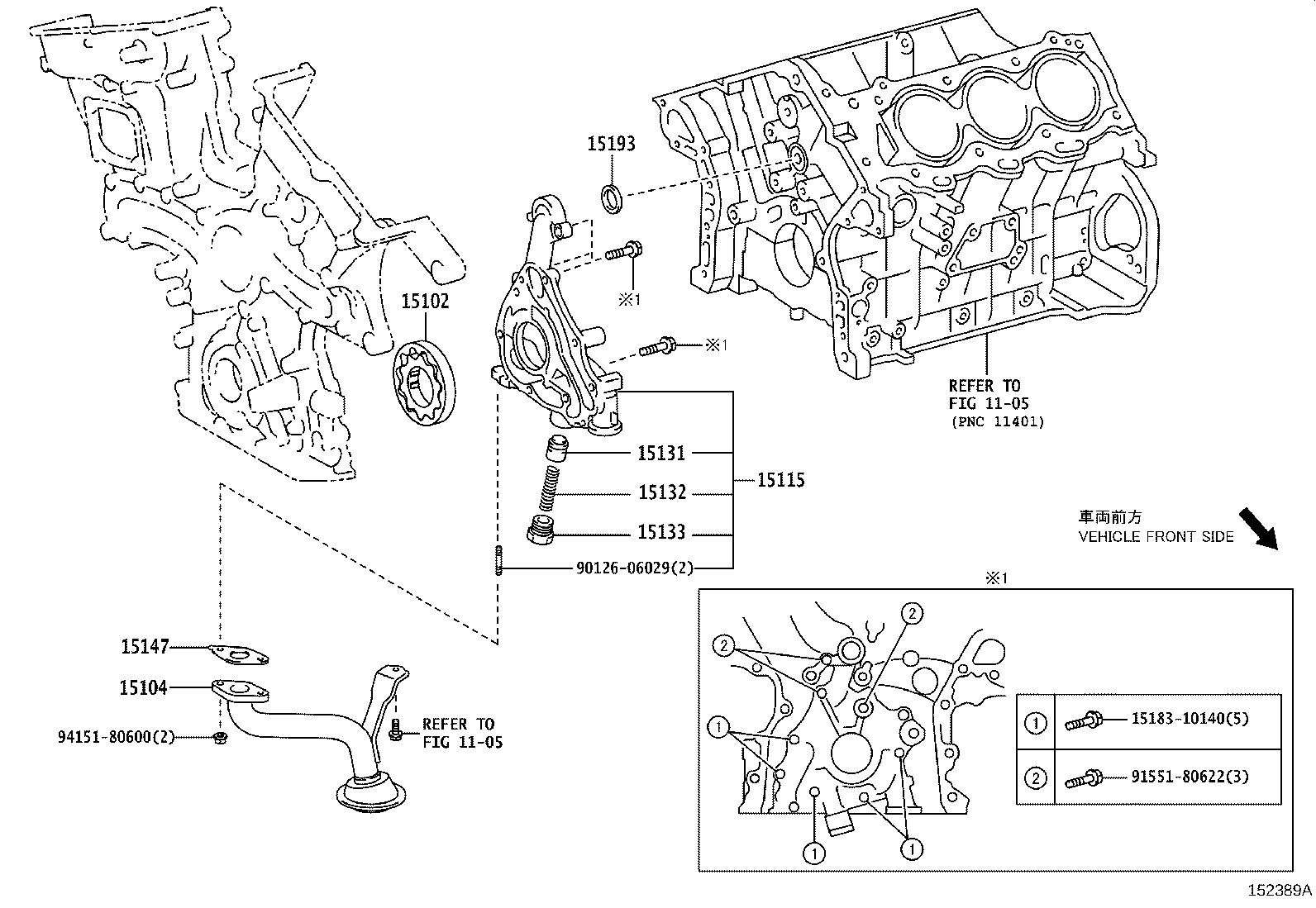

Click highlighted areas on diagram

diagram 1105 1105 15102 15104 15115 15131 15132 15133 15147 1518310140 15193 9012606029 9155180622 9415180600
Part # Description Qty Price
15102 - ROTOR SET, OIL PUMP
15103-31050

2GRFE..GSU4#..ARL

 1
15104 - STRAINER SUB-ASSY, OIL
15104-31120

2GRFE..GSU4#..ARL

 1
15115 - COVER, OIL PUMP
15115-31040

2GRFE..GSU4#..ARL

 1
15131 - VALVE, OIL PUMP RELIEF
15131-17010

2GRFE..GSU4#..ARL

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

2GRFE..GSU4#..ARL

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-28020

2GRFE..GSU4#..ARL

 1
15147 - GASKET, OIL STRAINER
15147-31060

2GRFE..GSU4#..ARL

 1
15193 - GASKET, OIL PUMP
15193-31020

2GRFE..GSU4#..ARL

 1
Common parts
15183-10140
90126-06029
91551-80622
94151-80600
Linked diagrams
1105
