GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

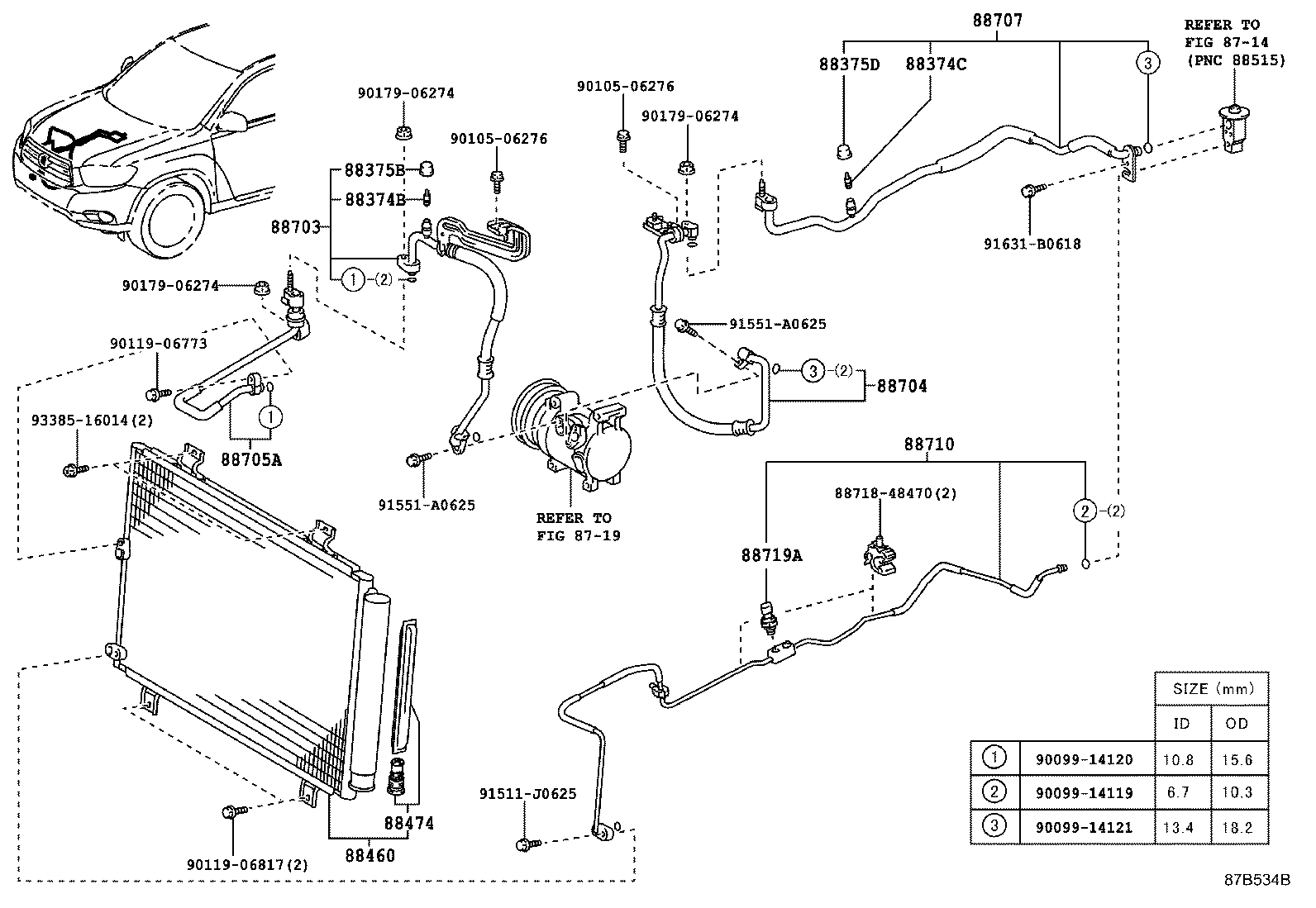

ILLUST NO. 1 OF 2(1007- )ARL

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88703 88704 88705A 88707 88710 8871848470 88719A 9009914119 9009914120 9009914121 9010506276 9010506276 9011906773 9011906817 9017906274 9017906274 9017906274 91511J0625 91551A0625 91551A0625 91631B0618 9338516014
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GSU4#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

GSU4#

 1
88460 - CONDENSER ASSY, COOLER
88460-48100

GSU4#

 1
88460-48101

GSU4#

 1
88474 - DRYER, COOLER
88474-17010

GSU4#..ARL

 1
88474-17010

GSU4#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-48151

GSU4#..ARL

 1
88703-48240

GSU4#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-48220

GSU4#

 1
88704-48120

GSU4#..ARL

 1
88705A - TUBE SUB-ASSY, DISCHARGE
88705-48100

GSU4#..ARL

 1
88705-48180

GSU4#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GSU4#

 1
88719-33020

GSU4#..ARL

 1
Common parts
88718-48470
90099-14119
90099-14120
90099-14121
90105-06276
90119-06773
90119-06817
90179-06274
91511-J0625
91551-A0625
91631-B0618
93385-16014
Linked diagrams
8714
8719

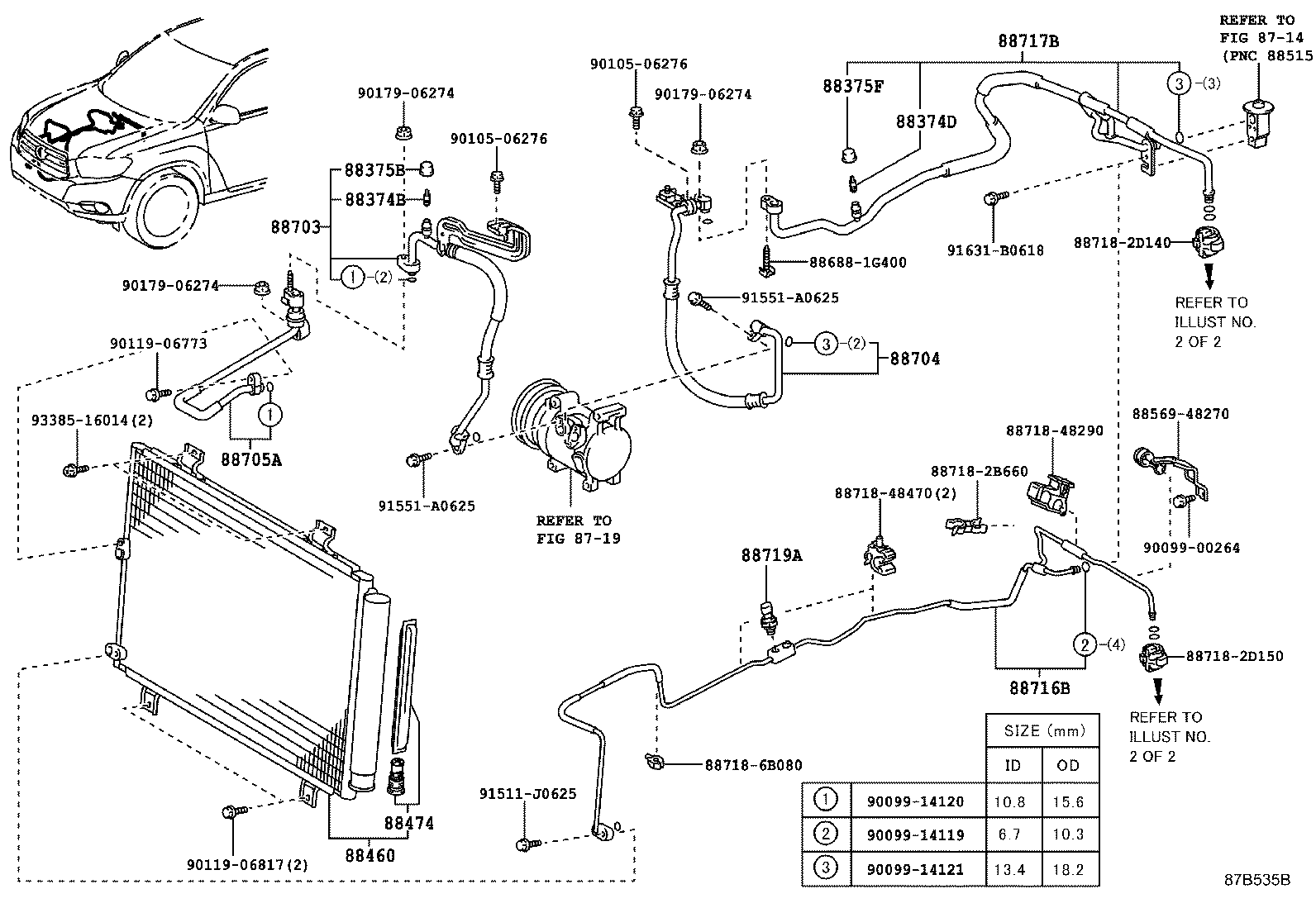

ILLUST NO. 1 OF 2(1007- )ARL

Click highlighted areas on diagram

FRONT,W(REAR AIR CONDITIONER)

diagram 8714 8719 88374B 88374D 88375B 88375F 88460 88474 8856948270 886881G400 88703 88704 88705A 88716B 88717B 887182B660 887182D140 887182D150 8871848290 8871848470 887186B080 88719A 9009900264 9009914119 9009914120 9009914121 9010506276 9010506276 9011906773 9011906817 9017906274 9017906274 9017906274 91511J0625 91551A0625 91551A0625 91631B0618 9338516014
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GSU4#

 1
88374D - VALVE, SERVICE NO.3
88374-30010

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

GSU4#

 1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
88460 - CONDENSER ASSY, COOLER
88460-48100

GSU4#

 1
88460-48101

GSU4#

 1
88474 - DRYER, COOLER
88474-17010

GSU4#..ARL

 1
88474-17010

GSU4#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-48151

GSU4#..ARL

 1
88703-48240

GSU4#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-48220

GSU4#

 1
88704-48120

GSU4#..ARL

 1
88705A - TUBE SUB-ASSY, DISCHARGE
88705-48100

GSU4#..ARL

 1
88705-48180

GSU4#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-48230

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88716-48370

GSU4#..GD

 1
88716-48240

GSU4#..ARL

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-48100

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88717-48190

GSU4#..GD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GSU4#

 1
88719-33020

GSU4#..ARL

 1
Common parts
88569-48270
88688-1G400
88718-2B660
88718-2D140
88718-2D150
88718-48290
88718-48470
88718-6B080
90099-00264
90099-14119
90099-14120
90099-14121
90105-06276
90119-06773
90119-06817
90179-06274
91511-J0625
91551-A0625
91631-B0618
93385-16014
Linked diagrams
8714
8719

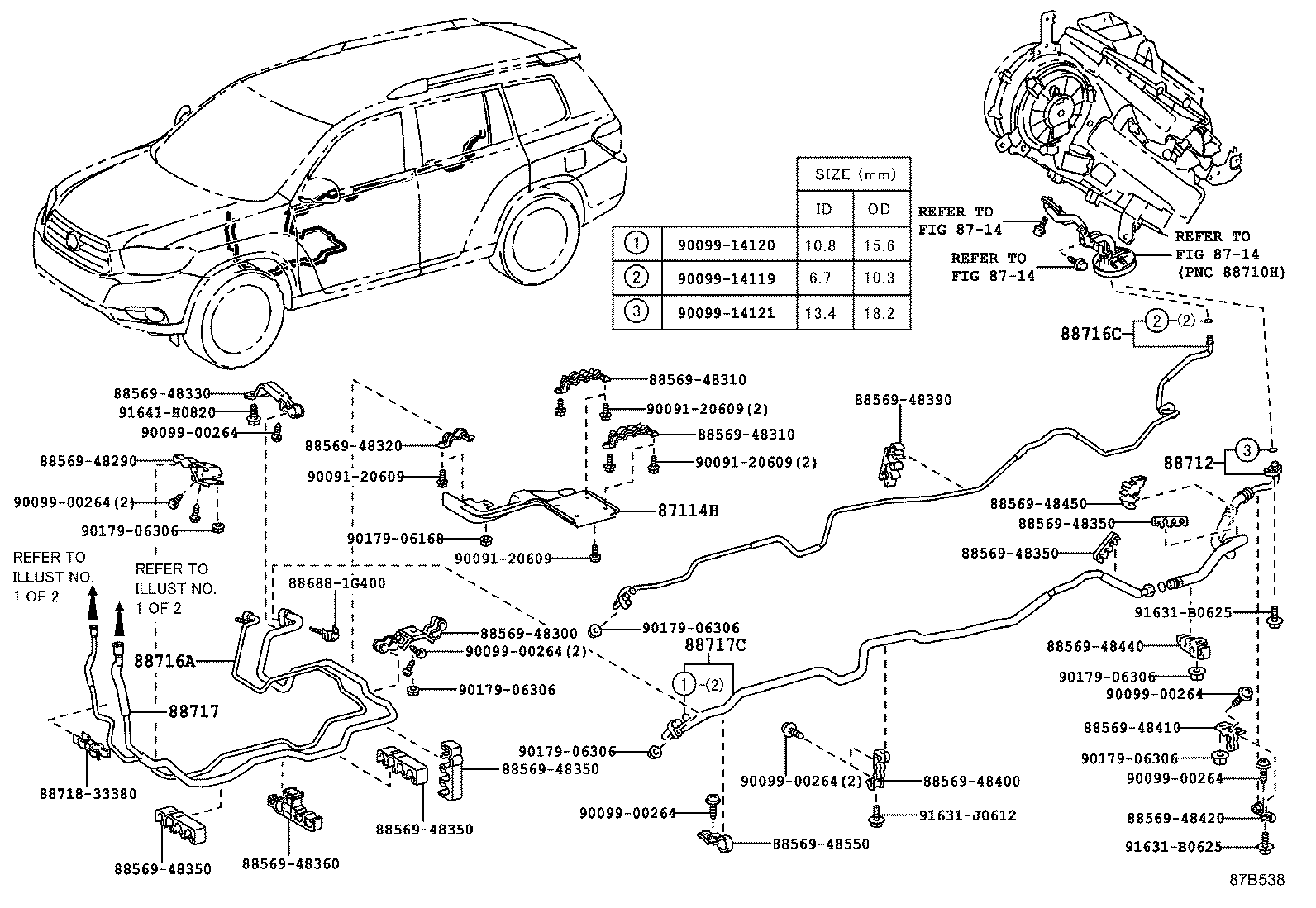

ILLUST NO. 2 OF 2(1007- )

Click highlighted areas on diagram

REAR,W(REAR AIR CONDITIONER)

diagram 87114H 8714 8714 8714 8856948290 8856948300 8856948310 8856948310 8856948320 8856948330 8856948350 8856948350 8856948350 8856948350 8856948350 8856948360 8856948390 8856948400 8856948410 8856948420 8856948440 8856948450 8856948550 886881G400 88712 88716A 88716C 88717 88717C 8871833380 9009120609 9009120609 9009120609 9009120609 9009900264 9009900264 9009900264 9009900264 9009900264 9009900264 9009900264 9009914119 9009914120 9009914121 9017906168 9017906306 9017906306 9017906306 9017906306 9017906306 9017906306 91631B0625 91631B0625 91631J0612 91641H0820
Part # Description Qty Price
87114H - COVER, HEATER
87114-48060

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
87114-48060

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-48240

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
88712-48240

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-48250

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88716-48250

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-48350

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
88716-48270

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-48120

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
88717-48120

GSU4#..ARL

WITH(REAR AUTO AIR CONDITIONER)

 1
88717-48110

GSU4#..ARL

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-48180

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
Common parts
88569-48290
88569-48300
88569-48310
88569-48320
88569-48330
88569-48350
88569-48360
88569-48390
88569-48400
88569-48410
88569-48420
88569-48440
88569-48450
88569-48550
88688-1G400
88718-33380
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
90179-06168
90179-06306
91631-B0625
91631-J0612
91641-H0820
Linked diagrams
8714
