GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )

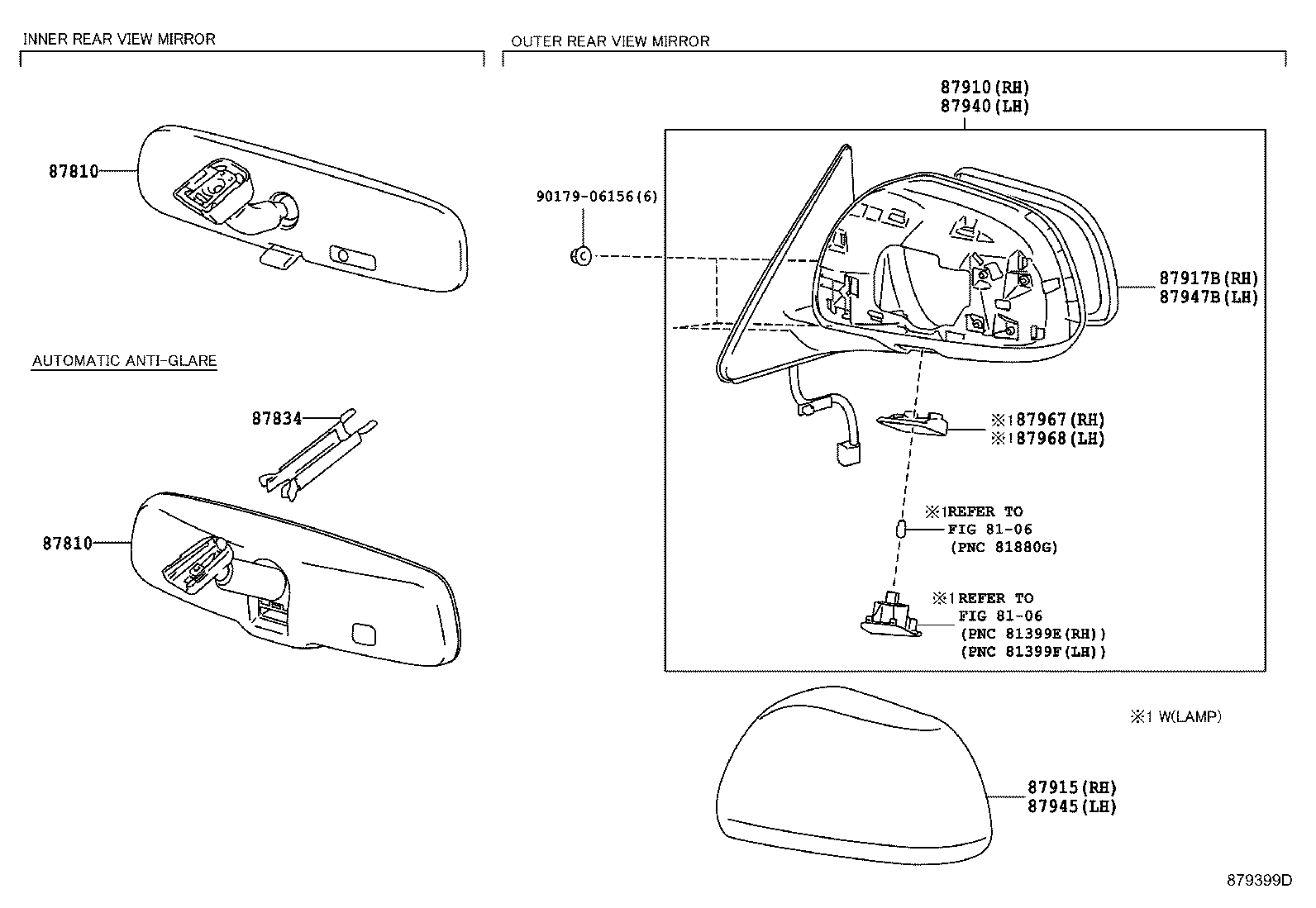

Click highlighted areas on diagram

diagram 8106 8106 87810 87810 87834 87910 87915 87917B 87940 87945 87947B 87967 87968 9017906156
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W061

GSU4#..GD

AUDIO-NAVIGATION 4CD-CHANGER 6SPEAKER *BT

 1
87810-0W160

GSU4#..GD

 1
87810-0W062

GSU4#..GD

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W061

GSU4#..GD

AUDIO-NAVIGATION 4CD-CHANGER 6SPEAKER *BT

 1
87810-0W160

GSU4#..GD

 1
87810-0W062

GSU4#..GD

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-AC010

GSU4#..GD

 1
87818-35020

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
87818-AC010

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-48370

GSU4#..ARL

NO PAINT REQ.

 1
87910-48210

GSU4#..ARL

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-48020D0

GSU4#

DK. RED M.M.,3Q3

 1
87915-48020C0

GSU4#

BLACK,202

 1
87915-48020B1

GSU4#

GRAY ME.,1G3

 1
87915-48020B0

GSU4#

SILVER ME.,1F7

 1
87915-48020E0

GSU4#

BEIGE ME.,4T8

 1
87915-48020E0

GSU4#

BEIGE ME.,4T8

 1
87915-48020A0

GSU4#

WHITE PEARL CS.,070

 1
87915-48020A0

GSU4#

WHITE PEARL CS.,070

 1
87915-48020B1

GSU4#

GRAY ME.,1G3

 1
87915-48020G0

GSU4#

OLIVE M.M.,6T7

 1
87915-48020D1

GSU4#

BLACKISH RED MC.,3R0

 1
87915-48020J1

GSU4#

BLUE ME.,8T7

 1
87915-48020J1

GSU4#

BLUE ME.,8T7

 1
87915-48020C0

GSU4#

BLACK,202

 1
87915-48020J3

GSU4#

DK.BLUE MC.,8S6

 1
87915-48020J0

GSU4#

LT.BLUE M.M.,8S7

 1
87915-48020J2

GSU4#

GRAYISH BLUE M.M.,8V5

 1
87915-48020B0

GSU4#

SILVER ME.,1F7

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87931-48370

GSU4#..ARL

 1
87931-28A60

GSU4#..ARL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-48550

GSU4#..ARL

NO PAINT REQ.

 1
87940-48350

GSU4#..ARL

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-48020B1

GSU4#

GRAY ME.,1G3

 1
87945-48020B0

GSU4#

SILVER ME.,1F7

 1
87945-48020C0

GSU4#

BLACK,202

 1
87945-48020A0

GSU4#

WHITE PEARL CS.,070

 1
87945-48020E0

GSU4#

BEIGE ME.,4T8

 1
87945-48020D0

GSU4#

DK. RED M.M.,3Q3

 1
87945-48020J0

GSU4#

LT.BLUE M.M.,8S7

 1
87945-48020G0

GSU4#

OLIVE M.M.,6T7

 1
87945-48020J1

GSU4#

BLUE ME.,8T7

 1
87945-48020E0

GSU4#

BEIGE ME.,4T8

 1
87945-48020J3

GSU4#

DK.BLUE MC.,8S6

 1
87945-48020J1

GSU4#

BLUE ME.,8T7

 1
87945-48020B0

GSU4#

SILVER ME.,1F7

 1
87945-48020A0

GSU4#

WHITE PEARL CS.,070

 1
87945-48020B1

GSU4#

GRAY ME.,1G3

 1
87945-48020J2

GSU4#

GRAYISH BLUE M.M.,8V5

 1
87945-48020D1

GSU4#

BLACKISH RED MC.,3R0

 1
87945-48020C0

GSU4#

BLACK,202

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87961-48350

GSU4#..ARL

 1
87961-28A60

GSU4#..ARL

 1
87967 - HOLDER, MIRROR, OUTER RH
87967-48010

GSU4#

 1
87968 - HOLDER, MIRROR, OUTER LH
87968-48010

GSU4#

 1
Common parts
90179-06156
Linked diagrams
8106
