GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )GSU40

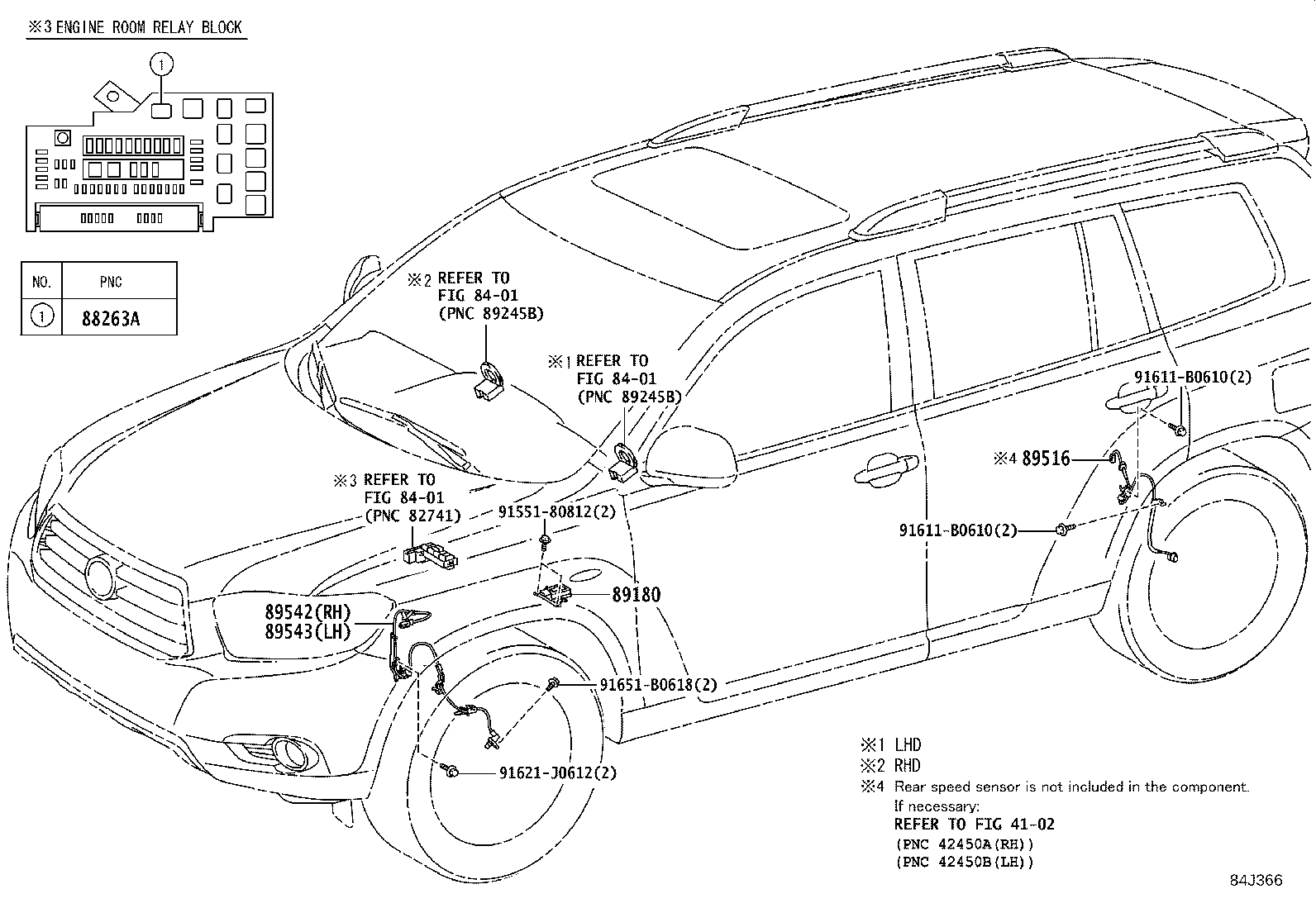

Click highlighted areas on diagram

diagram 4102 8401 8401 8401 88263A 89180 89516 89542 89543 9155180812 91611B0610 91611B0610 91621J0612 91651B0618
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
90987-04004

GSU4#

 1
90987-04004

GSU4#

 1
89180 - SENSOR ASSY, YAWRATE
89180-48050

GSU4#..ARL

 1
89180-48090

GSU4#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-48050

GSU40

RH

 1
89516-48060

GSU40..ARL

LH

 1
89516-48050

GSU40..ARL

RH

 1
89516-48060

GSU40

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-48040

GSU4#

 1
89542-48040

GSU4#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-48040

GSU4#

 1
89543-48040

GSU4#

 1
Common parts
91551-80812
91611-B0610
91621-J0612
91651-B0618
Linked diagrams
4102
8401
