GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(1007- )ARL

Click highlighted areas on diagram

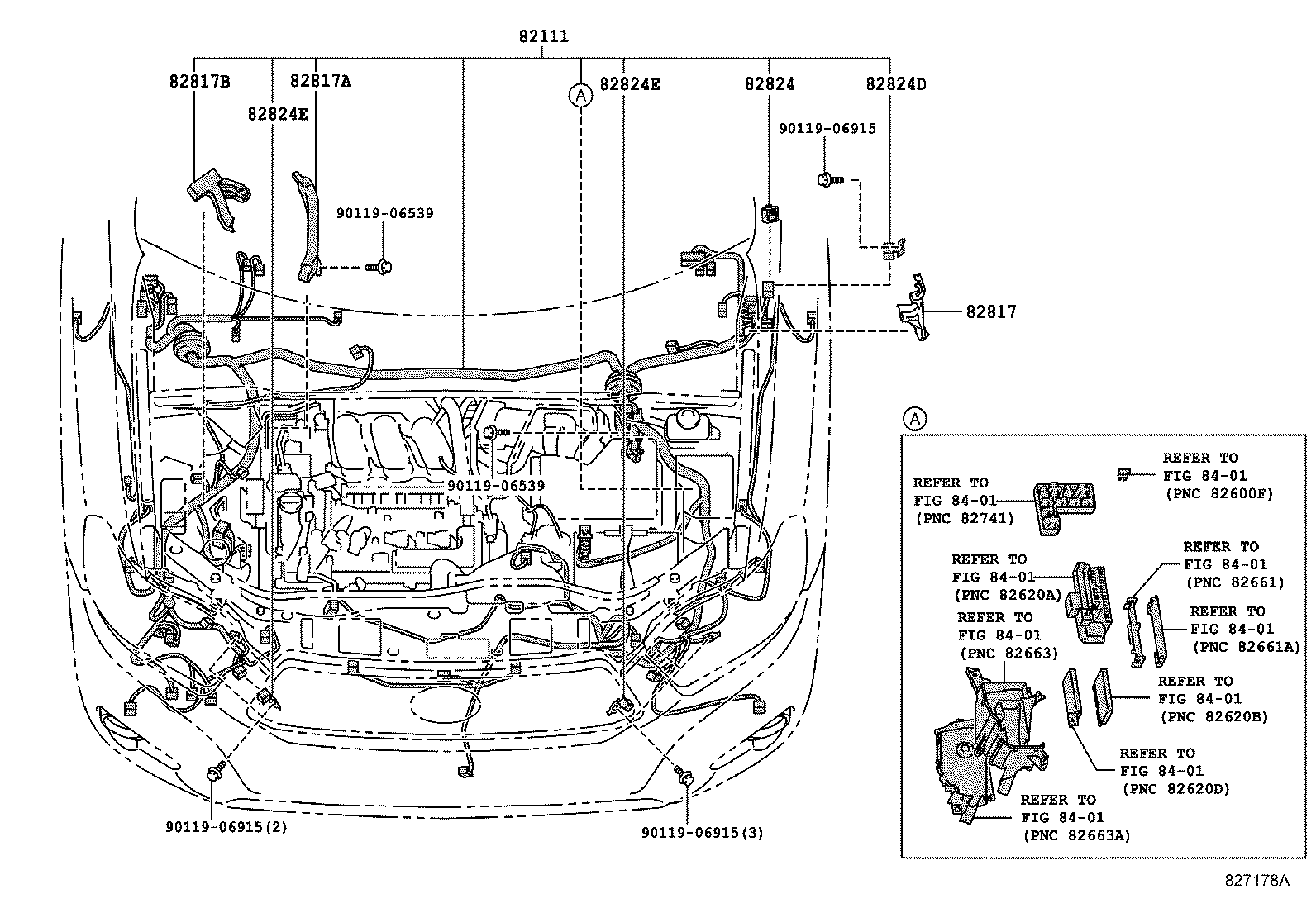

ENGINE ROOM

diagram 82111 82817 82817A 82817B 82824 82824D 82824E 82824E 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906539 9011906539 9011906915 9011906915 9011906915
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-48L80

GSU4#..GD

 1
82111-48S80

GSU4#..GD

 1
82111-48S81

GSU4#..GD

 1
82111-48S80

GSU4#..GD

PART NUMBER LABEL=82111-48S80

 1
82111-48S81

GSU4#..GD

PART NUMBER LABEL=82111-48S81

 1
82111-48L80

GSU4#..GD

PART NUMBER LABEL=82111-48L80

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-48A80

GSU4#..ARL

 1
82817-48A80

GSU4#

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-48A70

GSU4#..ARL

 1
82817-48A70

GSU4#..ARL

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-48B70

GSU4#

 1
82817-48B70

GSU4#..ARL

 1
82824 - CONNECTOR, WIRING HARNESS
82824-22070

GSU4#

 1
82824D - CONNECTOR, WIRING HARNESS
82824-48010

GSU4#

 1
82824E - CONNECTOR, WIRING HARNESS
82824-48020

GSU4#

 2
82824E - CONNECTOR, WIRING HARNESS
82824-48020

GSU4#

 2
Common parts
90119-06539
90119-06915
Linked diagrams
8401

ILLUST NO. 2 OF 9(1007- )ARL

Click highlighted areas on diagram

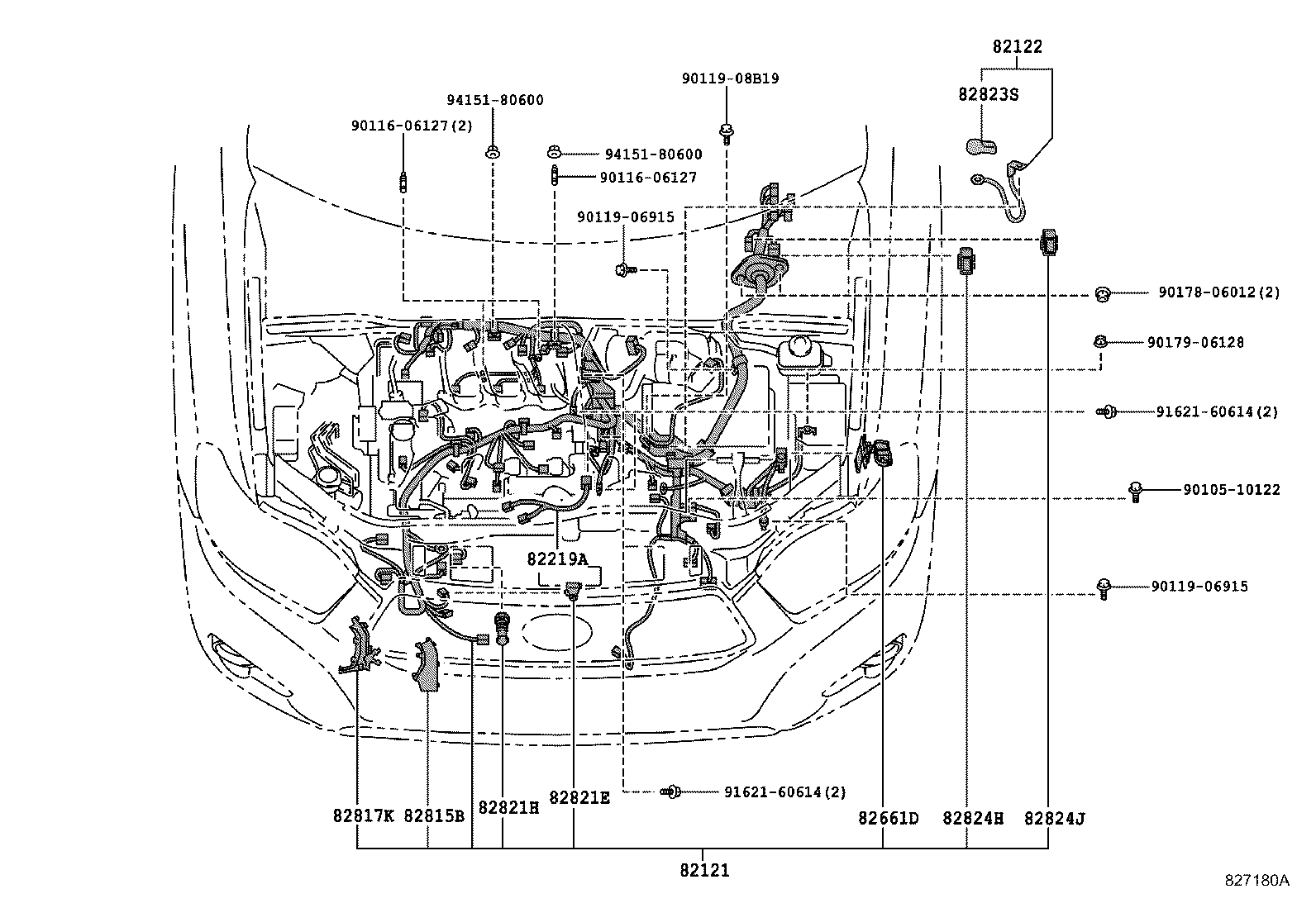

ENGINE

diagram 82121 82122 82219A 82661D 82815B 82817K 82821E 82821H 82823S 82824H 82824J 9010510122 9011606127 9011606127 9011906915 9011906915 9011908B19 9017806012 9017906128 9162160614 9162160614 9415180600 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-48510

GSU4#..ARL

 1
82121-48370

GSU4#..ARL

 1
82122 - WIRE, ENGINE, NO.2
82122-48050

GSU4#..ARL

 1
82122-48050

GSU4#

 1
82219A - WIRE, SENSOR
82219-41010

GSU4#..ARL

 1
82219-41010

GSU4#

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-48040

GSU4#

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-48560

GSU4#

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-48D00

GSU4#

 1
82821E - COVER, CONNECTOR
82821-20410

GSU4#

 1
82821H - COVER, CONNECTOR
82821-20370

GSU4#

 1
82823S - CAP, STARTER TERMINAL
82823-12090

GSU4#

 1
82823-12090

GSU4#

 1
82824H - CONNECTOR, WIRING HARNESS
82824-20110

GSU4#

 1
82824J - CONNECTOR, WIRING HARNESS
82824-50110

GSU4#

 1
Common parts
90105-10122
90116-06127
90119-06915
90119-08B19
90178-06012
90179-06128
91621-60614
94151-80600

ILLUST NO. 3 OF 9(1007- )ARL

Click highlighted areas on diagram

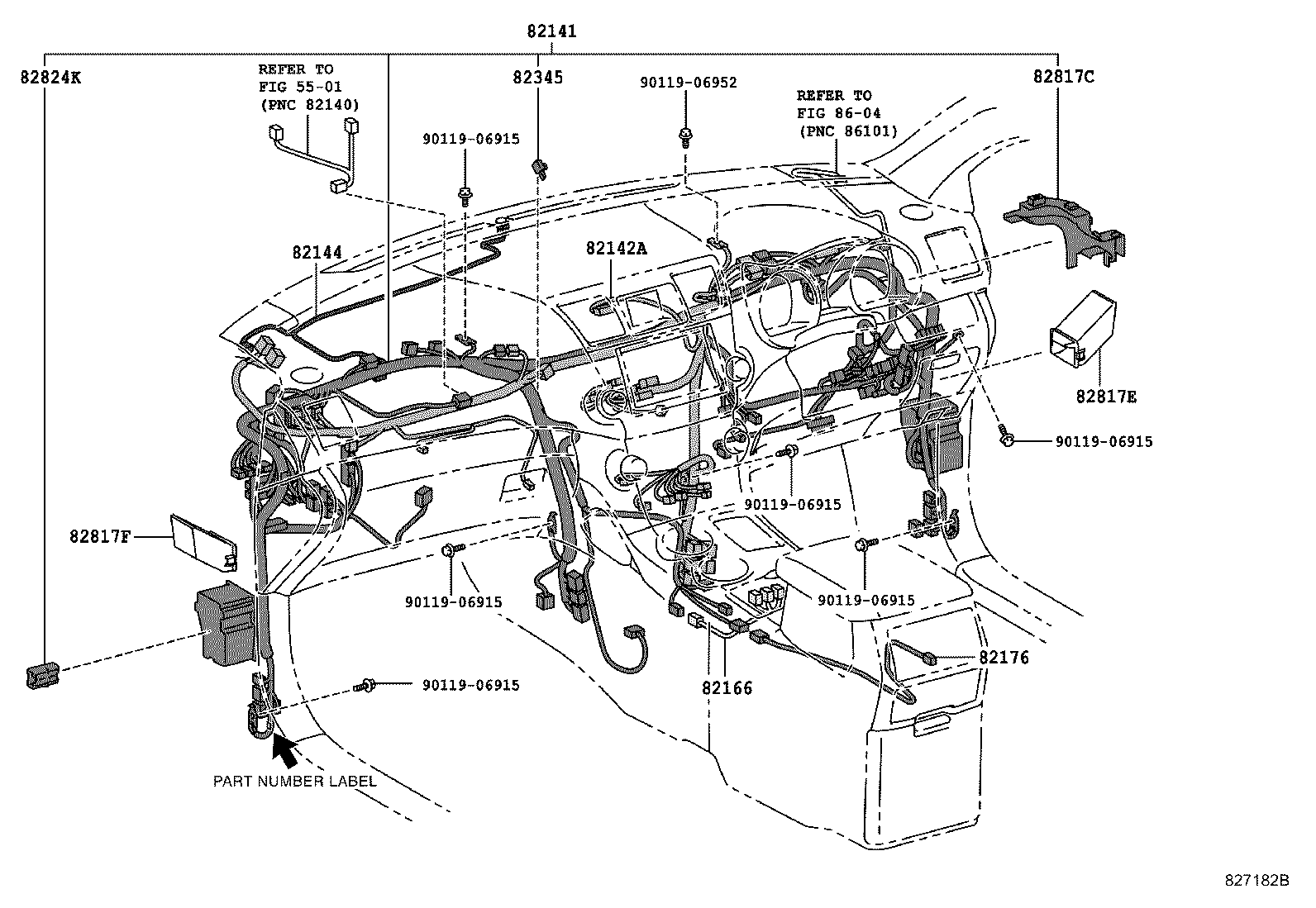

INSTRUMENT PANEL & CONSOLE BOX

diagram 5501 82141 82142A 82144 82166 82176 82345 82817C 82817E 82817F 82824K 8604 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 9011906952
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-48S50

GSU4#..GD

 1
82141-48S60

GSU4#..GD

WITH(REAR AUTO AIR CONDITIONER)

 1
82141-48Z90

GSU4#..GD

 1
82141-48S60

GSU4#..GD

PART NUMBER LABEL=82141-48S60

 1
82141-48Z90

GSU4#..GD

PART NUMBER LABEL=82141-48Z90

 1
82141-48S50

GSU4#..GD

PART NUMBER LABEL=82141-48S50

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-48650

GSU4#..GD

AUDIO-NAVIGATION 4CD-CHANGER 6SPEAKER *BT

 1
82142-48D90

GSU4#..GD

 1
82142-48640

GSU4#..GD

 1
82144 - WIRE, INSTRUMENT PANEL, NO.4
82144-48140

GSU4#..GD

 1
82144-48140

GSU4#..GD

 1
82166 - WIRE, CONSOLE BOX
82166-48010

GSU4#

 1
82166-48010

GSU4#

 1
82176 - WIRE, REAR CONSOLE BOX
82176-48020

GSU4#..GD

WITH(REAR AUTO AIR CONDITIONER)

 1
82176-48020

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
82345 - DIODE
82345-32010

GSU4#

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-48B30

GSU4#..ARL

 1
82817-48B30

GSU4#..ARL

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-48A20

GSU4#..ARL

 1
82817-48A20

GSU4#

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-48A20

GSU4#

 1
82817-48A20

GSU4#..ARL

 1
82824K - CONNECTOR, WIRING HARNESS
82824-44020

GSU4#

 1
Common parts
90119-06915
90119-06952
Linked diagrams
5501
8604
