GSU40R-BRAGKQ (2010)
Toyota Highlander/Kluger
Production
Jul 2010
-
Dec 2013
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1007- )

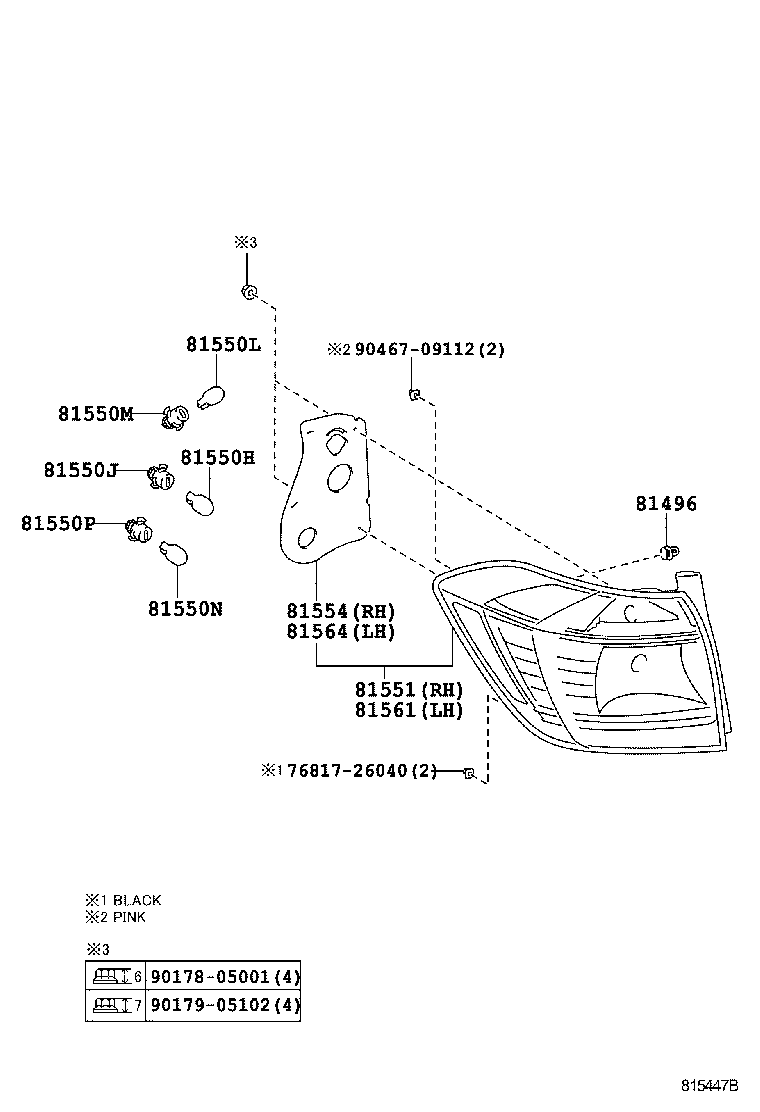

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-48010 |
GSU4#..ARL |
2 | ||
| 81496-48010 |
GSU4# |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
GSU4# |
2 | ||
| 90981-13044 |
GSU4#..ARL |
2 | ||
| 81550J - SOCKET, TAIL & STOP LAMP | ||||
| 90075-60002 |
GSU4# |
2 | ||
| 90075-60079 |
GSU4#..ARL |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-13043 |
GSU4#..ARL |
2 | ||
| 90981-15021 |
GSU4# |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 90075-60070 |
GSU4#..ARL |
2 | ||
| 90075-60026 |
GSU4# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GSU4#..ARL |
2 | ||
| 90981-11059 |
GSU4# |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-60063 |
GSU4#..ARL |
2 | ||
| 90075-60063 |
GSU4# |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-48280 |
GSU4# |
1 | ||
| 81551-48180 |
GSU4#..ARL |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-48280 |
GSU4# |
1 | ||
| 81554-48160 |
GSU4#..ARL |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-48280 |
GSU4# |
1 | ||
| 81561-48180 |
GSU4#..ARL |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-48160 |
GSU4#..ARL |
1 | ||
| 81564-48280 |
GSU4# |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90178-05001 | ||||
| 90179-05102 | ||||
| 90467-09112 | ||||
