GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )

Click highlighted areas on diagram

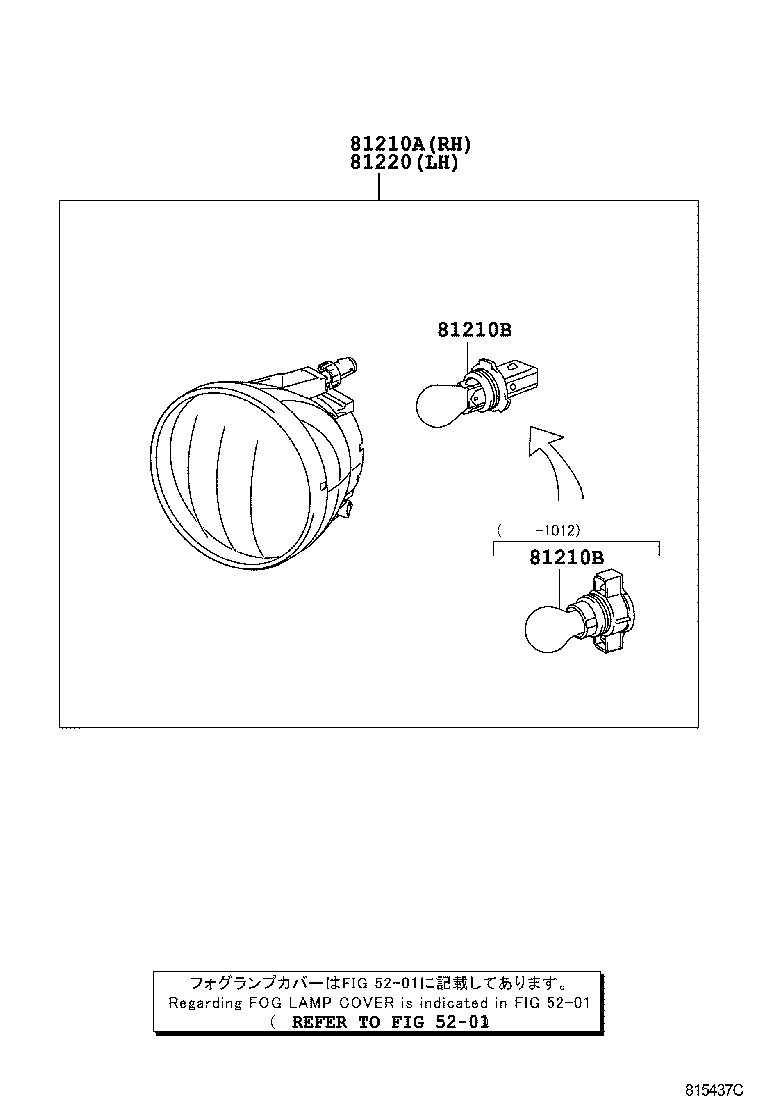

diagram 5201 81210A 81210B 81210B 81220
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0E021

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
81210-0D041

GSU40..CHI;GSU4#..GD,LIMD,SPO

 1
81210-0E030

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
81210-0E022

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
81210B - BULB, FOG LAMP
90981-AD011

GSU4#..GD,LIMD;GSU45..STD..RUS

12V 26W

 2
90981-13081

GSU40..CHI;GSU4#..GD,LIMD,SPO

12V 55W,HALOGEN,OSRAM

 2
90981-13075

GSU40..CHI;GSU4#..GD,LIMD,SPO

12V 55W,HALOGEN,PHILIPS

 2
90981-WD015

GSU4#..GD,LIMD;GSU45..STD..RUS

12V 24W

 2
81210B - BULB, FOG LAMP
90981-AD011

GSU4#..GD,LIMD;GSU45..STD..RUS

12V 26W

 2
90981-13081

GSU40..CHI;GSU4#..GD,LIMD,SPO

12V 55W,HALOGEN,OSRAM

 2
90981-13075

GSU40..CHI;GSU4#..GD,LIMD,SPO

12V 55W,HALOGEN,PHILIPS

 2
90981-WD015

GSU4#..GD,LIMD;GSU45..STD..RUS

12V 24W

 2
81220 - LAMP ASSY, FOG, LH
81220-0D041

GSU40..CHI;GSU4#..GD,LIMD,SPO

 1
81210-0E030

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
81210-0E021

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
81210-0E022

GSU4#..GD,LIMD;GSU45..STD..RUS

 1
Linked diagrams
5201
