GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )

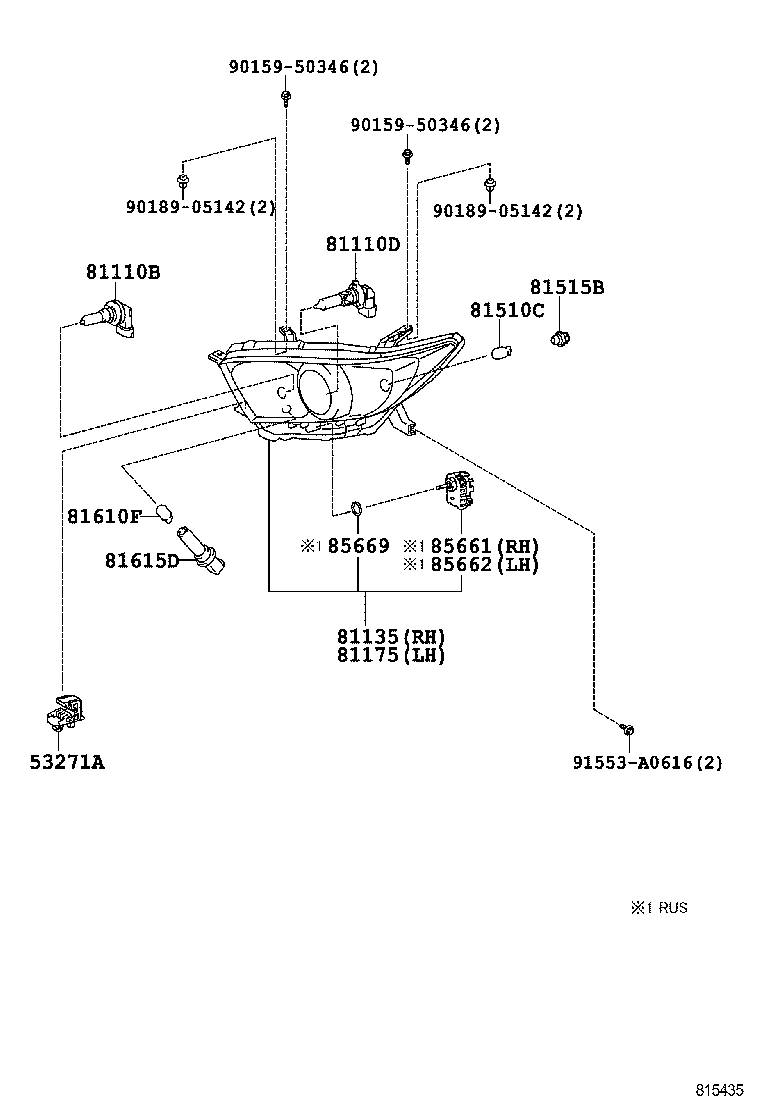

Click highlighted areas on diagram

diagram 53271A 81110B 81110D 81135 81175 81510C 81515B 81610F 81615D 85661 85662 85669 9015950346 9015950346 9018905142 9018905142 91553A0616
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

GSU4#

 2
53271-12060

GSU4#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

GSU4#..ARL

12V 60/55W,HALOGEN

 2
90981-13046

GSU4#

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

GSU4#

12V 55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-48A20

GSU4#..ARL

 1
81130-48500

GSU4#..ARL

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-48490

GSU4#..ARL

 1
81170-48A20

GSU4#..ARL

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

GSU4#..ARL

12V 21W,AMBER

 2
90981-15021

GSU4#

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

GSU4#

 2
90075-60028

GSU4#..ARL

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GSU4#

12V 5W

 2
99132-12050

GSU4#..ARL

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

GSU4#

 2
Common parts
90159-50346
90189-05142
91553-A0616
