GSU40R-BRAGKQ (2010)

Toyota Highlander/Kluger

Production Jul 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )

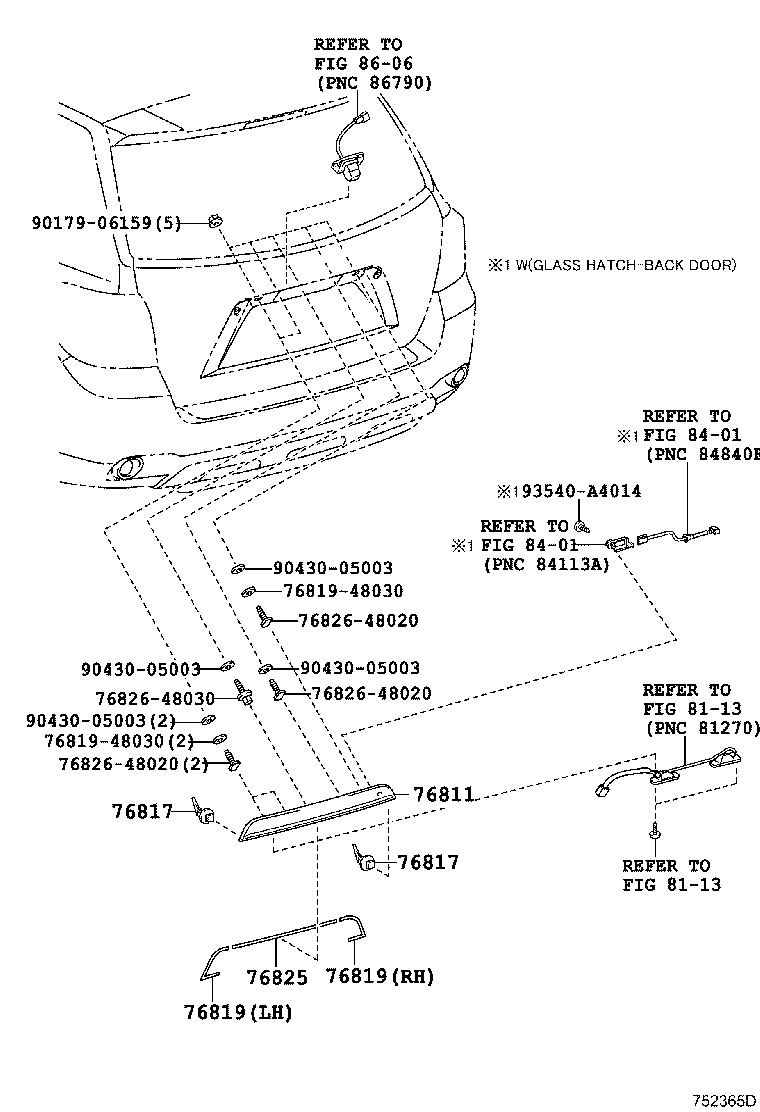

Click highlighted areas on diagram

diagram 76811 76817 76817 76819 76819 7681948030 7681948030 76825 7682648020 7682648020 7682648020 7682648030 8113 8113 8401 8401 8606 9017906159 9043005003 9043005003 9043005003 9043005003 93540A4014
Part # Description Qty Price
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-48260

GSU4#..ARL

 1
76811-48240

GSU4#..ARL

NEW ZEALAND SPEC

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

GSU4#

 2
76817-50010

GSU4#

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

GSU4#

 2
76817-50010

GSU4#

 2
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-48020

GSU4#

RH

 1
76829-48020

GSU4#

LH

 1
76829-48010

GSU4#..ARL

LH

 1
76819-48010

GSU4#..ARL

RH

 1
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-48020

GSU4#

RH

 1
76829-48020

GSU4#

LH

 1
76829-48010

GSU4#..ARL

LH

 1
76819-48010

GSU4#..ARL

RH

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-48040

GSU4#..ARL

 1
76825-48060

GSU4#

 1
Common parts
76819-48030
76826-48020
76826-48030
90179-06159
90430-05003
93540-A4014
Linked diagrams
8113
8401
8606
