GSU40R-BRAGKQ (2010)
Toyota Highlander/Kluger

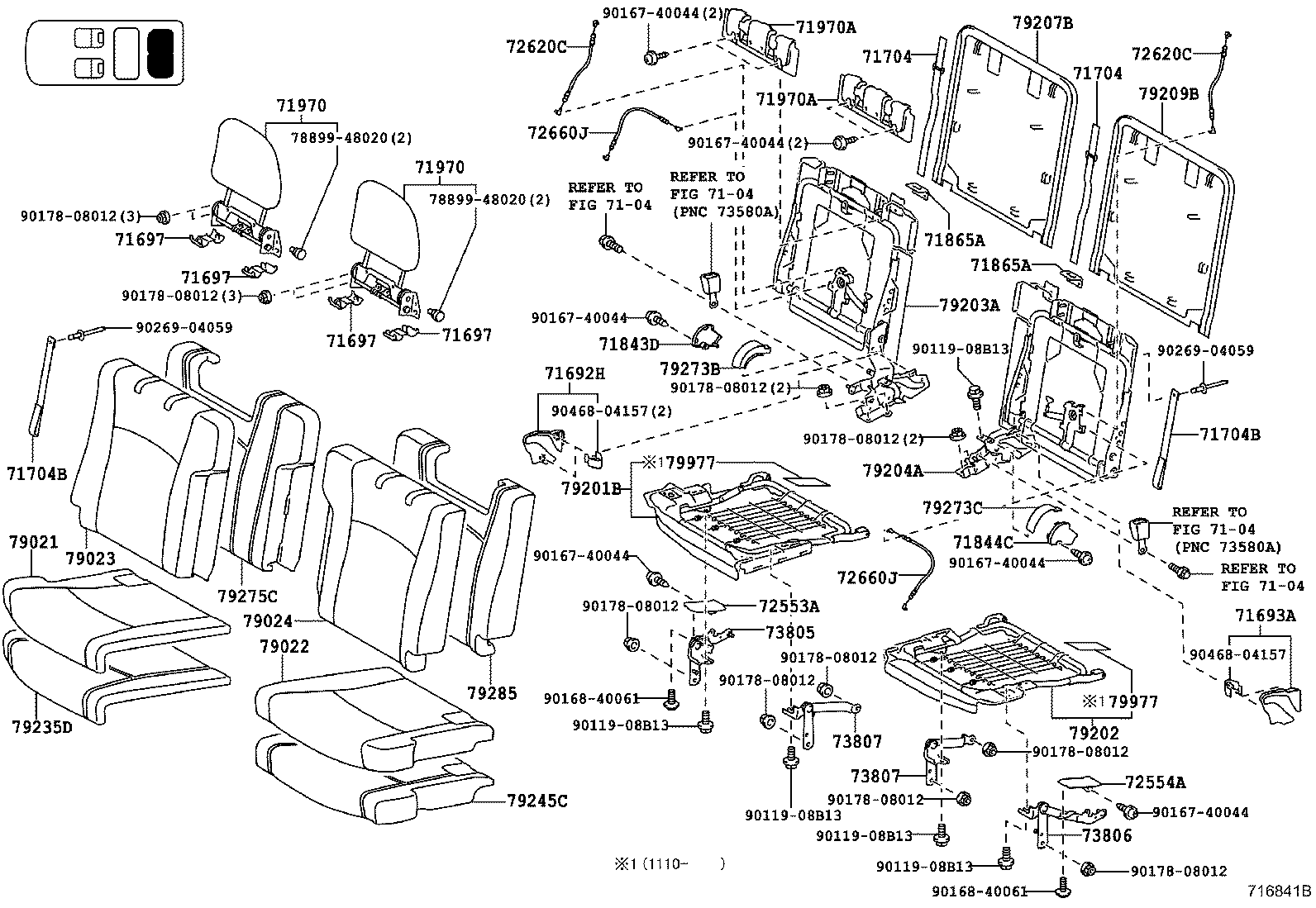

ILLUST NO. 1 OF 2(1007- )
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-48010 |
GSU4# |
2 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71694-48010 |
GSU4# |
2 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
GSU4# |
4 | ||
| 71697-48030 |
GSU4# |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
GSU4# |
4 | ||
| 71697-48030 |
GSU4# |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
GSU4# |
4 | ||
| 71697-48030 |
GSU4# |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
GSU4# |
4 | ||
| 71697-48030 |
GSU4# |
4 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71704-48020A0 |
GSU4# IVORY,TRIM4# |
2 | ||
| 71704-48020C2 |
GSU4# BLACK,TRIM2# |
2 | ||
| 71704-48020C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71704-48020A0 |
GSU4# IVORY,TRIM4# |
2 | ||
| 71704-48020C2 |
GSU4# BLACK,TRIM2# |
2 | ||
| 71704-48020C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-48030C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71704-48040C0 |
GSU4# BLACK,TRIM2# |
2 | ||
| 71704-48040A0 |
GSU4# IVORY,TRIM4# |
2 | ||
| 71704-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-48030C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71704-48040C0 |
GSU4# BLACK,TRIM2# |
2 | ||
| 71704-48040A0 |
GSU4# IVORY,TRIM4# |
2 | ||
| 71704-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-48040B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 71843-48040C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 71843-48040E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71843-48020C2 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-48040E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71844-48040B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 71844-48040C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 71865A - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-48030C0 |
GSU4# BLACK,TRIM2# |
2 | ||
| 71865-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71865-48030C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71865-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 71865A - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-48030C0 |
GSU4# BLACK,TRIM2# |
2 | ||
| 71865-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71865-48030C0 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71865-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-48050C1 |
GSU4#..GD,LIMD BLACK,TRIM2# |
2 | ||
| 71970-48050E1 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
2 | ||
| 71970-48080C0 |
GSU4#..GD,LIMD BLACK,TRIM2# |
2 | ||
| 71970-48080E0 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-48050C1 |
GSU4#..GD,LIMD BLACK,TRIM2# |
2 | ||
| 71970-48050E1 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
2 | ||
| 71970-48080C0 |
GSU4#..GD,LIMD BLACK,TRIM2# |
2 | ||
| 71970-48080E0 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
2 | ||
| 71970A - COVER, REAR SEAT HEADREST | ||||
| 72985-48010 |
GSU4# |
2 | ||
| 72985-48030 |
GSU4# |
2 | ||
| 71970A - COVER, REAR SEAT HEADREST | ||||
| 72985-48010 |
GSU4# |
2 | ||
| 72985-48030 |
GSU4# |
2 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-48090B3 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 72553-48090E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72553-48090C2 |
GSU4# BLACK,TRIM2# |
1 | ||
| 72553-48090E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72553-48090C2 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-48080E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72554-48080B3 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 72554-48080E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72554-48080C2 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 72554-48080C2 |
GSU4# BLACK,TRIM2# |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48110 |
GSU4# |
2 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48110 |
GSU4# |
2 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-48010 |
GSU4# |
1 | ||
| 72660-48020 |
GSU4# |
2 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-48010 |
GSU4# |
1 | ||
| 72660-48020 |
GSU4# |
2 | ||
| 73805 - LINK SUB-ASSY, REAR SEAT SUSPENSION, OUTER RH | ||||
| 73805-48010 |
GSU4# |
1 | ||
| 73806 - LINK SUB-ASSY, REAR SEAT SUSPENSION, OUTER LH | ||||
| 73806-48010 |
GSU4# |
1 | ||
| 73807 - LINK SUB-ASSY, REAR SEAT SUSPENSION, INNER | ||||
| 73807-48010 |
GSU4# |
2 | ||
| 73807 - LINK SUB-ASSY, REAR SEAT SUSPENSION, INNER | ||||
| 73807-48010 |
GSU4# |
2 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-48090E0 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79021-48090C0 |
GSU4#..GD,LIMD BLACK,TRIM2# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-48030C0 |
GSU4#..GD,LIMD BLACK,TRIM2# |
1 | ||
| 79022-48030E0 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-48090C0 |
GSU4#..GD,LIMD BLACK,TRIM2# |
1 | ||
| 79023-48090E0 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-48030C0 |
GSU4#..GD,LIMD BLACK,TRIM2# |
1 | ||
| 79024-48030E0 |
GSU4#..GD,LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-48031 |
GSU4# |
1 | ||
| 79201-48030 |
GSU4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-48010 |
GSU4# |
1 | ||
| 79202-48011 |
GSU4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-48030 |
GSU4# |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79203-48040 |
GSU4# |
1 | ||
| 79207B - BOARD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79207-48030B0 |
GSU4#..ARL LT.GRAY,TRIM1# |
1 | ||
| 79207-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79207-48030C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79207-48031C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79207-48031E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79207-48040B0 |
GSU4#..ARL LT.GRAY,TRIM1# |
1 | ||
| 79207-48040E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79207-48040C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-48040 |
GSU4# |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79235-48050 |
GSU4# |
1 | ||
| 79273B - COVER, NO.2 SEAT HINGE, NO.3 | ||||
| 79273-48030C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79273-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79273-48030B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 79273C - COVER, NO.2 SEAT HINGE, NO.4 | ||||
| 79273-48040B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 79273-48040C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79273-48040E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-48040 |
GSU4# |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79275-48050 |
GSU4# |
1 | ||
| 79977 - FELT, SEAT BACK | ||||
| 79977-48020 |
GSU4# |
2 | ||
| 79977 - FELT, SEAT BACK | ||||
| 79977-48020 |
GSU4# |
2 | ||
| Common parts | ||||
| 78899-48020 | ||||
| 90119-08B13 | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 90178-08012 | ||||
| 90269-04059 | ||||
| 90468-04157 | ||||
| Linked diagrams | ||||
| 7104 | ||||

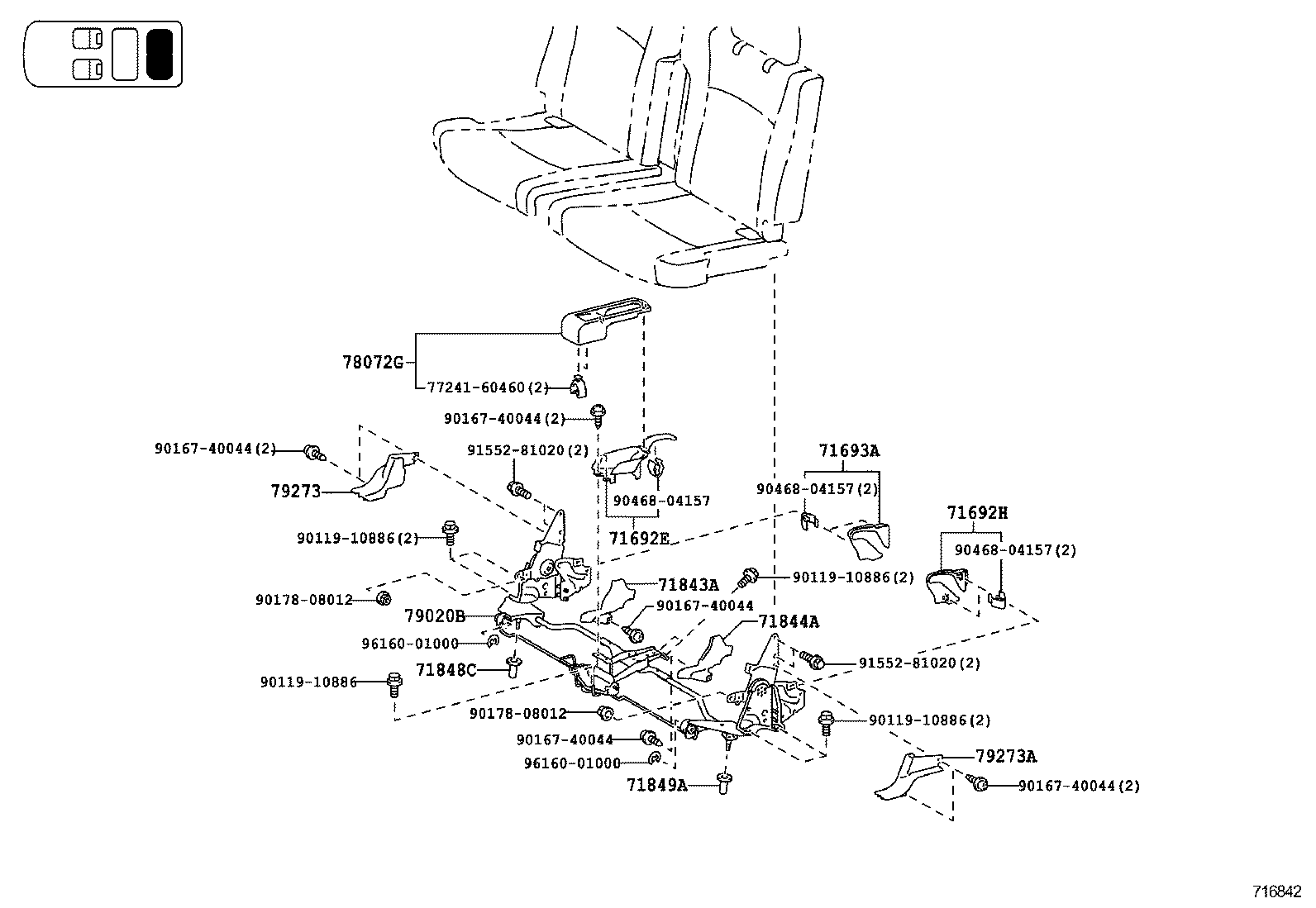

ILLUST NO. 2 OF 2(1007- )
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-48020B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 71692-48020E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71692-48020C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-48010 |
GSU4# |
2 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71694-48010 |
GSU4# |
2 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71843-48030B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 71843-48030C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-48030C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 71844-48030B0 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 71844-48030E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71844-48020C2 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
GSU4# |
1 | ||
| 71848-33010 |
GSU4# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
GSU4# |
1 | ||
| 71848-33010 |
GSU4# |
1 | ||
| 78072G - COVER SUB-ASSY, CENTER SUB SEAT CUSHION | ||||
| 78072-48010C0 |
GSU4# BLACK,TRIM2# |
1 | ||
| 78072-48010E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79020B - LEG ASSY, NO.2 SEAT | ||||
| 79030-48010 |
GSU4# |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-48010C2 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79273-48010E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79273-48010B3 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 79273-48010E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79273-48010C2 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 79273A - COVER, NO.2 SEAT HINGE, NO.2 | ||||
| 79273-48020E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79273-48020C2 |
GSU4# BLACK,TRIM2# |
1 | ||
| 79273-48020C2 |
GSU45;GSU40..ARL BLACK,TRIM2# |
1 | ||
| 79273-48020B3 |
GSU4#..ARL GRAY,TRIM1# |
1 | ||
| 79273-48020E3 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 77241-60460 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 90468-04157 | ||||
| 91552-81020 | ||||
| 96160-01000 | ||||
