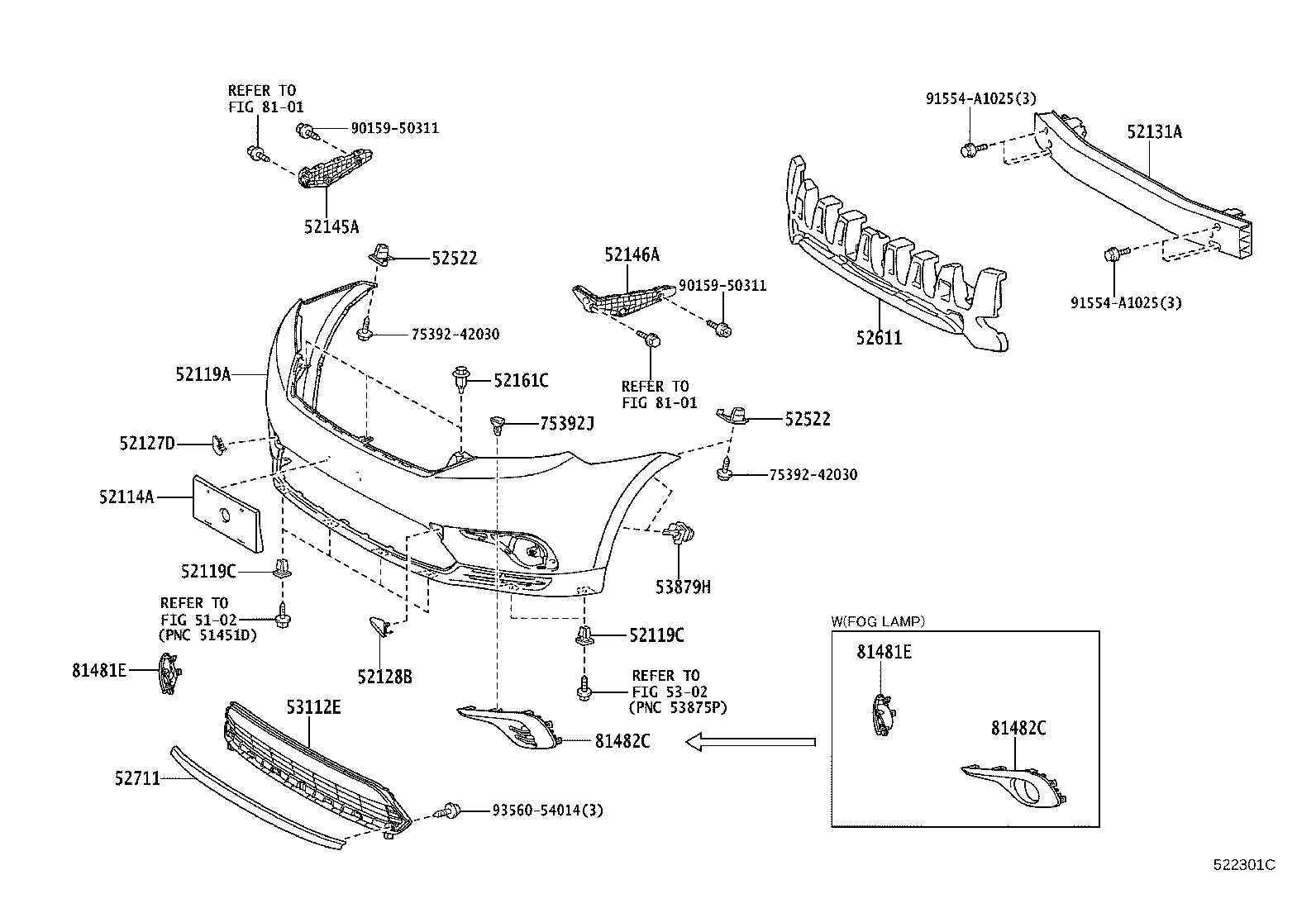

Toyota Highlander/kluger GSU40 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-48250	GSU4#..ARL	07/2010 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-48937	GSU4#..ARL PAINT REQ.	05/2007 - 07/2010	1
52119-48962	GSU4# PAINT REQ.	07/2010 - 12/2999	1
52119C - CLIP, FRONT BUMPER COVER
90467-09230	GSU4#	07/2010 - 12/2013	8
90467-05114	GSU4#	05/2007 - 07/2010	7
52119C - CLIP, FRONT BUMPER COVER
90467-09230	GSU4#	07/2010 - 12/2013	8
90467-05114	GSU4#	05/2007 - 07/2010	7
52127D - COVER, FRONT BUMPER HOLE, RH
52127-48911	GSU4#	07/2010 - 12/2999	1
52127-48906	GSU4#..ARL	05/2007 - 07/2010	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-48904	GSU4#..ARL	05/2007 - 07/2010	1
52128-48907	GSU4#	07/2010 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-48100	GSU4#	07/2010 - 12/2999	1
52131-48100	GSU4#	05/2007 - 07/2010	1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-48030	GSU4#..ARL	05/2007 - 07/2010	1
52145-48020	GSU4#	07/2010 - 12/2999	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-48030	GSU4#	07/2010 - 12/2999	1
52146-48020	GSU4#..ARL	05/2007 - 07/2010	1
52161C - PIECE, FRONT BUMPER
52161-16010	GSU4#..ARL	05/2007 - 07/2010	1
52161-16010	GSU4#	07/2010 - 12/2999	3
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-48010	GSU4#	07/2010 - 12/2999	2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-48010	GSU4#	07/2010 - 12/2999	2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-48090	GSU4#..ARL	05/2007 - 07/2010	1
52611-48110	GSU4#	07/2010 - 12/2999	1
52711 - MOULDING, FRONT BUMPER
52711-48040	GSU4#..ARL PLATED	07/2010 - 04/2012	1
52711-48041	GSU4#..ARL PLATED	05/2012 - 12/2999	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-48050	GSU4# NO PAINT REQ.	07/2010 - 12/2999	1
53879H - RETAINER, FRONT FENDER LINER
53879-28010	GSU4#	05/2007 - 07/2010	2
53879-28010	GSU4#	07/2010 - 12/2013	4
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GSU4#	07/2010 - 12/2999	2
81481E - COVER, FOG LAMP, RH
81481-48040B0	GSU40..CHI;GSU4#..GD,LIMD,SPO SILVER ME.,1F7	05/2007 - 07/2010	1
81481-48040A0	GSU40..CHI;GSU4#..GD,LIMD,SPO WHITE PEARL CS.,070	05/2007 - 07/2010	1
81481-48040B1	GSU40..CHI;GSU4#..GD,LIMD,SPO GRAY ME.,1G3	05/2007 - 07/2010	1
81481-48040C0	GSU40..CHI;GSU4#..GD,LIMD,SPO BLACK,202	05/2007 - 07/2010	1
81481-48040E0	GSU40..CHI;GSU4#..GD,LIMD,SPO BEIGE ME.,4T8	05/2007 - 07/2010	1
81481-48040J0	GSU40..CHI;GSU4#..GD,LIMD,SPO LT.BLUE M.M.,8S7	05/2007 - 07/2010	1
81481-48040D0	GSU40..CHI;GSU4#..GD,LIMD,SPO DK. RED M.M.,3Q3	05/2007 - 07/2010	1
81481-48110	GSU4#..GD,LIMD;GSU45..STD..RUS	07/2010 - 12/2999	1
81481-48040G0	GSU40..CHI;GSU4#..GD,LIMD,SPO OLIVE M.M.,6T7	05/2007 - 07/2010	1
81481-48040J1	GSU40..CHI;GSU4#..GD,LIMD,SPO BLUE ME.,8T7	05/2007 - 07/2010	1
81481E - COVER, FOG LAMP, RH
81481-48040B0	GSU40..CHI;GSU4#..GD,LIMD,SPO SILVER ME.,1F7	05/2007 - 07/2010	1
81481-48040A0	GSU40..CHI;GSU4#..GD,LIMD,SPO WHITE PEARL CS.,070	05/2007 - 07/2010	1
81481-48040B1	GSU40..CHI;GSU4#..GD,LIMD,SPO GRAY ME.,1G3	05/2007 - 07/2010	1
81481-48040C0	GSU40..CHI;GSU4#..GD,LIMD,SPO BLACK,202	05/2007 - 07/2010	1
81481-48040E0	GSU40..CHI;GSU4#..GD,LIMD,SPO BEIGE ME.,4T8	05/2007 - 07/2010	1
81481-48040J0	GSU40..CHI;GSU4#..GD,LIMD,SPO LT.BLUE M.M.,8S7	05/2007 - 07/2010	1
81481-48040D0	GSU40..CHI;GSU4#..GD,LIMD,SPO DK. RED M.M.,3Q3	05/2007 - 07/2010	1
81481-48110	GSU4#..GD,LIMD;GSU45..STD..RUS	07/2010 - 12/2999	1
81481-48040G0	GSU40..CHI;GSU4#..GD,LIMD,SPO OLIVE M.M.,6T7	05/2007 - 07/2010	1
81481-48040J1	GSU40..CHI;GSU4#..GD,LIMD,SPO BLUE ME.,8T7	05/2007 - 07/2010	1
81482C - COVER, FOG LAMP, LH
81482-48050A0	GSU4#..GD WHITE PEARL CS.,070	05/2007 - 07/2010	1
81482-48050B0	GSU4#..GD SILVER ME.,1F7	05/2007 - 07/2010	1
81482-48050J0	GSU4#..GD LT.BLUE M.M.,8S7	05/2007 - 07/2010	1
81482-48050B1	GSU4#..GD GRAY ME.,1G3	05/2007 - 07/2010	1
81482-48050D0	GSU4#..GD DK. RED M.M.,3Q3	05/2007 - 07/2010	1
81482-48050C0	GSU4#..GD BLACK,202	05/2007 - 07/2010	1
81482-48050J1	GSU4#..GD BLUE ME.,8T7	05/2007 - 07/2010	1
81482-48110	GSU4#..GD,LIMD;GSU45..STD..RUS	07/2010 - 12/2999	1
81482-48050G0	GSU4#..GD OLIVE M.M.,6T7	05/2007 - 07/2010	1
81482-48050E0	GSU4#..GD BEIGE ME.,4T8	05/2007 - 07/2010	1
81482C - COVER, FOG LAMP, LH
81482-48050A0	GSU4#..GD WHITE PEARL CS.,070	05/2007 - 07/2010	1
81482-48050B0	GSU4#..GD SILVER ME.,1F7	05/2007 - 07/2010	1
81482-48050J0	GSU4#..GD LT.BLUE M.M.,8S7	05/2007 - 07/2010	1
81482-48050B1	GSU4#..GD GRAY ME.,1G3	05/2007 - 07/2010	1
81482-48050D0	GSU4#..GD DK. RED M.M.,3Q3	05/2007 - 07/2010	1
81482-48050C0	GSU4#..GD BLACK,202	05/2007 - 07/2010	1
81482-48050J1	GSU4#..GD BLUE ME.,8T7	05/2007 - 07/2010	1
81482-48110	GSU4#..GD,LIMD;GSU45..STD..RUS	07/2010 - 12/2999	1
81482-48050G0	GSU4#..GD OLIVE M.M.,6T7	05/2007 - 07/2010	1
81482-48050E0	GSU4#..GD BEIGE ME.,4T8	05/2007 - 07/2010	1
Common parts
75392-42030
90159-50311
91554-A1025
93560-54014
Linked diagrams
5102
5302
8101

GSU40R-BRAGKQ (2010)

(1007- )
