GSU40L-BRANKC (2007)
Toyota Highlander/Kluger
ILLUST NO. 1 OF 5(0705- )

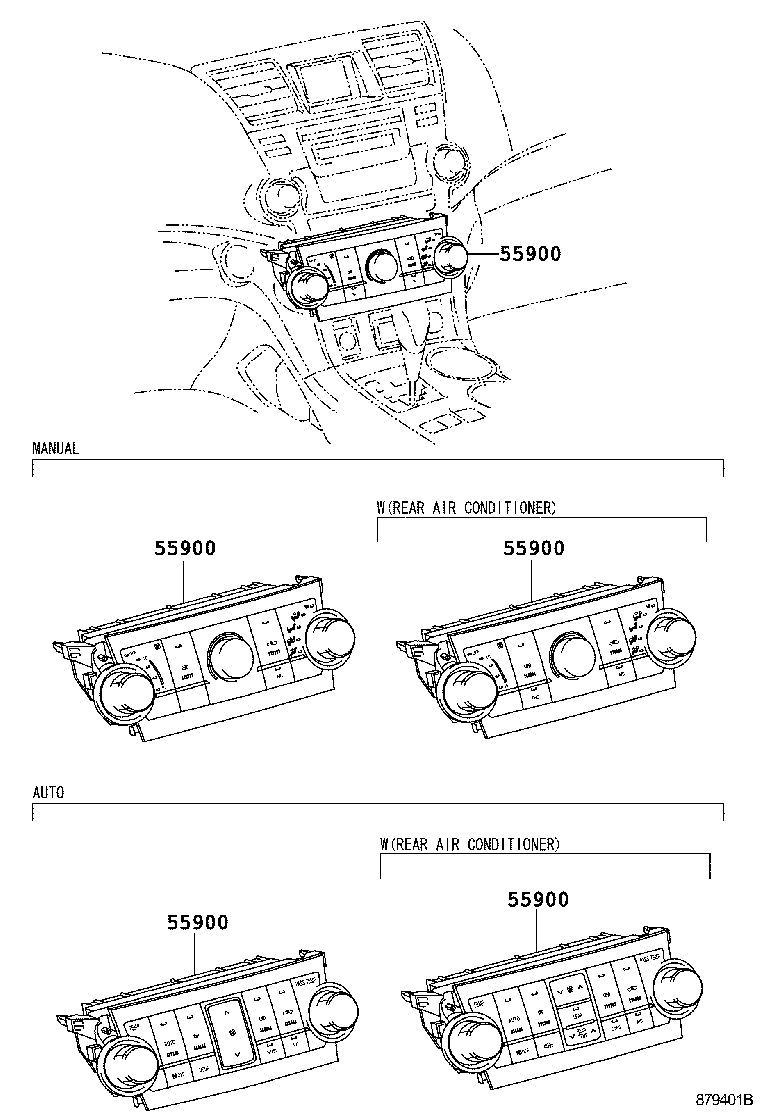

FRONT CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48080 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900-48070 |
GSU40..CHI |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48080 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900-48070 |
GSU40..CHI |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48080 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900-48070 |
GSU40..CHI |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48080 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900-48070 |
GSU40..CHI |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48080 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900-48070 |
GSU40..CHI |
1 | ||
ILLUST NO. 2 OF 5(0705- )

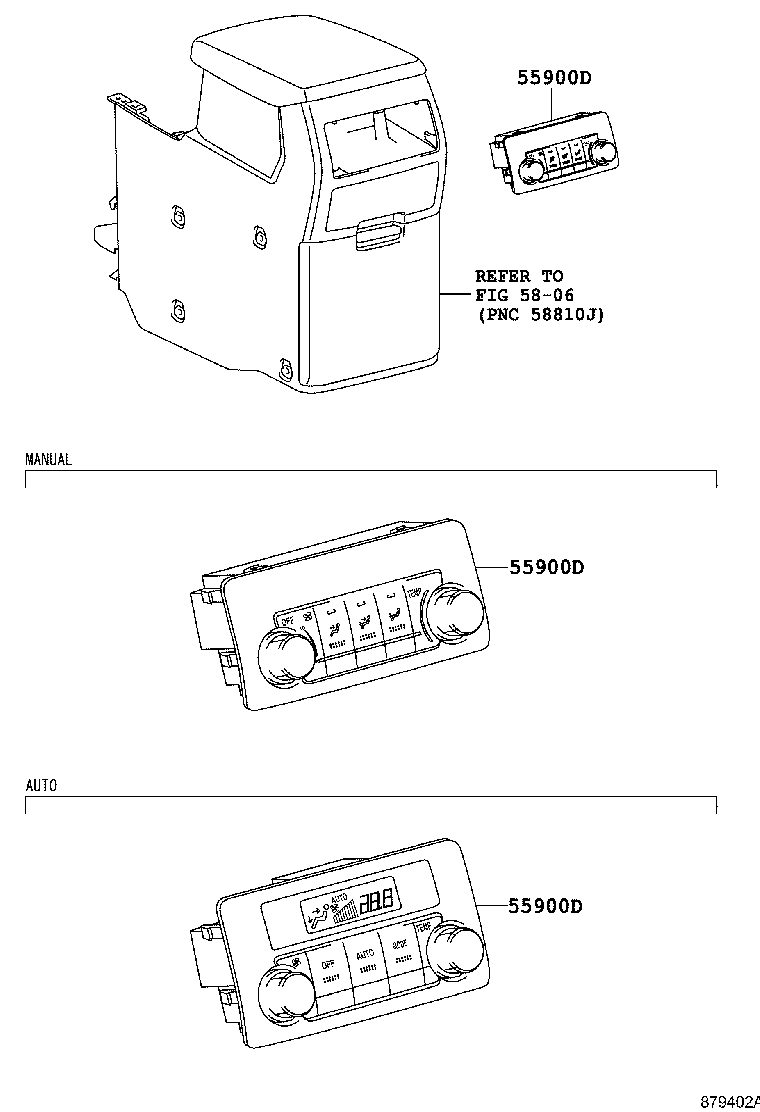

REAR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| Linked diagrams | ||||
| 5806 | ||||
ILLUST NO. 3 OF 5(0705- )LHD

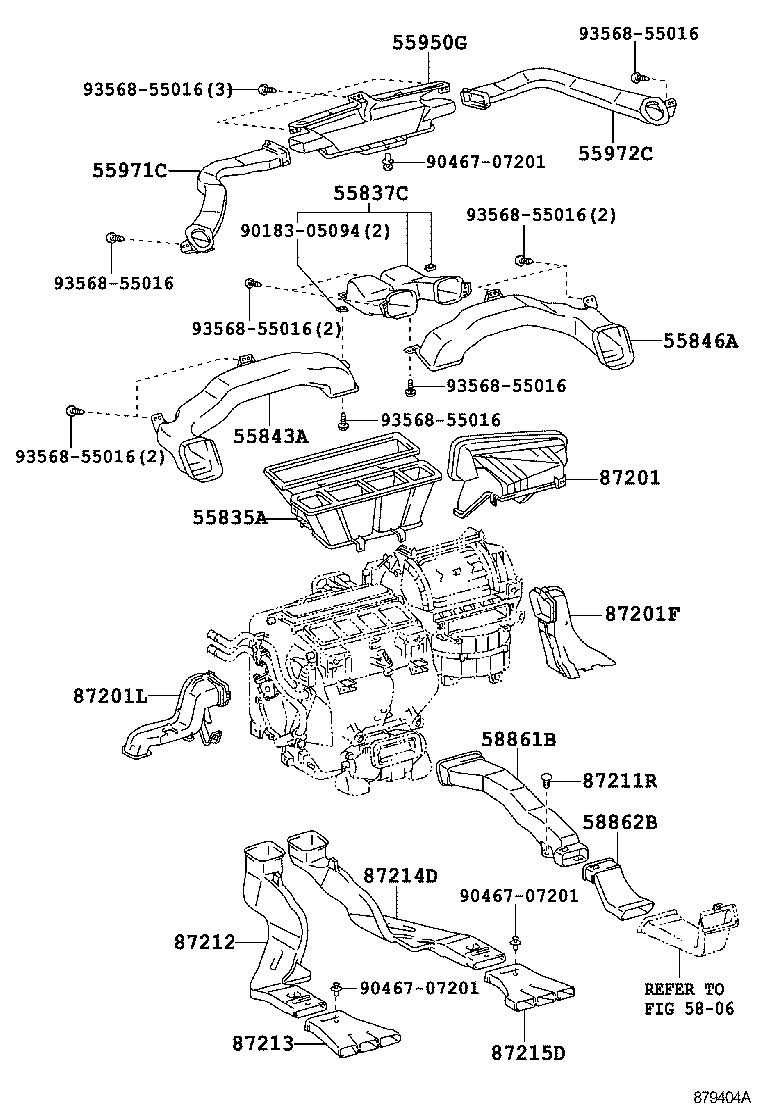

FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 87201-48080 |
GSU4#..CHI |
1 | ||
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-48050 |
GSU4# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-48070 |
GSU4#..CHI |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-48070 |
GSU4#..CHI |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-48050 |
GSU4#..CHI |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-48050 |
GSU4#..CHI |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-48050 |
GSU4#..CHI |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-48050 |
GSU40..CHI |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-48040 |
GSU40..CHI |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-48070 |
GSU4#..CHI |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87201-33290 |
GSU4#..CHI |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87201-48090 |
GSU4#..CHI |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07211 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
2 | ||
| 90467-05161C0 |
GSU4#..GD,STD BLACK |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-48020 |
GSU4#..CHI |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87216-48030 |
GSU4#..CHI |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87212-48020 |
GSU4#..CHI |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87215-48030 |
GSU4#..CHI |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90467-07201 | ||||
| 93568-55016 | ||||
ILLUST NO. 4 OF 5(0705- )

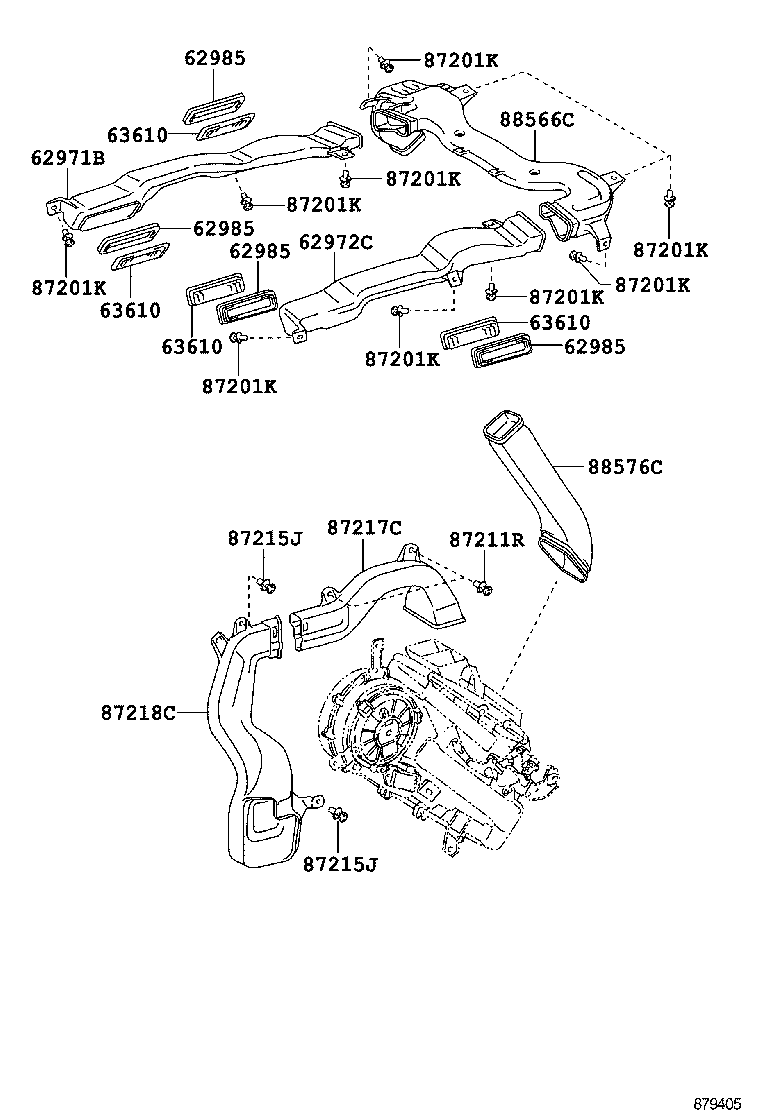

REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62971B - DUCT, ROOF SIDE AIR, NO.1 RH | ||||
| 62971-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 62972C - DUCT, ROOF SIDE AIR, NO.1 LH | ||||
| 62972-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
4 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
4 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
4 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
4 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63601-48010B0 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
4 | ||
| 63601-48010E0 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
4 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63601-48010B0 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
4 | ||
| 63601-48010E0 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
4 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63601-48010B0 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
4 | ||
| 63601-48010E0 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
4 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63601-48010B0 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
4 | ||
| 63601-48010E0 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
4 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07201 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
10 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07211 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
2 | ||
| 90467-05161C0 |
GSU4#..GD,STD BLACK |
1 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-07211 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-07211 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
2 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-48040 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87218C - DUCT, AIR, REAR NO.6 | ||||
| 87211-48150 |
GSU40..CHI WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 62973-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 62974-48010 |
GSU4#..STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
ILLUST NO. 5 OF 5(0705- )

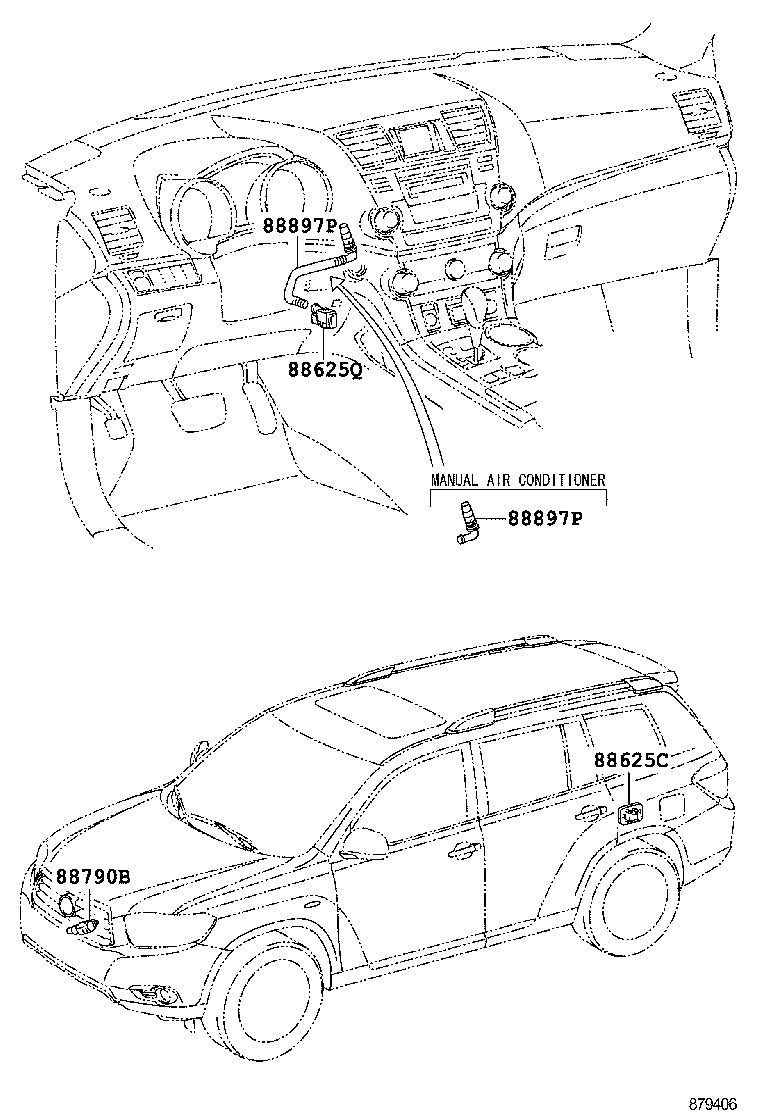

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
GSU4#..CHI |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-33030 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-33030 |
GSU4#..(SPO,STD)..CHI |
1 | ||
