GSU40L-BRANKC (2007)
Toyota Highlander/Kluger
Production
May 2007
-
Jan 2009
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )LHD

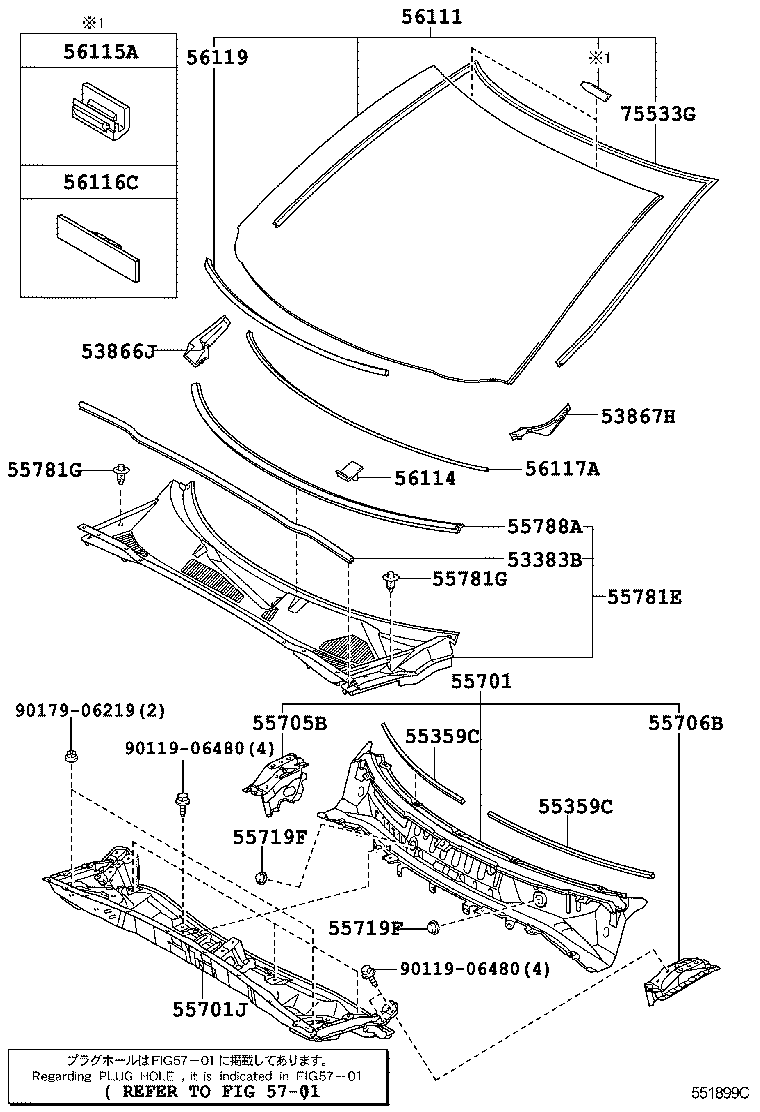

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-48040 |
GSU4#..CHI |
1 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-48030 |
GSU4#..CHI |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-48040 |
GSU4#..CHI |
1 | ||
| 55359C - COSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-48040 |
GSU4#..CHI |
2 | ||
| 55359C - COSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-48040 |
GSU4#..CHI |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-48090 |
GSU4#..CHI |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-48081 |
GSU4#..CHI |
1 | ||
| 55701-48080 |
GSU4#..CHI |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-48030 |
GSU4#..CHI |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-48030 |
GSU4#..CHI |
1 | ||
| 55719F - PACKING, FRONT LOWER PANEL | ||||
| 55719-33020 |
GSU4#..CHI |
2 | ||
| 55719F - PACKING, FRONT LOWER PANEL | ||||
| 55719-33020 |
GSU4#..CHI |
2 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-48050 |
GSU4#..CHI |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08180 |
GSU4#..CHI |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08180 |
GSU4#..CHI |
2 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55788-48050 |
GSU4#..CHI |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-48250 |
GSU4#..CHI *LAM,T=4.76,GREEN |
1 | ||
| 56101-48270 |
GSU4#..CHI *LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH |
1 | ||
| 56101-48271 |
GSU4#..CHI *LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH |
1 | ||
| 56101-48272 |
GSU4#..CHI *LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH |
1 | ||
| 56101-48252 |
GSU4#..CHI *LAM,T=4.76,GREEN |
1 | ||
| 56101-48251 |
GSU4#..CHI *LAM,T=4.76,GREEN |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-22050 |
GSU4#..CHI |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
GSU4#..CHI |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GSU4#..CHI |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-48060 |
GSU4#..CHI L=1551,WINDOSHIELD DEICER-WITH |
1 | ||
| 56117-48060 |
GSU4#..CHI L=1551 |
1 | ||
| 56119 - SEAL, WINDSHIELD GLASS | ||||
| 56119-48070 |
GSU4#..CHI |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75531-48040 |
GSU4#..CHI |
1 | ||
| Common parts | ||||
| 90119-06480 | ||||
| 90179-06219 | ||||
| Linked diagrams | ||||
| 5701 | ||||
