GSU40L-BRANKC (2007)
Toyota Highlander/Kluger
ILLUST NO. 1 OF 2(0705- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-48070C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55301-48070E0 |
GSU4#..CHI DK. BROWN,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-48090 |
GSU4#..CHI |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-48090 |
GSU4#..CHI |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
GSU4# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
GSU4# |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
GSU4# |
5 | ||
| 55328-50170 |
GSU4#..CHI |
5 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-48090 |
GSU4#..CHI |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-30021 |
GSU4#..CHI |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-33041 |
GSU4#..CHI |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-48040 |
GSU4#..CHI |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-30020 |
GSU4# |
1 | ||
| Common parts | ||||
| 55394-48010 | ||||
| 90119-06952 | ||||
| 90119-08C20 | ||||
| 90179-06288 | ||||
| 91631-60816 | ||||
| 91631-B0818 | ||||
| 93568-55016 | ||||
| 94150-80800 | ||||

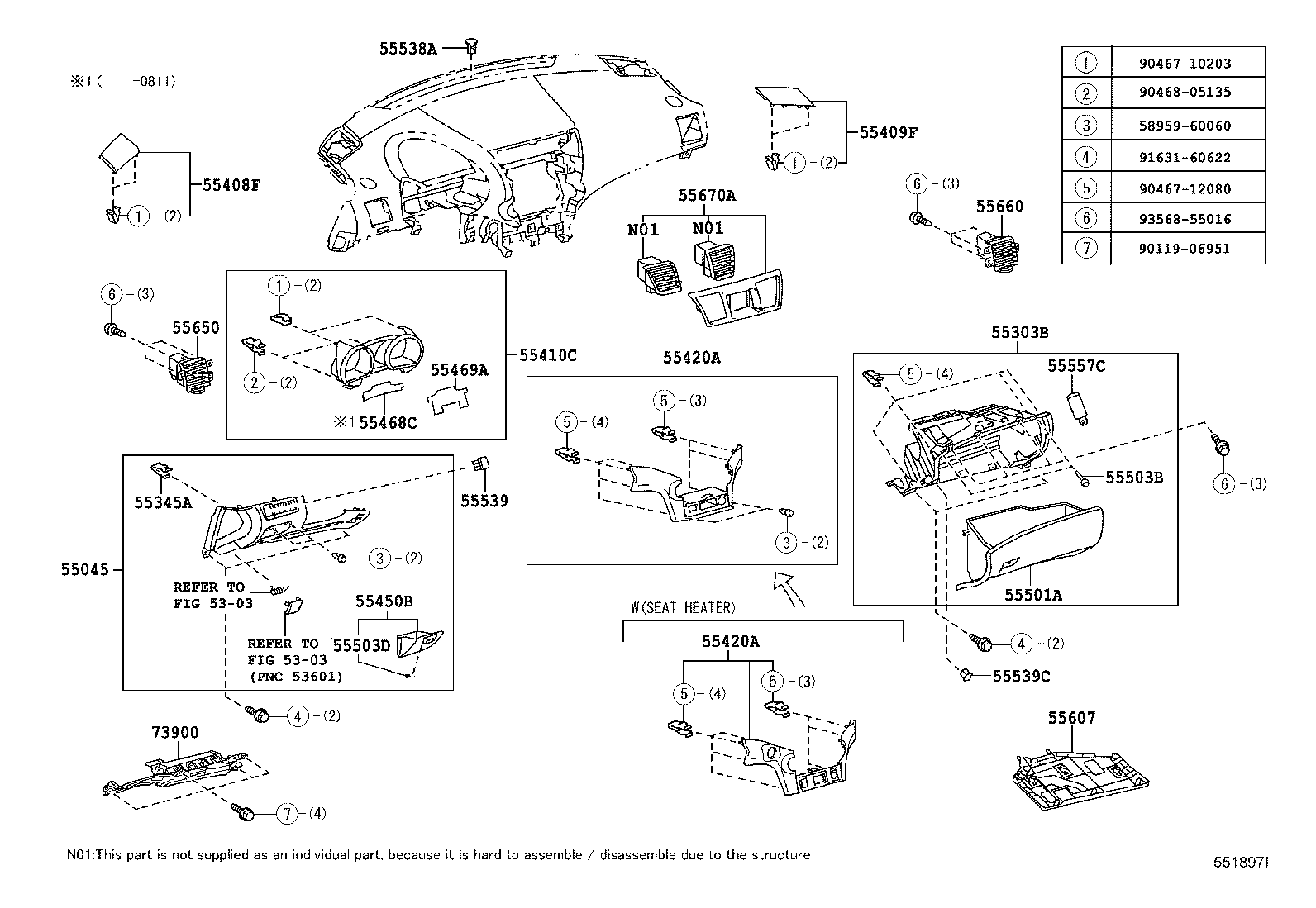

ILLUST NO. 2 OF 2(0705- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-48120E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 55045-48120B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-48150E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 55303-48150B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-10201 |
GSU4#..CHI NATURAL |
5 | ||
| 90467-12080 |
GSU4#..CHI PINK |
4 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-48040C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55472-48040E0 |
GSU4# DK. BROWN,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-48040C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55473-48040E0 |
GSU4# DK. BROWN,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-48090C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55410-48090E0 |
GSU4#..CHI DK. BROWN,TRIM4# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-48101E0 |
GSU4#..(SPO,STD)..CHI SAND BEIGE,TRIM4# |
1 | ||
| 55420-48101B0 |
GSU4#..(SPO,STD)..CHI GRAY,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-48101E0 |
GSU4#..(SPO,STD)..CHI SAND BEIGE,TRIM4# |
1 | ||
| 55420-48101B0 |
GSU4#..(SPO,STD)..CHI GRAY,TRIM1# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-48110B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 55450-48110E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-48010 |
GSU4# |
1 | ||
| 55469A - SEAL, INSTUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55469-48010 |
GSU4#..CHI |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-48180B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| 55501-48180E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-03015 |
GSU4#..CHI |
2 | ||
| 55503D - SPRING(FOR GLOVE COMPARTMENT) | ||||
| 55518-48010 |
GSU4#..CHI |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-48010 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
GSU4# BLACK |
1 | ||
| 55539-28160C0 |
GSU4#..CHI WINDOSHIELD DEICER-WITH,BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GSU4#..(SPO,STD)..CHI |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| 55557-48010 |
GSU4#..CHI |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48140 |
GSU4#..CHI |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48060C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55650-48060E0 |
GSU4#..CHI DK. BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48060C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55660-48060E0 |
GSU4#..CHI DK. BROWN,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-48060C0 |
GSU40..CHI BLACK,TRIM1# |
1 | ||
| 55670-48060E0 |
GSU4# DK. BROWN,TRIM4# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-48030E0 |
GSU4#..CHI SAND BEIGE,TRIM4# |
1 | ||
| 73900-48030B0 |
GSU4#..CHI GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90119-06951 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 91631-60622 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 5303 | ||||
