AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

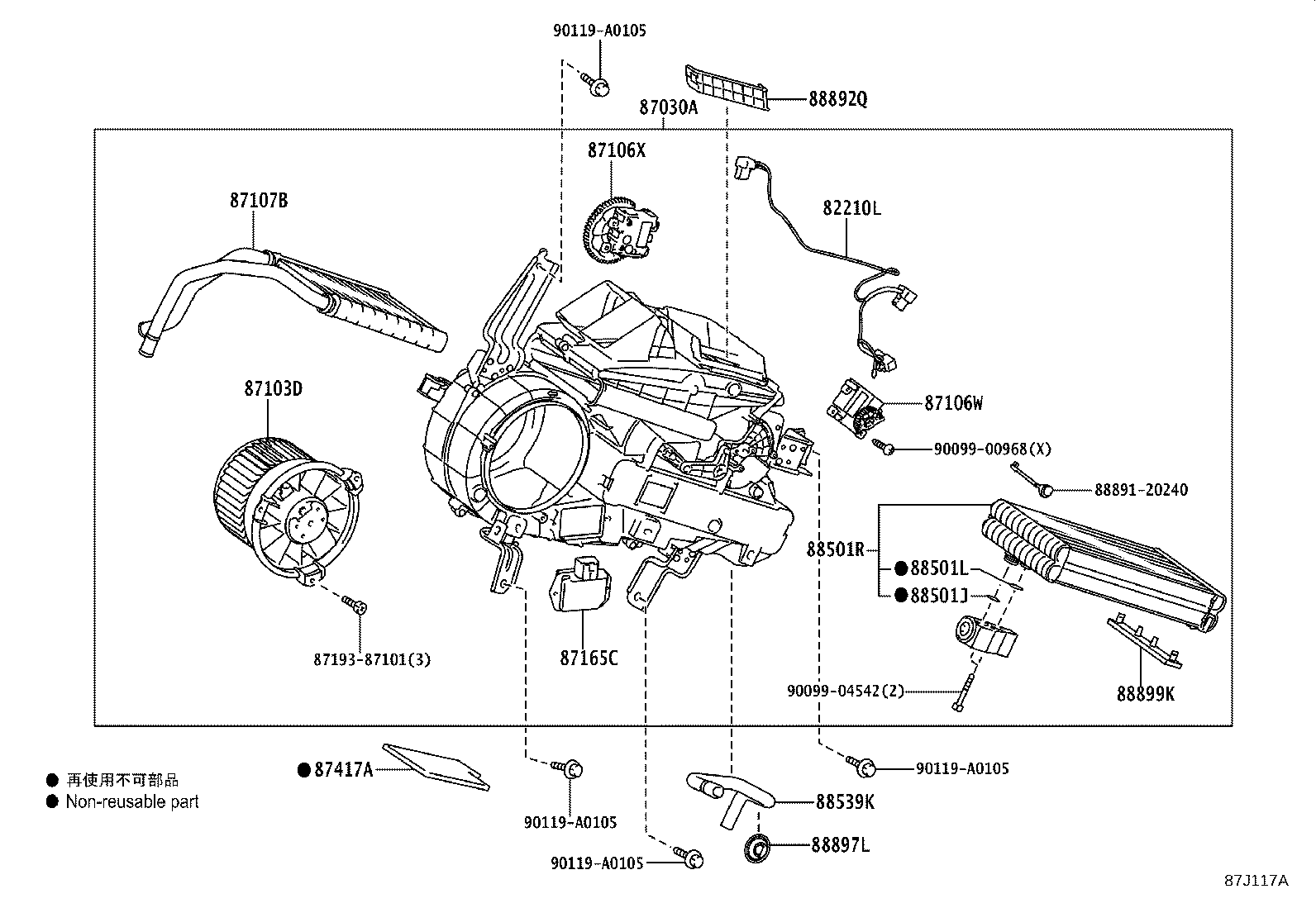

ILLUST NO. 2 OF 2(2002- )

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87103D 87106W 87106X 87107B 87165C 8719387101 87417A 88501J 88501L 88501R 88539K 8889120240 88892Q 88897L 88899K 9009900968 9009904542 90119A0105 90119A0105 90119A0105 90119A0105
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-0E090

AXUH7#,GSU7#

 1
87030A - UNIT ASSY, COOLING, REAR
87030-0E090

AXUH7#

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0C061

AXUH7#,GSU7#

 1
87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR)
87106-0E190

AXUH7#,GSU7#

 1
87106X - SERVO SUB-ASSY, DAMPER(FOR MODE REAR)
87106-0E160

AXUH7#,GSU7#

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-0E060

AXUH7#,GSU7#

 1
87165C - CONTROL, BLOWER MOTOR
87165-36010

AXUH7#,GSU7#

 1
87417A - PACKING, AIR DUCT
87417-0E010

AXUH7#,GSU7#

 1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0E200

AXUH7#

A/C OIL:ND-OIL11

 1
88501-0C120

AXUH7#

 1
88539K - HOSE, DRAIN COOLER
88539-0E120

AXUH7#,GSU7#

 1
88892Q - PLATE, COOLER
88892-0C030

AXUH7#,GSU7#

 1
88897L - GROMMET (FOR DRAIN HOSE)
90480-26030

AXUH7#,GSU7#

 1
88899K - PLATE, COVER
88899-60450

AXUH7#,GSU7#

 1
Common parts
87193-87101
88891-20240
90099-00968
90099-04542
90119-A0105
