AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2002- )

Click highlighted areas on diagram

diagram 58995G 83107C 840C2 86681B 86730A 86860 86862 9008015073 9008015073 90119A0455 90119A0455 9015350015 9015350015 90153A0003 90153A0003
Part # Description Qty Price
86860 - ANTENNA ASSY, NAVIGATION
86860-0E070

GSU75..LE..RUS;AXUH7#,GSU7#..ARL,GCC

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

GSU75..LE..RUS;AXUH7#,GSU7#..ARL,EUR,GCC

 1
Common parts
90080-15073
90119-A0455
90153-50015
90153-A0003

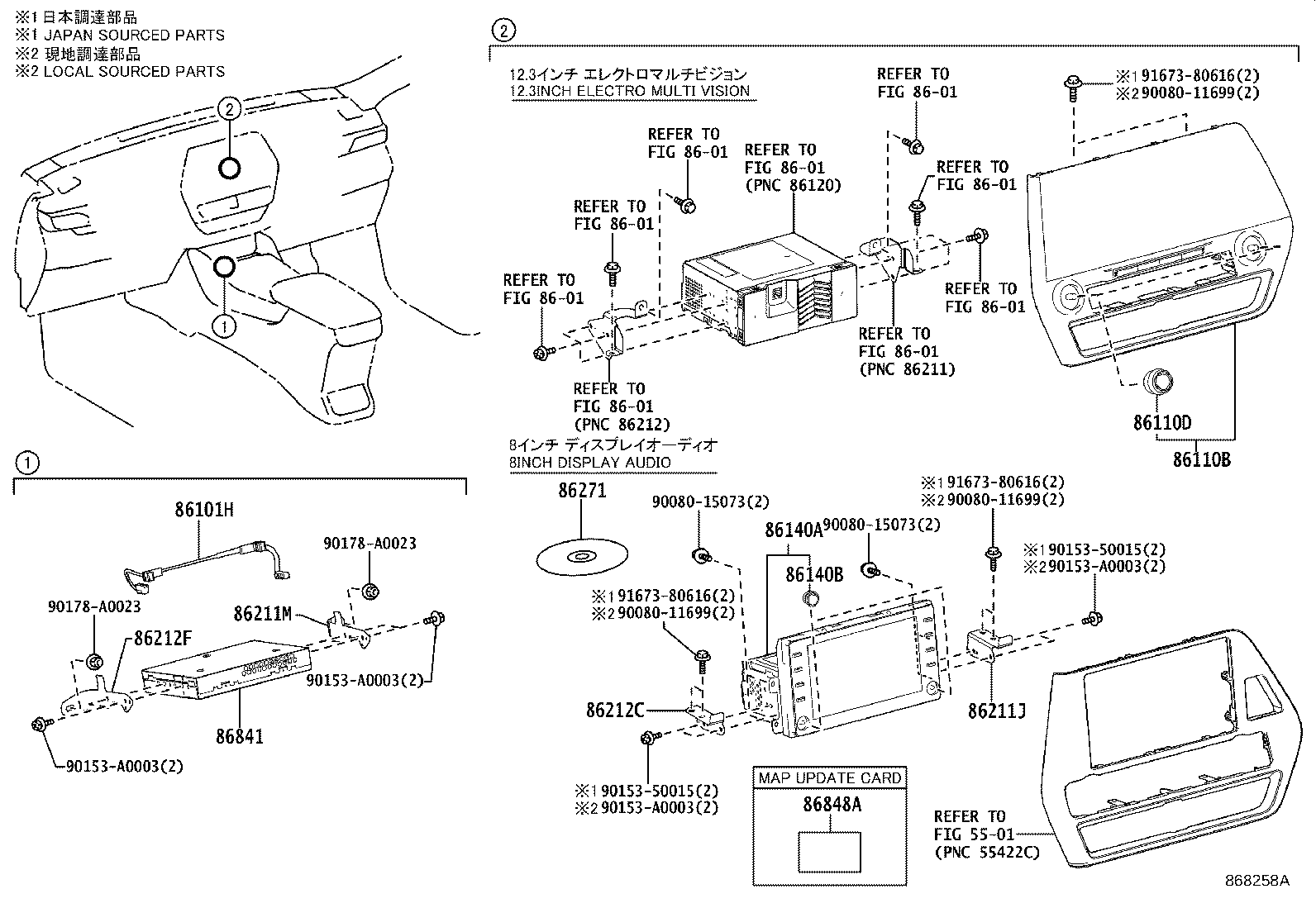

ILLUST NO. 1 OF 2(2002- )

Click highlighted areas on diagram

diagram 5501 8601 8601 8601 8601 8601 8601 8601 8601 8601 86101H 86110B 86110D 86140A 86140B 86211J 86211M 86212C 86212F 86271 86841 86848A 9008011699 9008011699 9008011699 9008015073 9008015073 9015350015 9015350015 90153A0003 90153A0003 90153A0003 90153A0003 90178A0023 90178A0023 9167380616 9167380616 9167380616
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-0EK40

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-0E390

AXUH78,GSU7#..LE..ARL

PIONEER,LEATHER PACKAGE

 1
86140-0E380

AXUH78,GSU7#..LE..ARL

DENSO TEN

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22129

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 2
90011-23045

AXUH7#,GSU7#..(LE,XLE)..(ARL,GCC)

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-0E130

AXUH7#,GSU7#

 1
86211M - BRACKET, RADIO RECEIVER, NO.3
86211-0E150

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-0E130

AXUH7#,GSU7#

 1
86212F - BRACKET, RADIO RECEIVER, NO.4
86212-0E150

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
86271 - DISC, DISC PLAYER
86807-11043

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
86841 - COMPUTER, NAVIGATION
86840-0E090

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
86848A - CARD, SERIAL NUMBER MAP UPDATE
86848-33040

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
Common parts
90080-11699
90080-15073
90153-50015
90153-A0003
90178-A0023
91673-80616
Linked diagrams
5501
8601
