AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

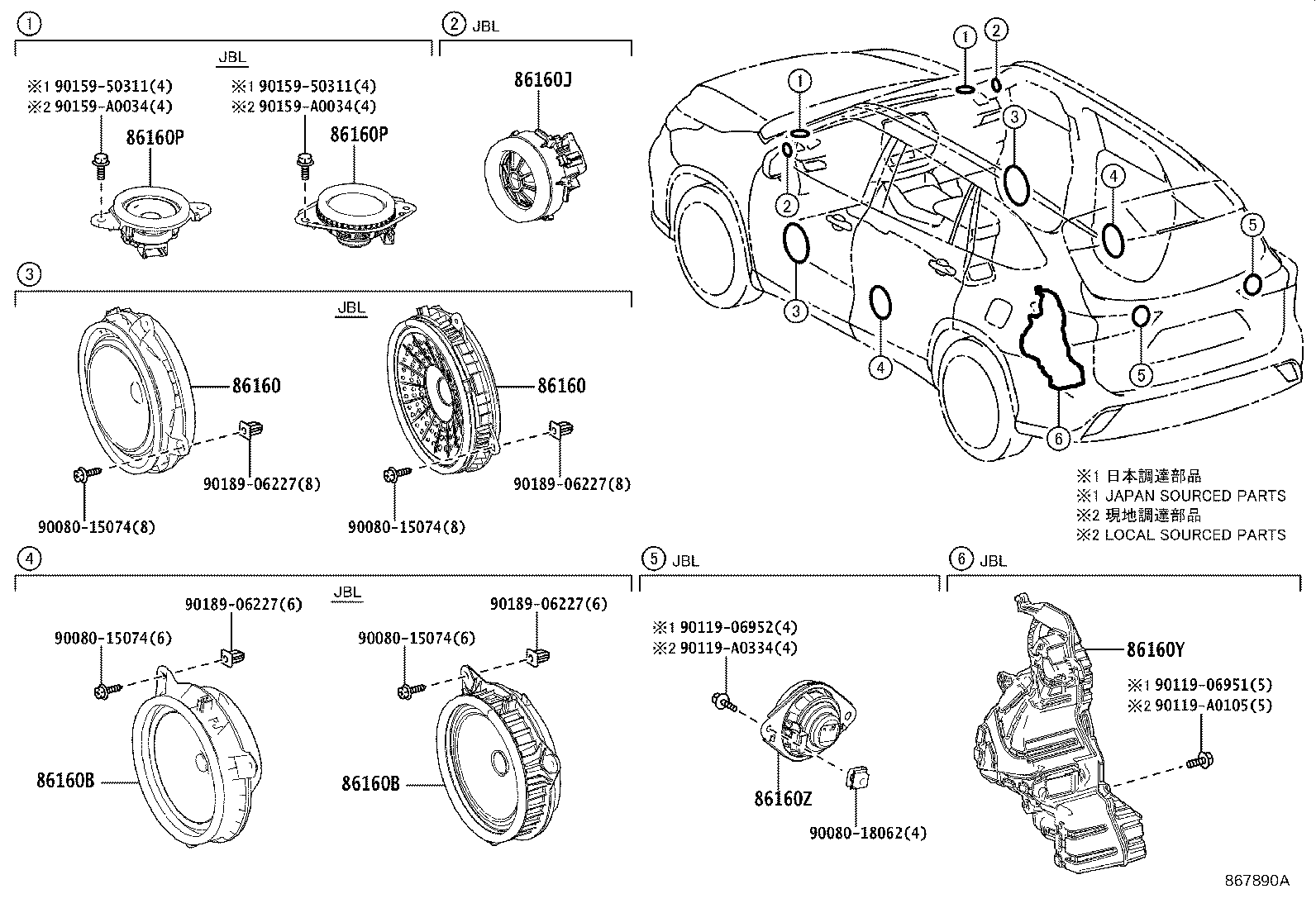

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160J 86160P 86160P 86160Y 86160Z 9008015074 9008015074 9008015074 9008015074 9008018062 9011906951 9011906952 90119A0105 90119A0334 9015950311 9015950311 90159A0034 90159A0034 9018906227 9018906227 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0E340

AXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-0E340

AXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)

 2
86160B - SPEAKER ASSY, REAR
86160-02B40

AXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)

 2
86160B - SPEAKER ASSY, REAR
86160-02B40

AXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-06380

AXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-06380

AXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)

 2
Common parts
90080-15074
90080-18062
90119-06951
90119-06952
90119-A0105
90119-A0334
90159-50311
90159-A0034
90189-06227
