AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

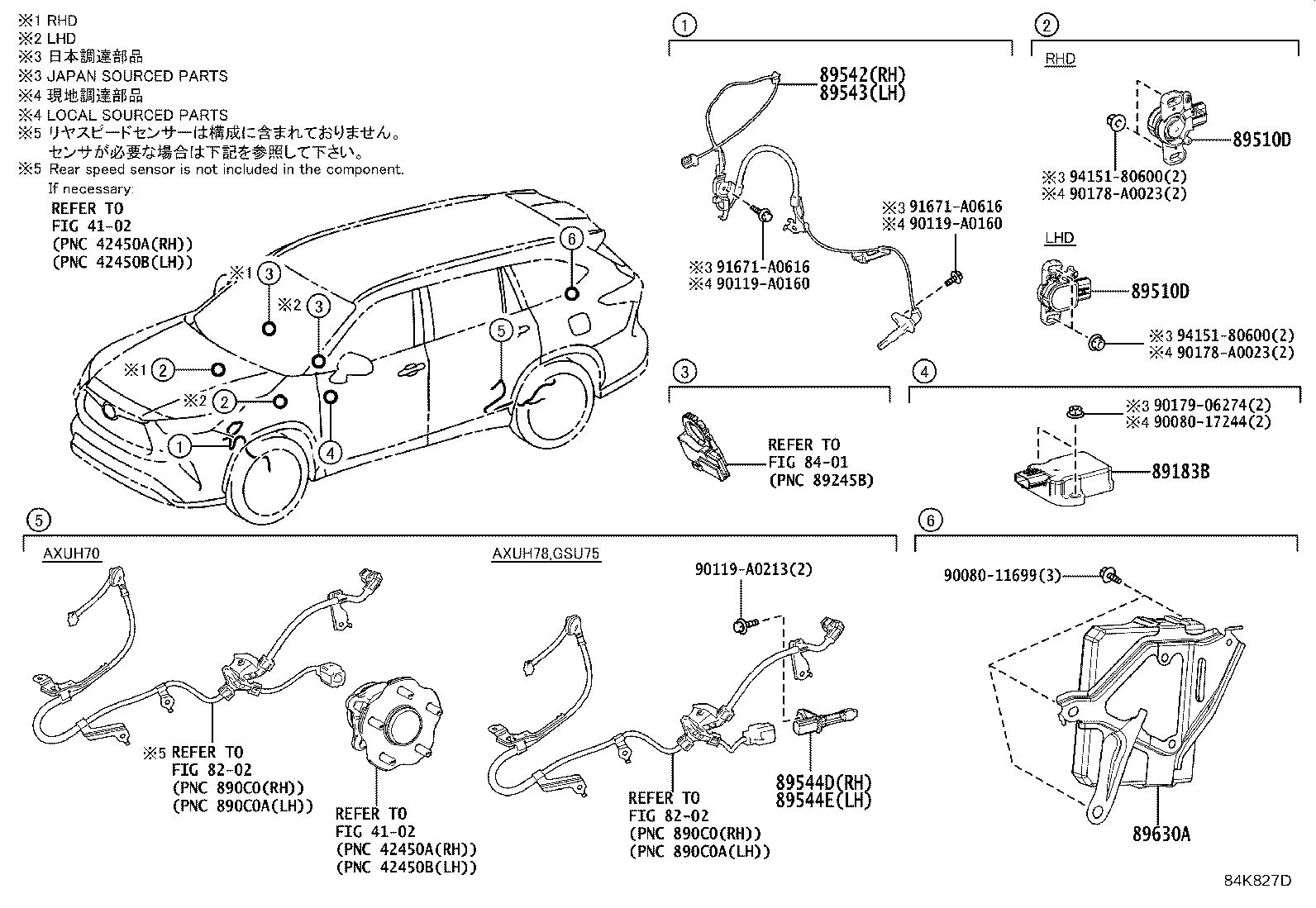

Click highlighted areas on diagram

diagram 4102 4102 8202 8202 8401 89183B 89510D 89510D 89542 89543 89544D 89544E 89630A 9008011699 9008017244 90119A0160 90119A0160 90119A0213 90178A0023 90178A0023 9017906274 91671A0616 91671A0616 9415180600 9415180600
Part # Description Qty Price
89183B - SENSOR, YAWRATE
89183-50040

AXUH7#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-0E070

AXUH7#,GSU7#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0E070

AXUH7#,GSU7#

 1
89544D - SENSOR, SKID CONTROL, REAR RH
89544-0E040

AXUH78,GSU75

 1
89544E - SENSOR, SKID CONTROL, REAR LH
89544-0E040

AXUH78,GSU75

 1
Common parts
90080-11699
90080-17244
90119-A0160
90119-A0213
90178-A0023
90179-06274
91671-A0616
94151-80600
Linked diagrams
4102
8202
8401
