ILLUST NO. 1 OF11(2002- )AXUH7#

Click highlighted areas on diagram

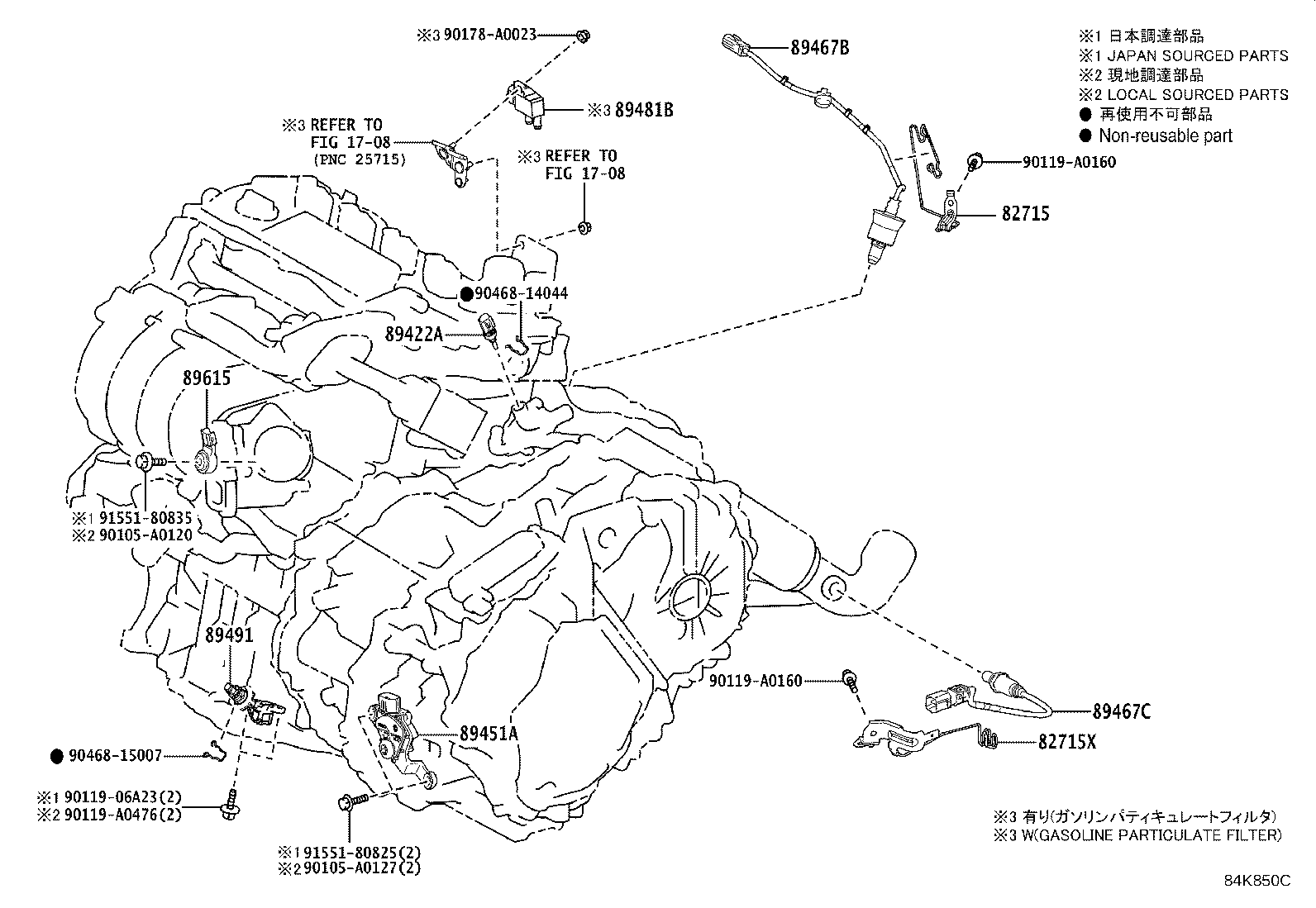

ENGINE & TRANSMISSION

diagram 1708 1708 82715 82715X 89422A 89451A 89467B 89467C 89481B 89491 89615 90105A0120 90105A0127 9011906A23 90119A0160 90119A0160 90119A0476 90178A0023 9046814044 9046815007 9155180825 9155180835
Part # Description Qty Price
82715 - BRACKET,WIRING HARNESS CLAMP
82715-33V10

AXUH7#

 1
82715X - BRACKET, WIRING HARNESS CLAMP, NO.2
82715-42K60

AXUH7#

 1
89422A - SENSOR, WATER TEMPERATURE
89422-33040

AXUH7#

 1
89451A - SENSOR, SHIFT LEVER POSITION
89451-10010

AXUH7#

 1
89467B - SENSOR, AIR FUEL RATIO
89467-0E280

AXUH7#

 1
89467C - SENSOR, AIR FUEL RATIO, NO.2
89467-0R100

AXUH7#

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-33051

AXUH7#

 1
89615 - SENSOR, KNOCK CONTROL
89615-06010

AXUH7#

(L)

 1
89615-20090

AXUH7#

(J)

 1
Common parts
90105-A0120
90105-A0127
90119-06A23
90119-A0160
90119-A0476
90178-A0023
90468-14044
90468-15007
91551-80825
91551-80835
Linked diagrams
1708

ILLUST NO. 2 OF11(2002- )

Click highlighted areas on diagram

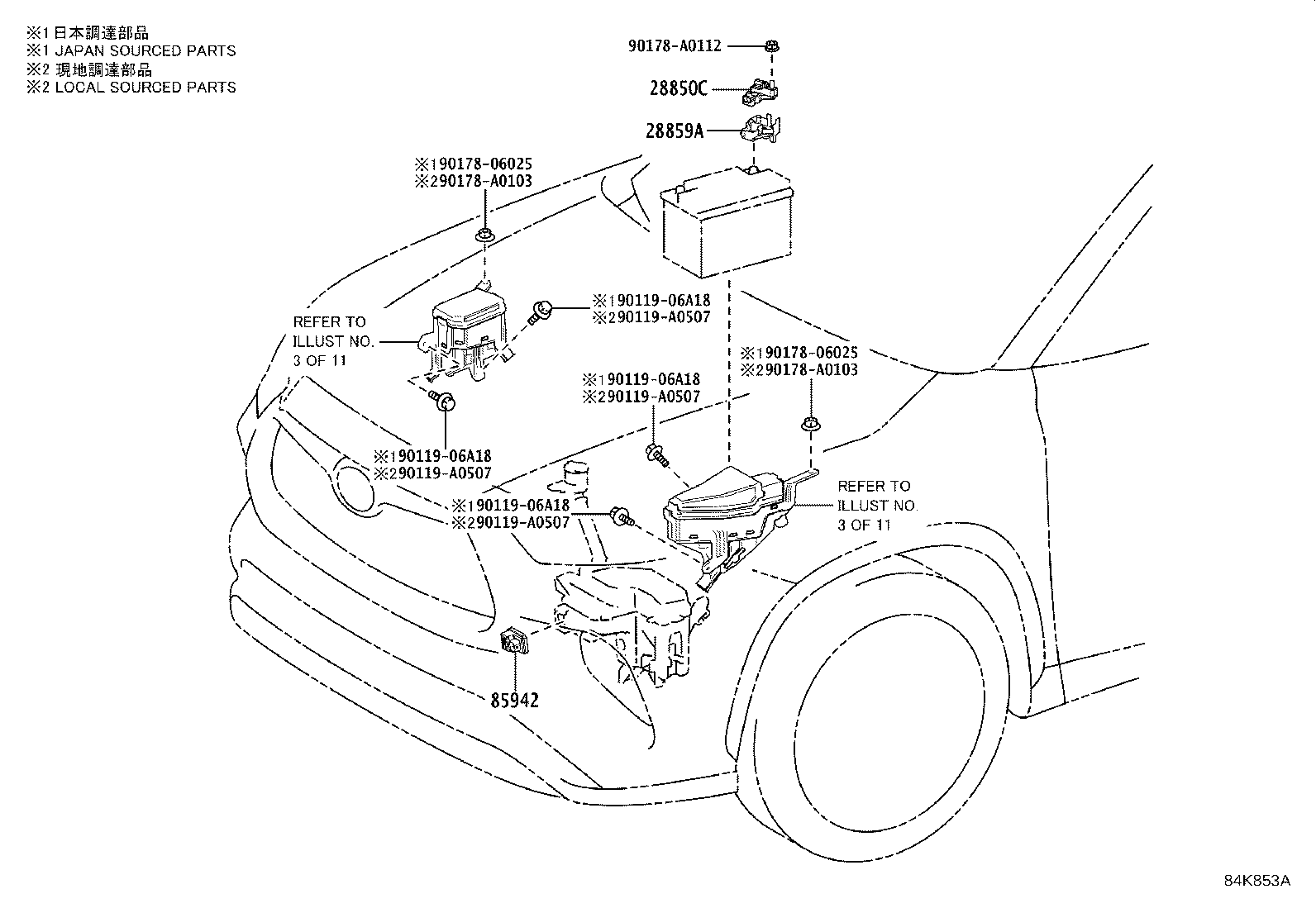

ENGINE ROOM

diagram 28850C 28859A 85942 9011906A18 9011906A18 9011906A18 9011906A18 90119A0507 90119A0507 90119A0507 90119A0507 9017806025 9017806025 90178A0103 90178A0103 90178A0112
Part # Description Qty Price
28850C - SENSOR ASSY, BATTERY STATE
28850-F0040

A25AFXS,2GRFKS..AXUH7#,GSU7#..ARL,EUR,GCC

 1
28859A - HOLDER, BATTERY CURRENT SENSOR
28859-F0070

A25AFXS..AXUH7#

 1
Common parts
90119-06A18
90119-A0507
90178-06025
90178-A0103
90178-A0112

ILLUST NO. 3 OF11(2002- )AXUH7#

Click highlighted areas on diagram

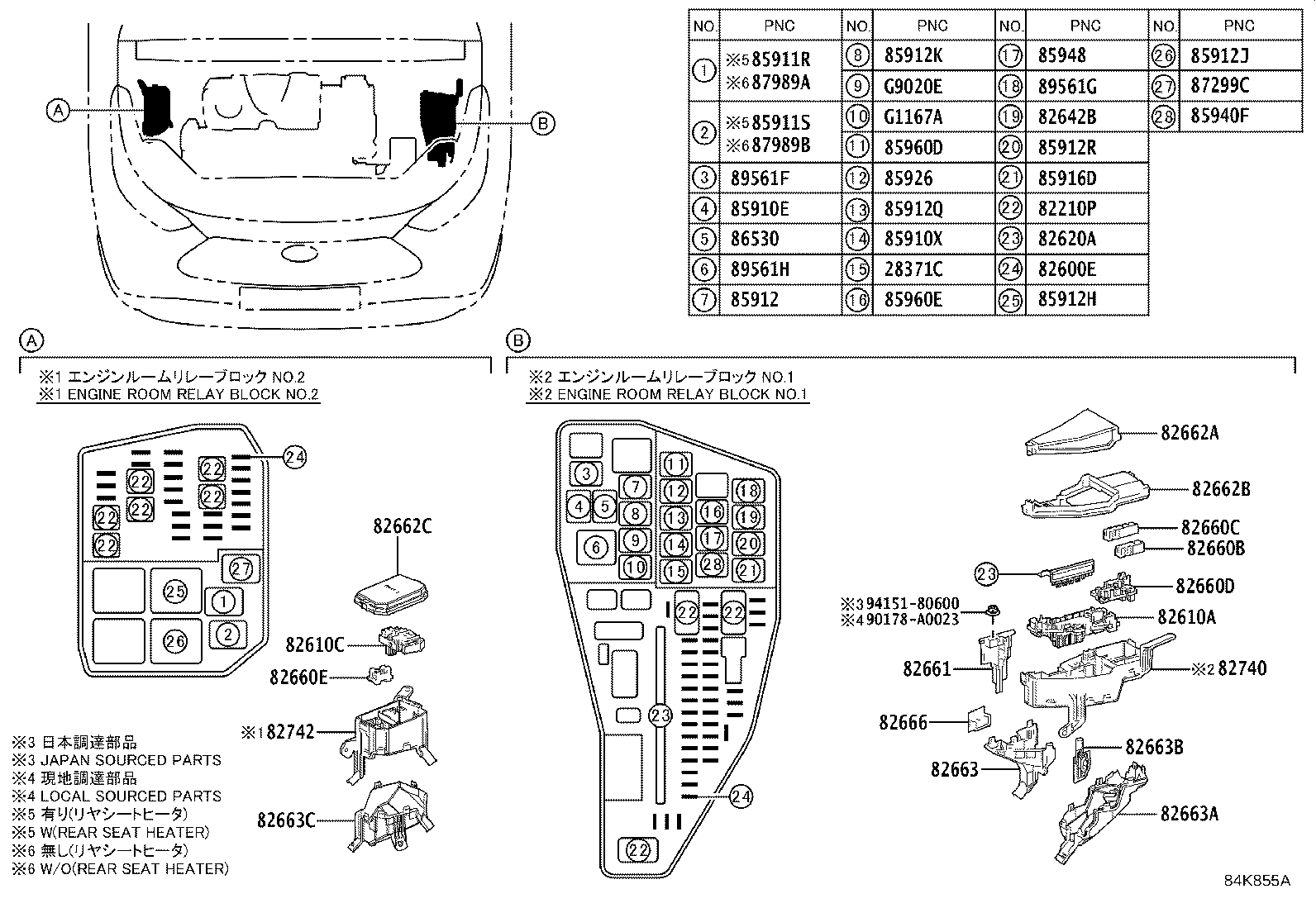

ENGINE ROOM RELAY BLOCK

diagram 28371C 82210P 82600E 82610A 82610C 82620A 82642B 82660B 82660C 82660D 82660E 82661 82662A 82662B 82662C 82663 82663A 82663B 82663C 82666 82740 82742 85910E 85910X 85911R 85911S 85912 85912H 85912J 85912K 85912Q 85912R 85916D 85926 85940F 85948 85960D 85960E 86530 87299C 87989A 87989B 89561F 89561G 89561H 90178A0023 9415180600 G1167A G9020E
Part # Description Qty Price
28371C - RELAY, IGNITION, NO.2
90987-02027

A25AFXS,2GRFKS..AXUH7#,GSU7#

(J)

 1
90080-87026

A25AFXS,2GRFKS..AXUH7#,GSU7#

(L)

 1
82210P - ENGINE ROOM FUSIBLE LINK
90982-08298

AXUH7#,GSU7#

30A,TERMINAL:FEMALE

 1
90982-08312

AXUH7#,GSU7#

50A,TERM.:FEMALE,RED

 1
90982-08302

AXUH7#,GSU7#

50A-30A-50A,FEMALE

 1
90982-08308

AXUH7#,GSU7#

40A-30A-30A,FEMALE

 1
82600E - ENGINE ROOM FUSE
90982-09020

AXUH7#,GSU7#

7.5A,MINI FUSE,BROWN

 1
90982-09019

AXUH7#,GSU7#

5A,MINI FUSE,TAN

 1
90982-09022

AXUH7#,GSU7#

15A,MINI FUSE,BLUE

 1
90982-09021

AXUH7#,GSU7#

10A,MINI FUSE,RED

 1
90982-09023

AXUH7#,GSU7#

20A,MINI FUSE,YELLOW

 1
90982-09024

AXUH7#,GSU7#

25A,MINI FUSE

 1
90982-09025

AXUH7#,GSU7#

30A,MINI FUSE,GRN

 1
82610A - BLOCK ASSY, FUSE
82610-0E050

AXUH7#

 1
82610C - BLOCK ASSY, FUSE
82610-0E060

AXUH7#;GSU7#..LE;GSU75..LIMD..RUS

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-0E070

AXUH7#

 1
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90080-87026

AXUH7#,GSU7#

 1
82660B - BLOCK ASSY, RELAY
82660-0E050

AXUH7#,GSU7#

 1
82660C - BLOCK ASSY, RELAY
82660-0E060

AXUH7#,GSU7#

 1
82660D - BLOCK ASSY, RELAY
82660-0E080

AXUH7#

 1
82660E - BLOCK ASSY, RELAY
82660-0E090

AXUH7#;GSU7#..LE;GSU75..LIMD..RUS

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-0E060

AXUH7#,GSU7#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-0E690

AXUH78..ARL

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-0E460

AXUH7#,GSU7#

 1
82662C - COVER, RELAY BLOCK, UPPER, NO.3
82662-0E470

AXUH78,GSU7#..LE..ARL

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-0E110

AXUH7#,GSU7#

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-0E080

AXUH7#

 1
82663B - COVER, RELAY BLOCK, LOWER, NO.3
82663-0E130

AXUH7#

 1
82663C - COVER, RELAY BLOCK LOWER, NO.4
82663-0E090

AXUH7#;GSU7#..LE;GSU75..LIMD..RUS

 1
82666 - HOLDER, CONNECTOR
82666-0E240

AXUH7#,GSU7#

 1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82740-0E070

AXUH7#,GSU7#

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82742-0E010

AXUH7#;GSU7#..LE;GSU75..LIMD..RUS

 1
85910E - RELAY, INJECTOR
90987-02027

AXUH7#,GSU7#

(J)

 1
90080-87026

AXUH7#,GSU7#

(L)

 1
85910X - RELAY, HEATER MIRROR
90080-87026

AXUH7#,GSU7#..LE,XLE

 1
85912 - RELAY, DEFOGGER
90084-98032

AXUH7#,GSU7#

 1
85912K - RELAY, VVT
90987-02027

AXUH7#

(J)

 1
90080-87026

AXUH7#

(L)

 1
85912Q - RELAY, FRONT SEAT HEATER, RH
90080-87026

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE,(L)

 1
90987-02027

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE,(J)

 1
85912R - RELAY, FRONT SEAT HEATER, LH
90987-02027

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE,(J)

 1
90080-87026

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE,(L)

 1
85916D - RELAY, FOG LAMP
90080-87026

AXUH7#,GSU7#

 1
85948 - RELAY, WINDSHIELD WIPER
90080-87026

AXUH7#,GSU7#

 1
85960D - RELAY, HEADLAMP, RH
90080-87026

AXUH7#,GSU7#

 1
85960E - RELAY, HEADLAMP, LH
90080-87026

AXUH7#,GSU7#

 1
86530 - RELAY ASSY, HORN
90080-87026

AXUH7#,GSU7#

 1
87989A - RELAY, MIRROR NO.1
90084-98032

AXUH7#,GSU7#..LE,XLE

 1
87989B - RELAY, MIRROR NO.2
90084-98032

AXUH7#,GSU7#..LE,XLE

 1
89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
90987-02027

AXUH7#,GSU7#

(J)

 1
90080-87026

AXUH7#,GSU7#

(L)

 1
89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
90080-87026

AXUH7#

(L)

 1
90987-02027

AXUH7#

(J)

 1
89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
90080-87024

AXUH7#

(L)

 1
90987-02025

AXUH7#

(J)

 1
G1167A - RELAY (FOR OIL PUMP MOTOR)
90987-02027

AXUH7#

(J)

 1
90080-87026

AXUH7#

(L)

 1
G9020E - RELAY, HYBRID WATER PUMP
90080-87026

AXUH7#

MARK 90080-87026

 1
90987-02027

AXUH7#

MARK 90987-02027

 1
Common parts
90178-A0023
94151-80600

ILLUST NO. 9 OF11(2002- )

Click highlighted areas on diagram

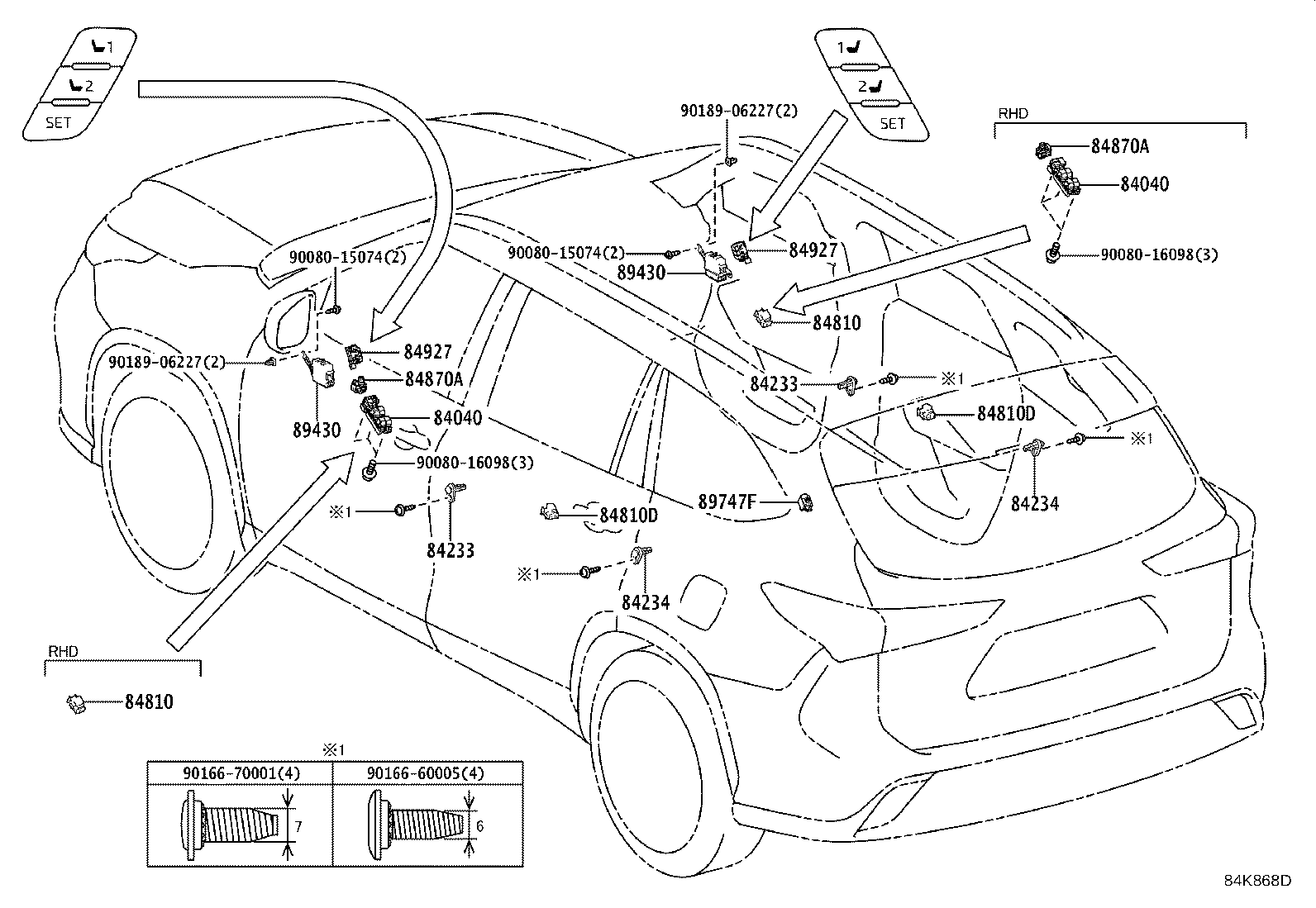

DOOR & ROOF

diagram 84040 84040 84233 84233 84234 84234 84810 84810 84810D 84810D 84870A 84870A 84927 84927 89430 89430 89747F 9008015074 9008015074 9008016098 9008016098 9016660005 9016670001 9018906227 9018906227
Part # Description Qty Price
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-08030

AXUH7#,GSU7#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-08030

AXUH7#,GSU7#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-08030

AXUH7#,GSU7#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-08030

AXUH7#,GSU7#

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0E120

AXUH7#,GSU7#..LE,XLE

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0E120

AXUH7#,GSU7#..LE,XLE

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0E120

AXUH7#,GSU7#..LE,XLE

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0E120

AXUH7#,GSU7#..LE,XLE

 2
Common parts
90080-15074
90080-16098
90166-60005
90166-70001
90189-06227

ILLUST NO.10 OF11(2002- )AXUH7#

Click highlighted areas on diagram

FLOOR & BACK DOOR

diagram 28850C 28859A 5202 83320 84840G 84966A 84966A 88162 88172 891B1 891B2 89222A 89747E 9008017245 9008017245 9008018062 9011906952 90119A0334 9017706001 90178A0112
Part # Description Qty Price
28850C - SENSOR ASSY, BATTERY STATE
28850-F0040

A25AFXS,2GRFKS..AXUH7#,GSU7#..ARL,EUR,GCC

 1
28859A - HOLDER, BATTERY CURRENT SENSOR
28859-F0070

A25AFXS..AXUH7#

 1
83320 - GAGE ASSY, FUEL SENDER
83320-0E060

AXUH7#

 1
84840G - SWITCH ASSY, BACK DOOR OPENER
84840-47060

AXUH7#,GSU7#

 1
84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1
84966-0R010

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1
84966-0R010

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
88162 - SENSOR, BLIND SPOT MONITOR, RH
88162-0E160

AXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS

 1
88172 - SENSOR, BLIND SPOT MONITOR, LH
88162-0E160

AXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS

 1
89222A - COMPUTER, MULTIPLEX NETWORK DOOR
89222-0E130

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
89747E - BUZZER, POWER BACK DOOR WARNING
89747-0R020

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
Common parts
90080-17245
90080-18062
90119-06952
90119-A0334
90177-06001
90178-A0112
Linked diagrams
5202

ILLUST NO.11 OF11(2002- )AXUH7#

Click highlighted areas on diagram

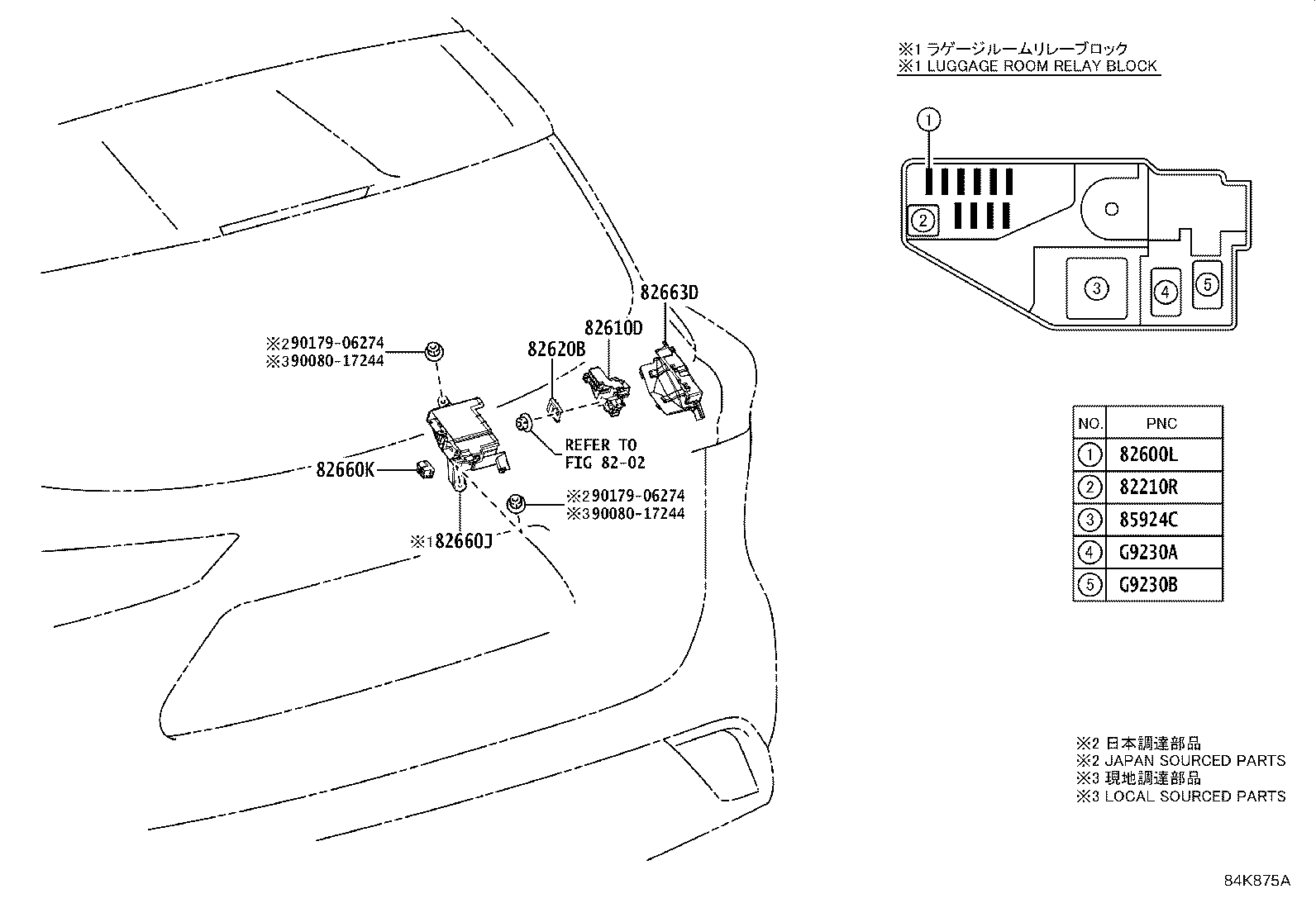

FLOOR RELAY BLOCK

diagram 8202 82210R 82600L 82610D 82620B 82660J 82660K 82663D 85924C 9008017244 9008017244 9017906274 9017906274 G9230A G9230B
Part # Description Qty Price
82210R - LUGGAGE ROOM FUSIBLE LINK
90982-08298

AXUH7#

 1
82600L - LUGGAGE ROOM FUSE
90982-09022

AXUH7#

15A,MINI FUSE,BLUE

 1
90982-09021

AXUH7#

10A,MINI FUSE,RED

 1
90982-09020

AXUH7#

7.5A,MINI FUSE,BROWN

 1
82610D - BLOCK ASSY, FUSE
82610-0E030

AXUH7#

 1
82620B - BLOCK ASSY, FUSIBLE LINK
82620-0E050

AXUH7#

 1
82660J - BLOCK ASSY, RELAY
82660-0E030

AXUH7#

 1
82660K - BLOCK ASSY, RELAY
82660-48020

AXUH7#

 1
82663D - COVER, RELAY BLOCK, LOWER, NO.5
82663-0E100

AXUH7#

 1
85924C - RELAY, IGCT
90987-02031

AXUH7#

 1
G9230A - RELAY, BATTERY FAN, NO.1
90080-87026

AXUH7#

 1
G9230B - RELAY, BATTERY FAN, NO.2
90080-87026

AXUH7#

 1
Common parts
90080-17244
90179-06274
Linked diagrams
8202
