AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO.22 OF29(2002- )AXUH7#

Click highlighted areas on diagram

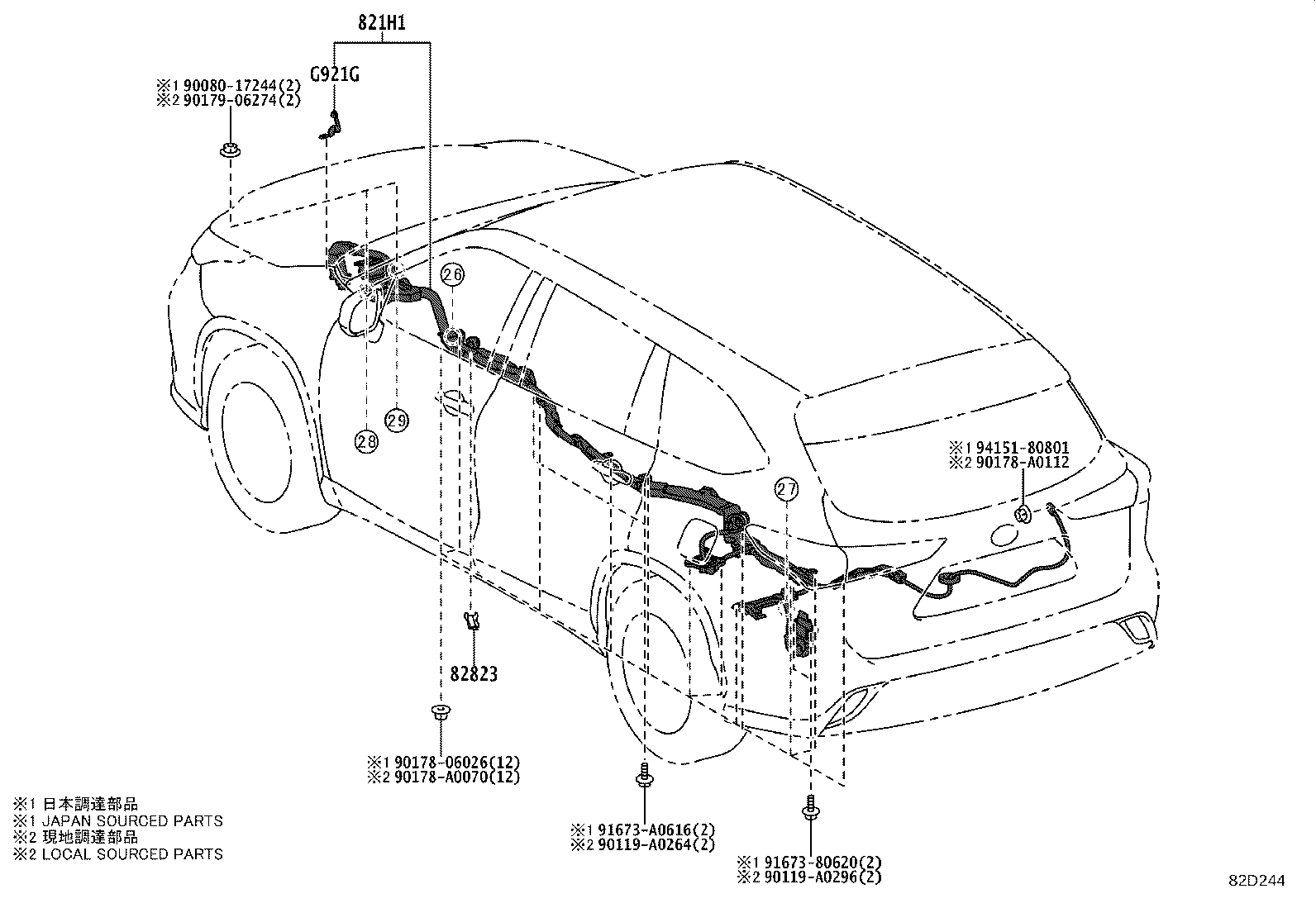

HIGH VOLTAGE CABLE

diagram 821H1 82823 9008017244 90119A0264 90119A0296 9017806026 90178A0070 90178A0112 9017906274 9167380620 91673A0616 9415180801 G921G
Part # Description Qty Price
821H1 - WIRE, FLOOR UNDER
821H1-0E050

AXUH78

 1
82823 - CAP, TERMINAL, NO.1
82823-0E020

AXUH7#

 1
G921G - PROTECTOR, INVERTER
G921G-42010

AXUH78

 1
Common parts
90080-17244
90119-A0264
90119-A0296
90178-06026
90178-A0070
90178-A0112
90179-06274
91673-80620
91673-A0616
94151-80801

ILLUST NO.24 OF29(2002- )

Click highlighted areas on diagram

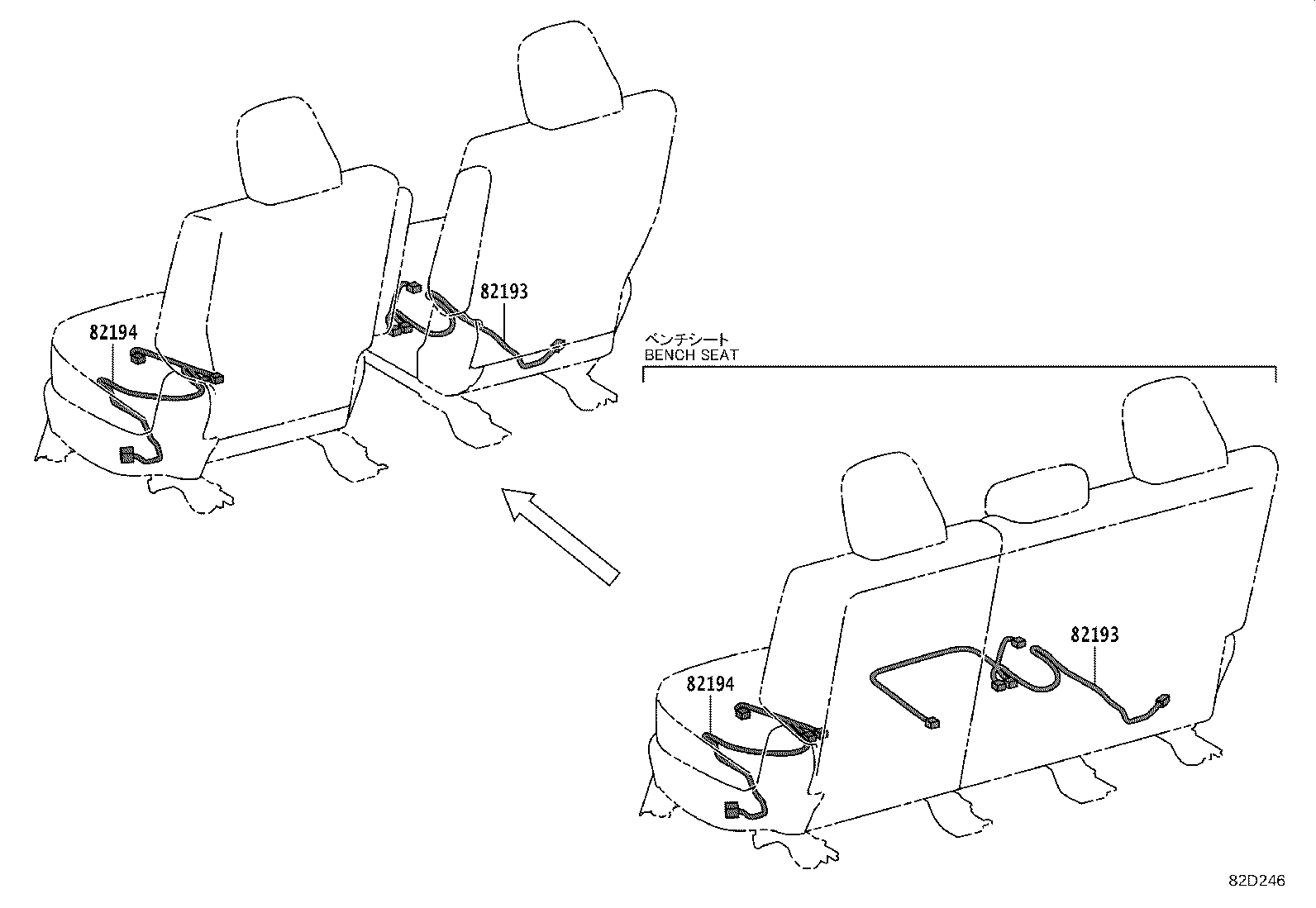

REAR SEAT

diagram 82193 82193 82194 82194
Part # Description Qty Price

ILLUST NO.27 OF29(2002- )

Click highlighted areas on diagram

CABLE BOND

diagram 82286A 90119A0255 90119A0255
Part # Description Qty Price
82286A - WIRE, EARTH, NO.2
82286-0E050

AXUH7#

 1
Common parts
90119-A0255

ILLUST NO.19 OF29(2002- )

Click highlighted areas on diagram

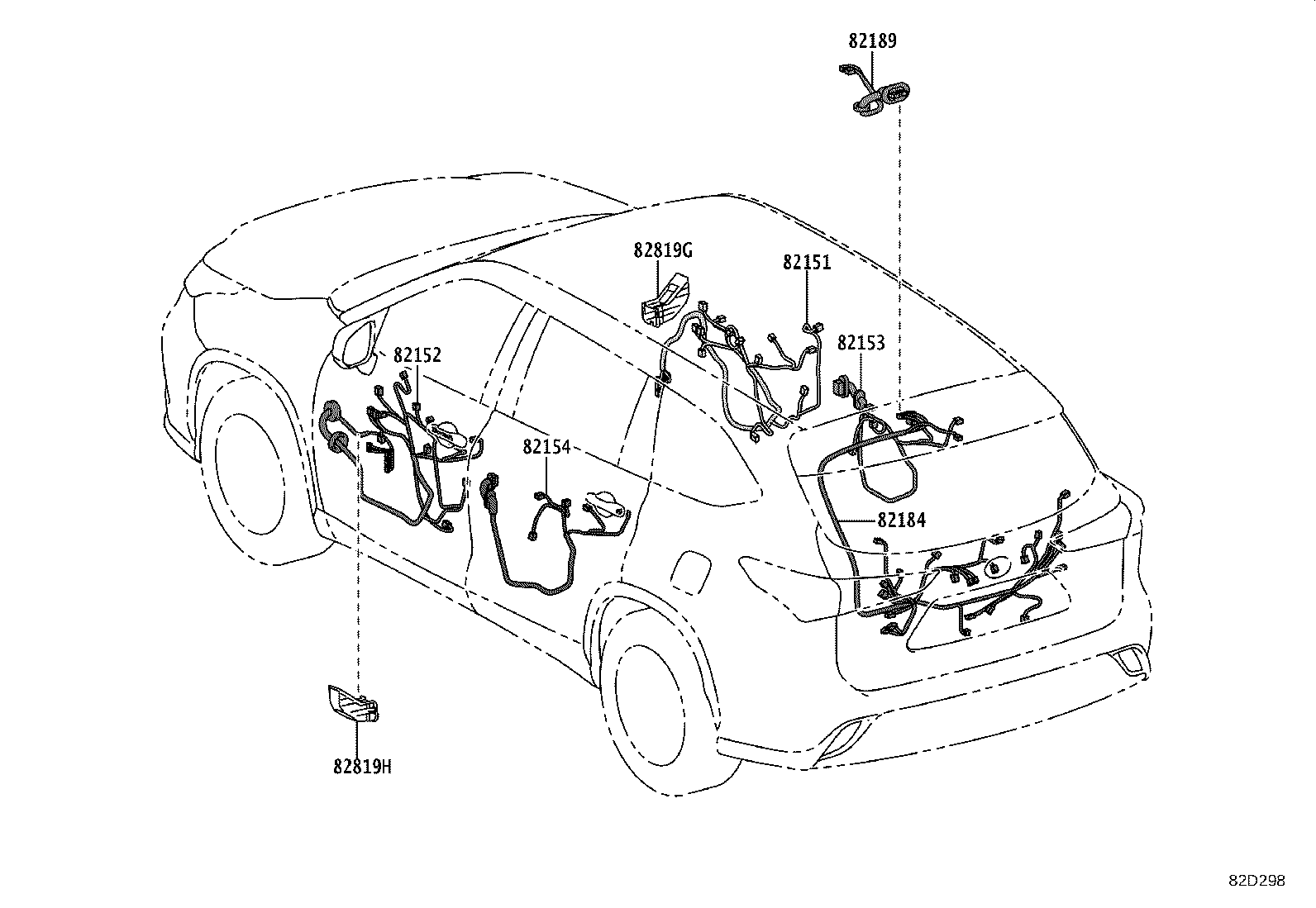

DOOR

diagram 82151 82152 82153 82154 82184 82189 82819G 82819H
Part # Description Qty Price
82153 - WIRE, REAR DOOR, NO.1
82153-0E150

AXUH7#,GSU7#..LE,XLE

 1
82154 - WIRE, REAR DOOR, NO.2
82154-0E150

AXUH7#,GSU7#..LE,XLE

 1
82184 - WIRE, BACK DOOR, NO.1
82184-0E620

AXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC)

 1
82184-0E640

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
82189 - WIRE, BACK DOOR, NO.4
82189-0E070

AXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC)

 1
82189-0E090

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
82819G - PROTECTOR, WIRING HARNESS, NO.23
82817-0E680

AXUH7#,GSU7#

 1
82819H - PROTECTOR, WIRING HARNESS, NO.24
82817-0E680

AXUH7#,GSU7#

 1

ILLUST NO.20 OF29(2002- )AXUH7#

Click highlighted areas on diagram

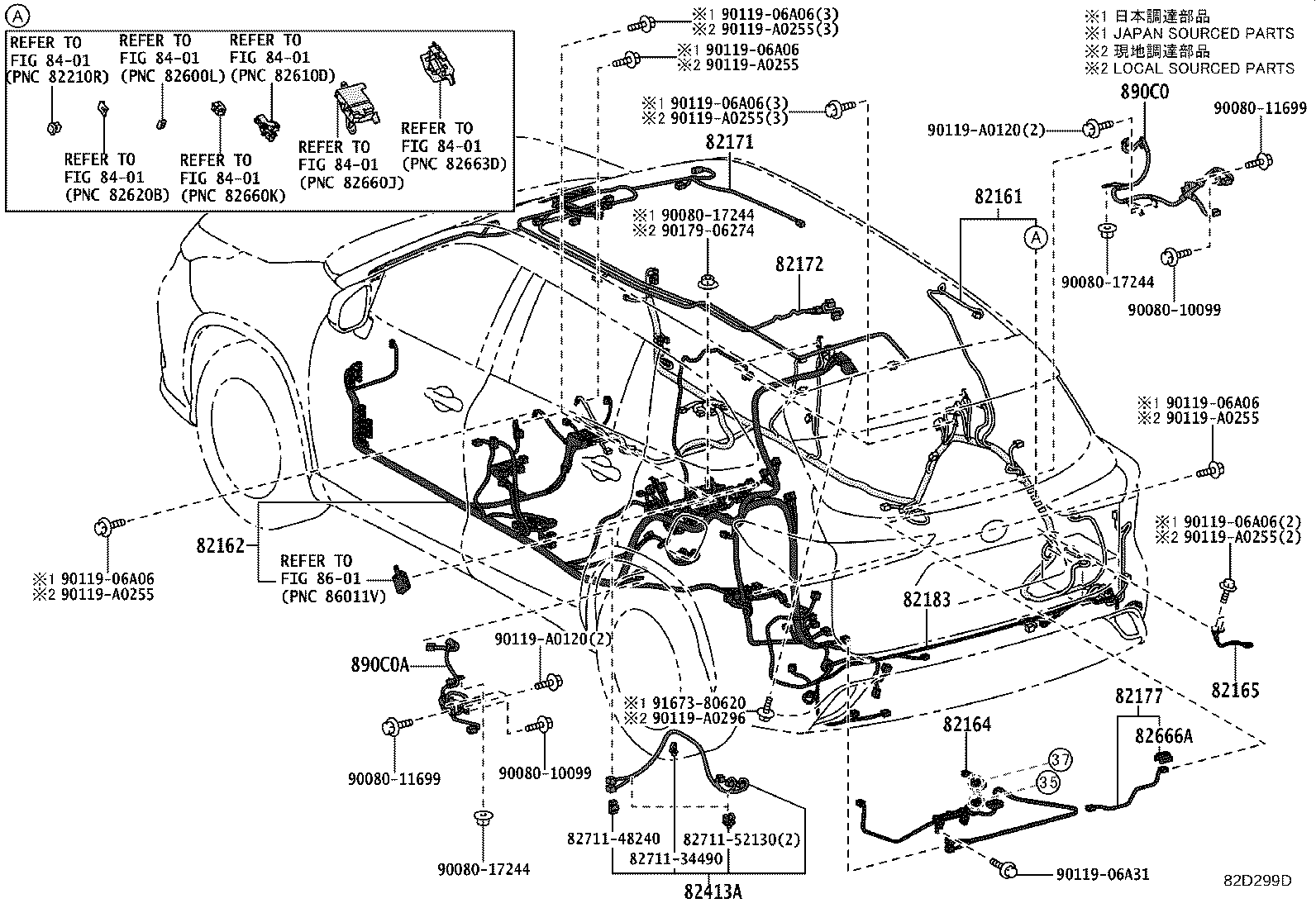

FLOOR & ROOF

diagram 82161 82162 82164 82165 82171 82172 82177 82183 82413A 82666A 8271134490 8271148240 8271152130 8401 8401 8401 8401 8401 8401 8401 890C0 890C0A 9008010099 9008010099 9008011699 9008011699 9008017244 9008017244 9008017244 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A31 90119A0120 90119A0120 90119A0255 90119A0255 90119A0255 90119A0255 90119A0255 90119A0255 90119A0296 9017906274 9167380620
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-0EN80

AXUH78..LE..ARL

LEATHER PACKAGE

 1
82161-0EN70

AXUH78..LE..ARL

 1
82162 - WIRE, FLOOR, NO.2
82162-0EP40

AXUH78..LE..ARL

 1
82162-0EP50

AXUH78..LE..ARL

LEATHER PACKAGE

 1
82162-0EP41

AXUH78..LE..ARL

 1
82162-0EP51

AXUH78..LE..ARL

LEATHER PACKAGE

 1
82164 - WIRE, FRAME
82164-0E270

AXUH78

 1
82165 - WIRE, FRAME, NO.2
82165-0E040

AXUH7#

 1
82171 - WIRE, ROOF, NO.1
82171-0EQ00

AXUH78,GSU7#..LE..ARL

 1
82177 - WIRE, REAR BODY
82177-0E040

AXUH78,GSU7#..ARL

 1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-0E200

AXUH78,GSU7#..LE..ARL

 1
82413A - WIRE, FUEL TANK
82413-0E070

AXUH7#

 1
82666A - HOLDER, CONNECTOR NO.2
82666-21040

AXUH7#,GSU7#

 1
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-0E070

AXUH78,GSU75

 1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-0E080

AXUH78,GSU75

 1
Common parts
82711-34490
82711-48240
82711-52130
90080-10099
90080-11699
90080-17244
90119-06A06
90119-06A31
90119-A0120
90119-A0255
90119-A0296
90179-06274
91673-80620
Linked diagrams
8401

ILLUST NO.23 OF29(2002- )

Click highlighted areas on diagram

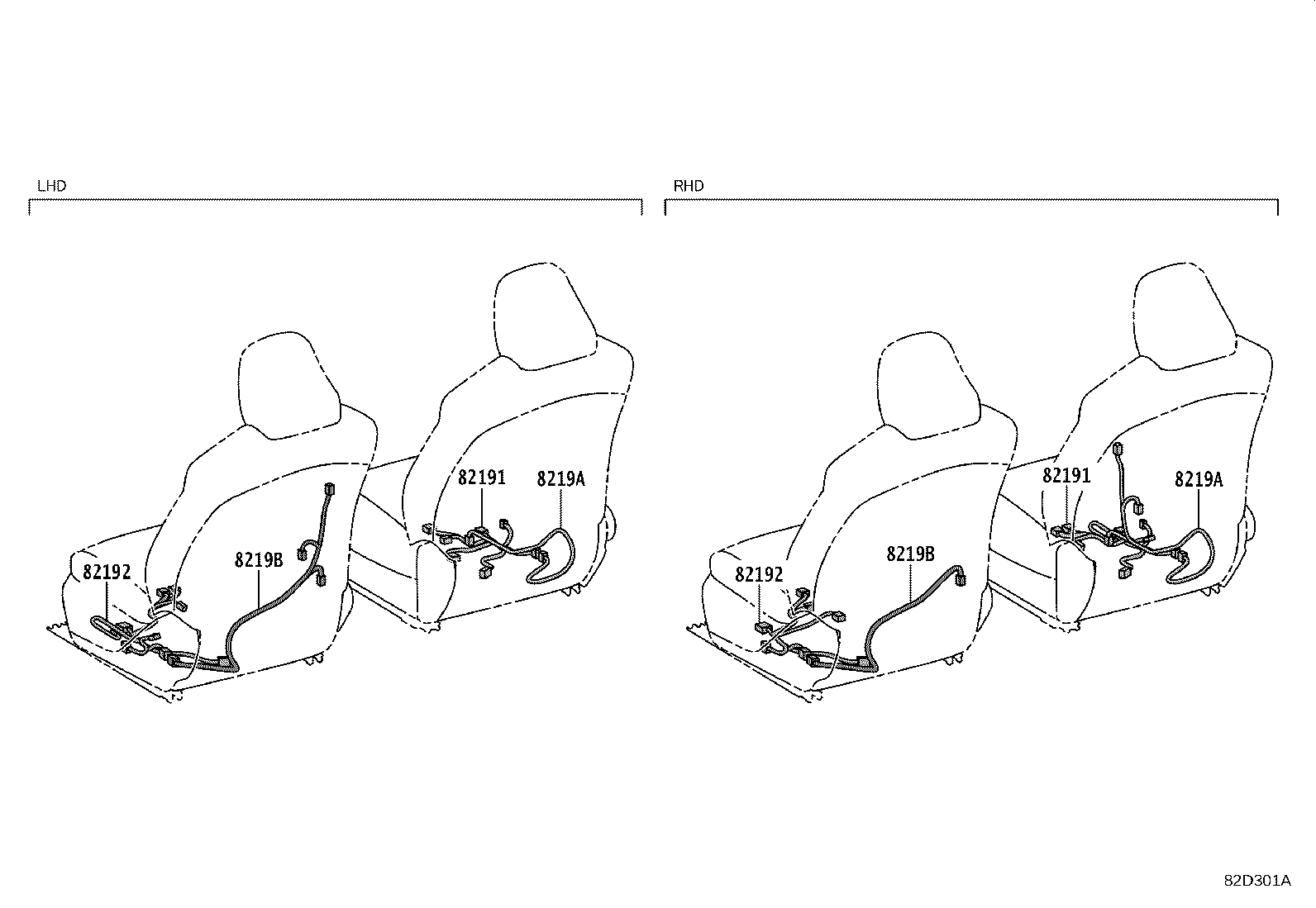

FRONT SEAT

diagram 82191 82191 82192 82192 8219A 8219A 8219B 8219B
Part # Description Qty Price
82191 - WIRE, FRONT SEAT, RH
82191-0E400

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
82191 - WIRE, FRONT SEAT, RH
82191-0E400

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
82192 - WIRE, FRONT SEAT, LH
82192-0E330

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
82192 - WIRE, FRONT SEAT, LH
82192-0E330

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-0E130

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-0E130

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-0E150

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-0E150

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1

ILLUST NO.25 OF29(2002- )

Click highlighted areas on diagram

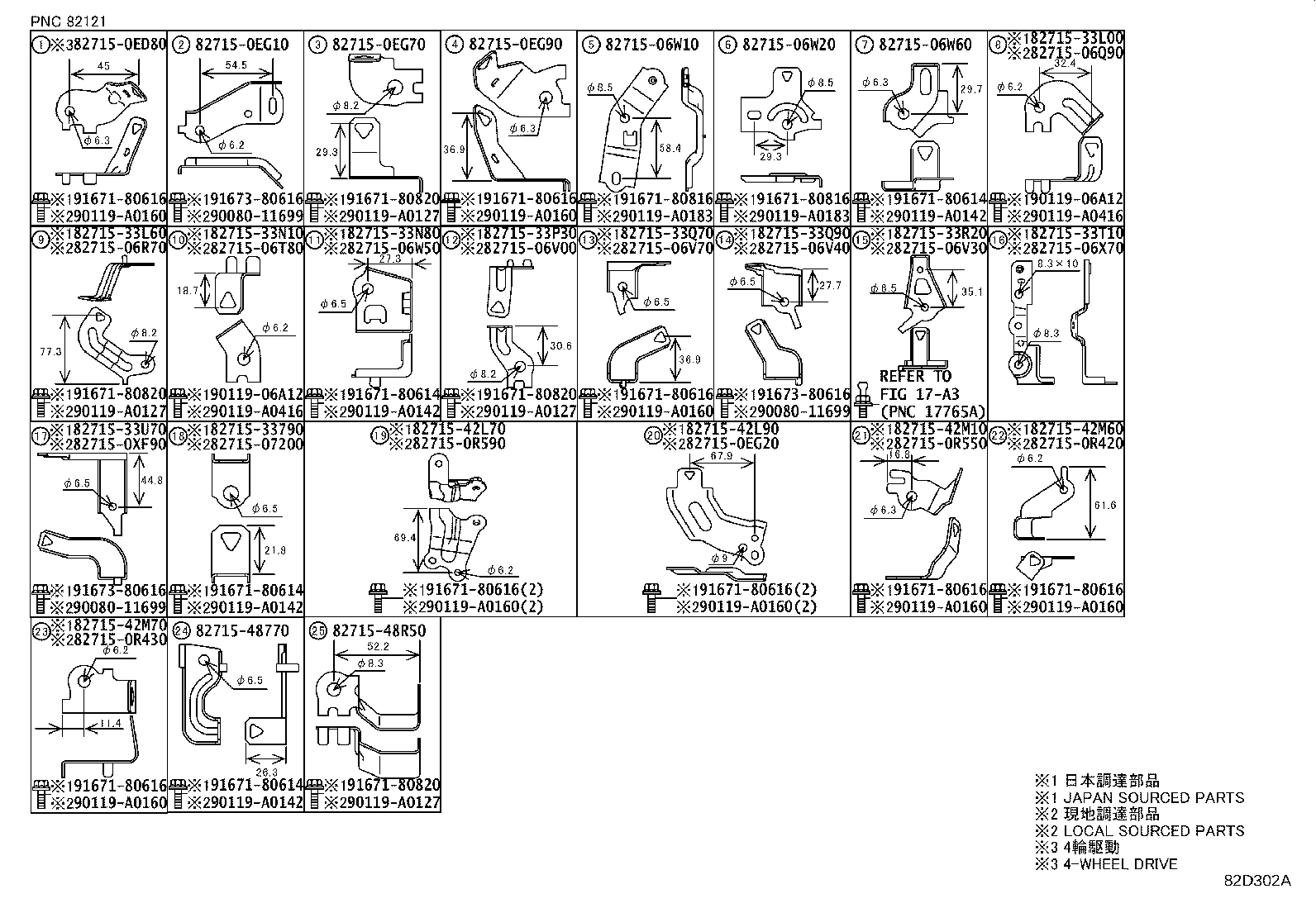

CLAMP & BRACKET 1/2

diagram 8271506Q90 8271506R70 8271506T80 8271506V00 8271506V30 8271506V40 8271506V70 8271506W10 8271506W20 8271506W50 8271506W60 8271506X70 8271507200 827150ED80 827150EG10 827150EG20 827150EG70 827150EG90 827150R420 827150R430 827150R550 827150R590 827150XF90 8271533790 8271533L00 8271533L60 8271533N10 8271533N80 8271533P30 8271533Q70 8271533Q90 8271533R20 8271533T10 8271533U70 8271542L70 8271542L90 8271542M10 8271542M60 8271542M70 8271548770 8271548R50 9008011699 9008011699 9008011699 9011906A12 9011906A12 90119A0127 90119A0127 90119A0127 90119A0127 90119A0142 90119A0142 90119A0142 90119A0142 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0183 90119A0183 90119A0416 90119A0416 9167180614 9167180614 9167180614 9167180614 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180816 9167180816 9167180820 9167180820 9167180820 9167180820 9167380616 9167380616 9167380616
Part # Description Qty Price
Common parts
82715-06Q90
82715-06R70
82715-06T80
82715-06V00
82715-06V30
82715-06V40
82715-06V70
82715-06W10
82715-06W20
82715-06W50
82715-06W60
82715-06X70
82715-07200
82715-0ED80
82715-0EG10
82715-0EG20
82715-0EG70
82715-0EG90
82715-0R420
82715-0R430
82715-0R550
82715-0R590
82715-0XF90
82715-33790
82715-33L00
82715-33L60
82715-33N10
82715-33N80
82715-33P30
82715-33Q70
82715-33Q90
82715-33R20
82715-33T10
82715-33U70
82715-42L70
82715-42L90
82715-42M10
82715-42M60
82715-42M70
82715-48770
82715-48R50
90080-11699
90119-06A12
90119-A0127
90119-A0142
90119-A0160
90119-A0183
90119-A0416
91671-80614
91671-80616
91671-80816
91671-80820
91673-80616

ILLUST NO.26 OF29(2002- )

Click highlighted areas on diagram

CLAMP & BRACKET 2/2

diagram 8271506R30 8271508221 827150EC90 827150ED70 827150EG30 827150EG80 827150EJ20 827150R440 827150R600 827150R630 827150R710 8271533L40 8271542K00 8271542L60 8271542M40 8271548L90 8271548R30 8271648010 8271748010 9008017244 9011906A12 90119A0127 90119A0142 90119A0142 90119A0160 90119A0160 90119A0160 90119A0183 90119A0264 90119A0264 90119A0264 90119A0264 9017806026 90178A0070 9017906274 9167180614 9167180616 9167180616 9167180816 9167180820 91673A0616 91673A0616 91673A0616 91673A0616
Part # Description Qty Price
Common parts
82715-06R30
82715-08221
82715-0EC90
82715-0ED70
82715-0EG30
82715-0EG80
82715-0EJ20
82715-0R440
82715-0R600
82715-0R630
82715-0R710
82715-33L40
82715-42K00
82715-42L60
82715-42M40
82715-48L90
82715-48R30
82716-48010
82717-48010
90080-17244
90119-06A12
90119-A0127
90119-A0142
90119-A0160
90119-A0183
90119-A0264
90178-06026
90178-A0070
90179-06274
91671-80614
91671-80616
91671-80816
91671-80820
91673-A0616

ILLUST NO.28 OF29(2002- )

Click highlighted areas on diagram

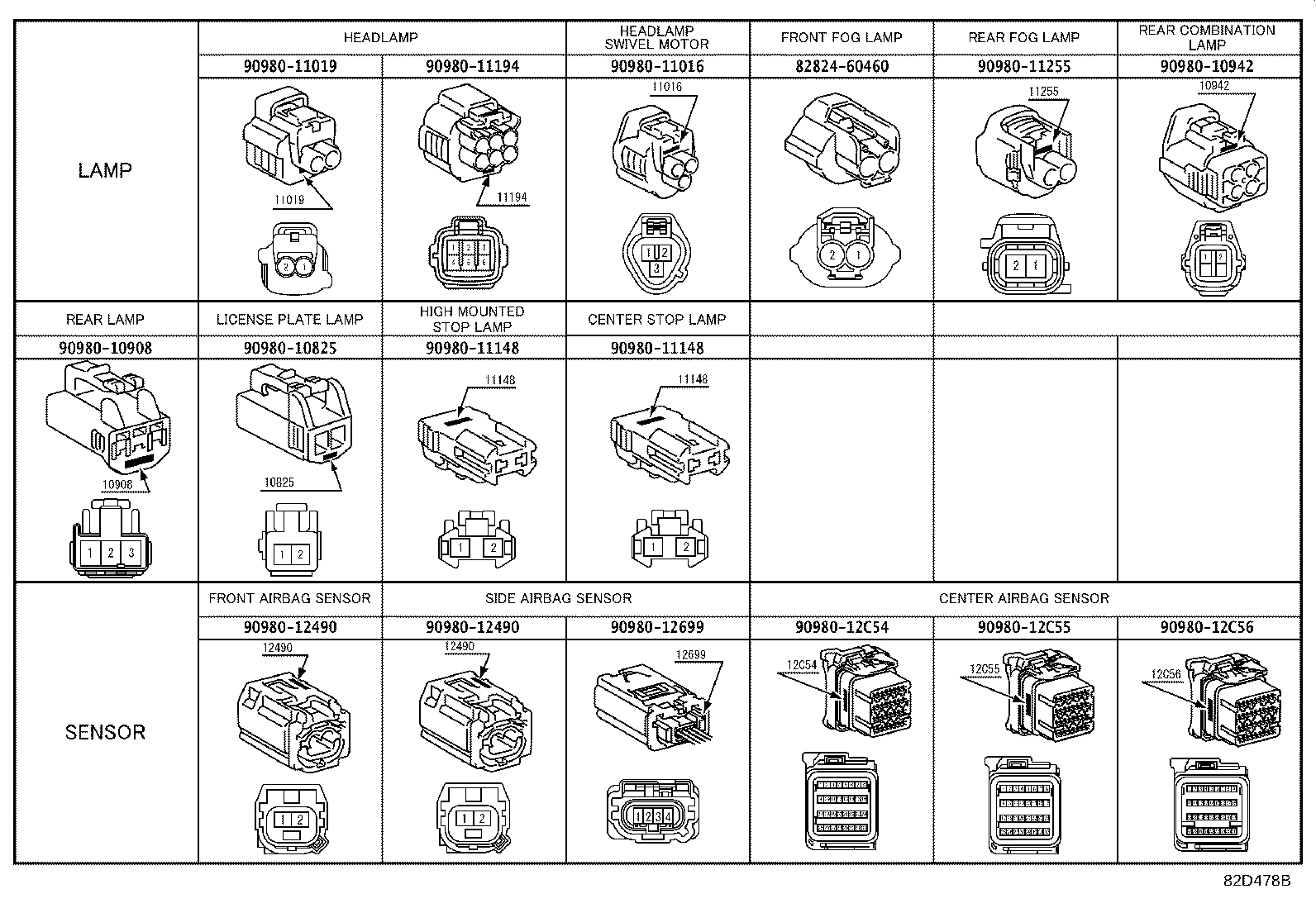

CONNECTOR 1/2

diagram 8282460460 9098010825 9098010908 9098010942 9098011016 9098011019 9098011148 9098011148 9098011194 9098011255 9098012490 9098012490 9098012699 9098012C54 9098012C55 9098012C56
Part # Description Qty Price
Common parts
82824-60460
90980-10825
90980-10908
90980-10942
90980-11016
90980-11019
90980-11148
90980-11194
90980-11255
90980-12490
90980-12699
90980-12C54
90980-12C55
90980-12C56

ILLUST NO.29 OF29(2002- )

Click highlighted areas on diagram

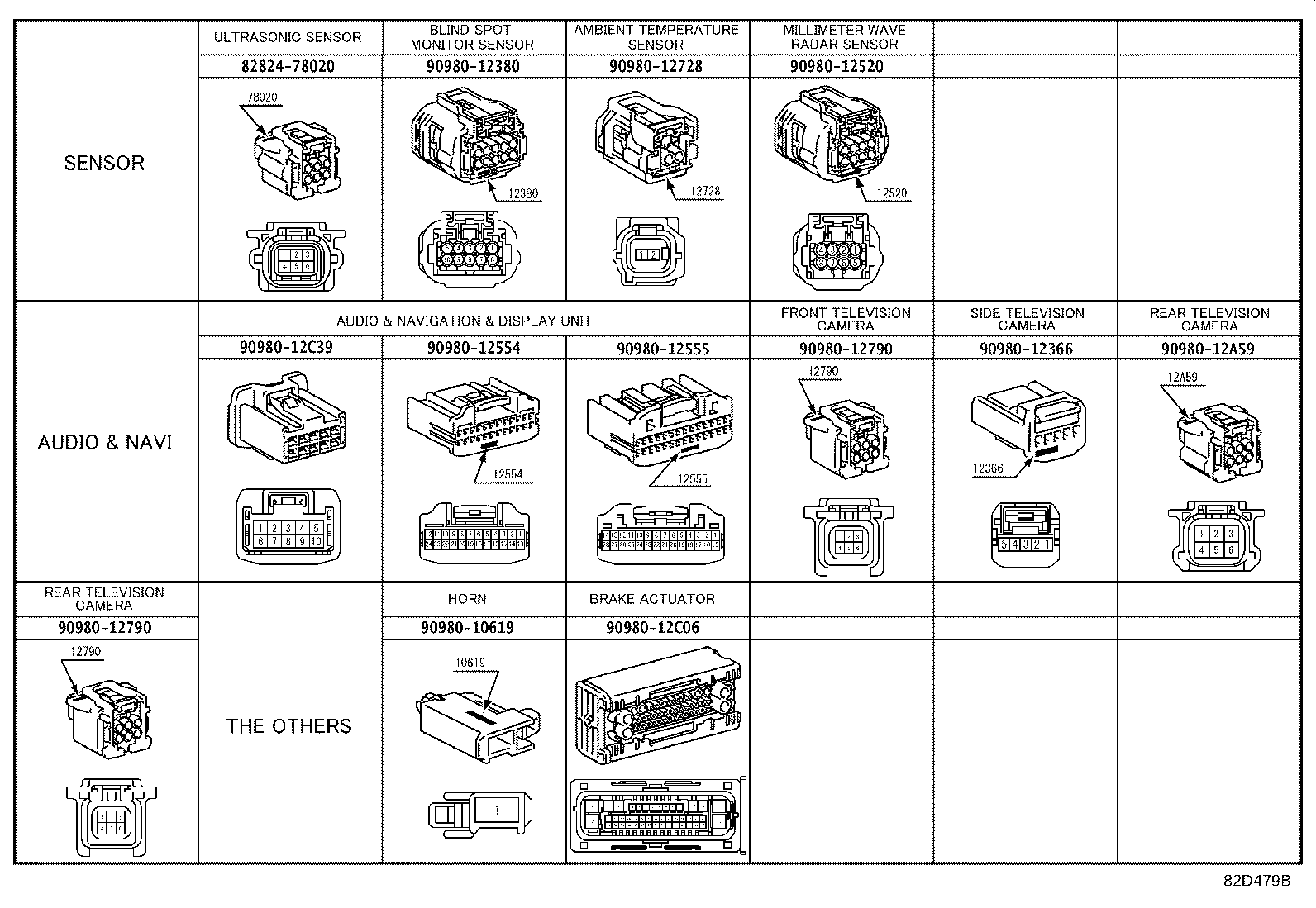

CONNECTOR 2/2

diagram 8282478020 9098010619 9098012366 9098012380 9098012520 9098012554 9098012555 9098012728 9098012790 9098012790 9098012A59 9098012C06 9098012C39
Part # Description Qty Price
Common parts
82824-78020
90980-10619
90980-12366
90980-12380
90980-12520
90980-12554
90980-12555
90980-12728
90980-12790
90980-12A59
90980-12C06
90980-12C39
