AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

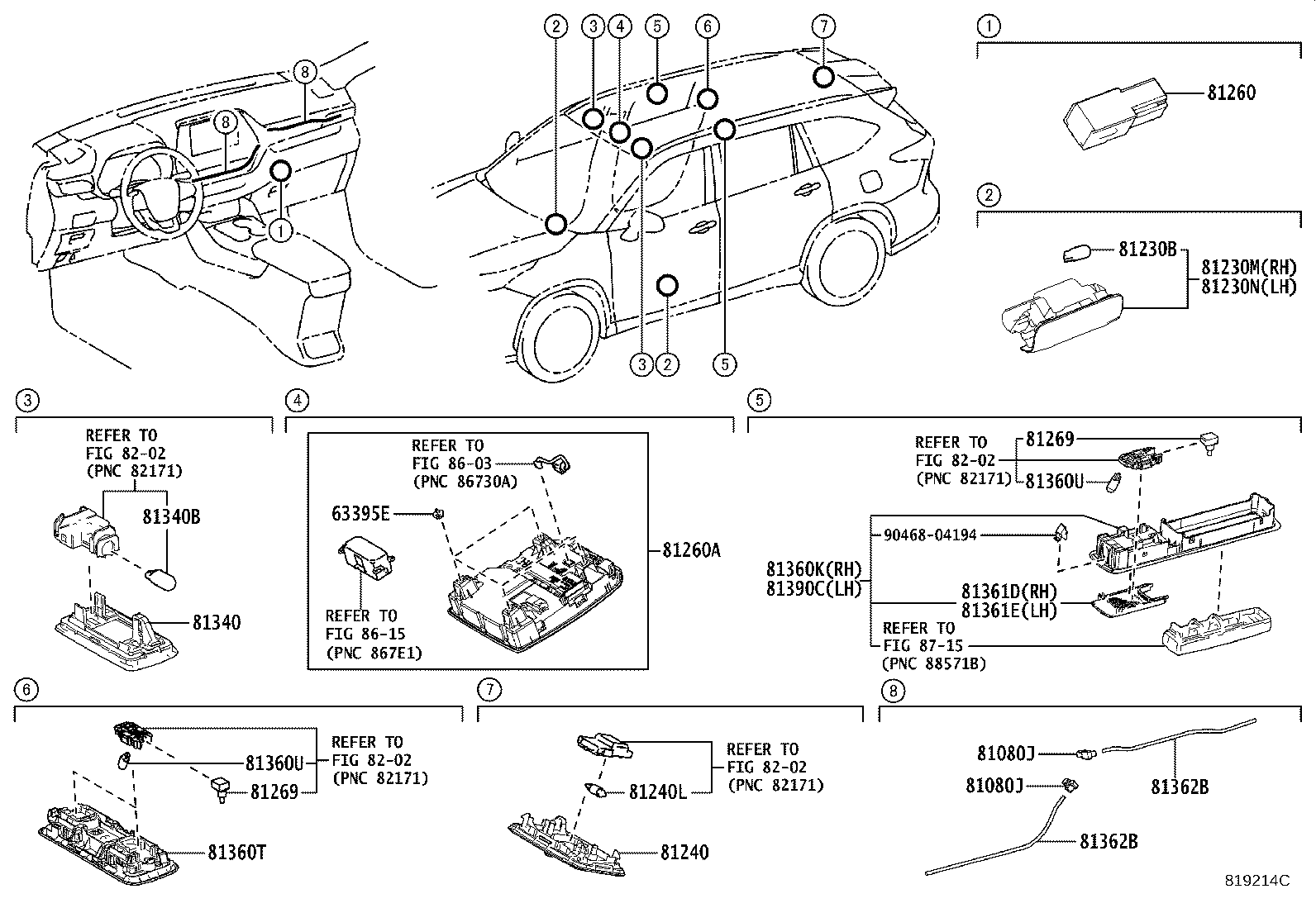

Click highlighted areas on diagram

diagram 63395E 81080J 81080J 81230B 81230M 81230N 81240 81240L 81260 81260A 81269 81269 81340 81340B 81360K 81360T 81360U 81360U 81361D 81361E 81362B 81362B 81390C 8202 8202 8202 8202 8603 8615 8715 9046804194
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXUH7#,GSU7#

 4
81230B - BULB(FOR COURTESY LAMP)
90981-12010

AXUH7#,GSU7#

12V 5W

 2
81230M - LAMP ASSY, COURTESY, RH
81230-06040

AXUH7#,GSU7#

 1
81230N - LAMP ASSY, COURTESY, LH
81230-06040

AXUH7#,GSU7#

 1
81240L - BULB, ROOM LAMP
90981-14011

AXUH7#,GSU7#

12V 8W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

AXUH7#,GSU7#

 1
81260A - LAMP ASSY, MAP
63650-0E601B0

AXUH78,GSU7#..LE..ARL

LT.GRAY,TRIM1#,2#,4#

 1
81269 - SWITCH, MAP LAMP
84532-58010

AXUH7#,GSU7#

 2
81269 - SWITCH, MAP LAMP
84532-58010

AXUH7#,GSU7#

 2
81340 - LAMP ASSY, VANITY
81340-30110

AXUH7#,GSU7#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AXUH7#,GSU7#

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-0E080B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 1
81360U - BULB, SPOT LAMP
90981-11062

AXUH7#,GSU7#

 2
81360U - BULB, SPOT LAMP
90981-11062

AXUH7#,GSU7#

 2
Common parts
90468-04194
Linked diagrams
8202
8603
8615
8715
