AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

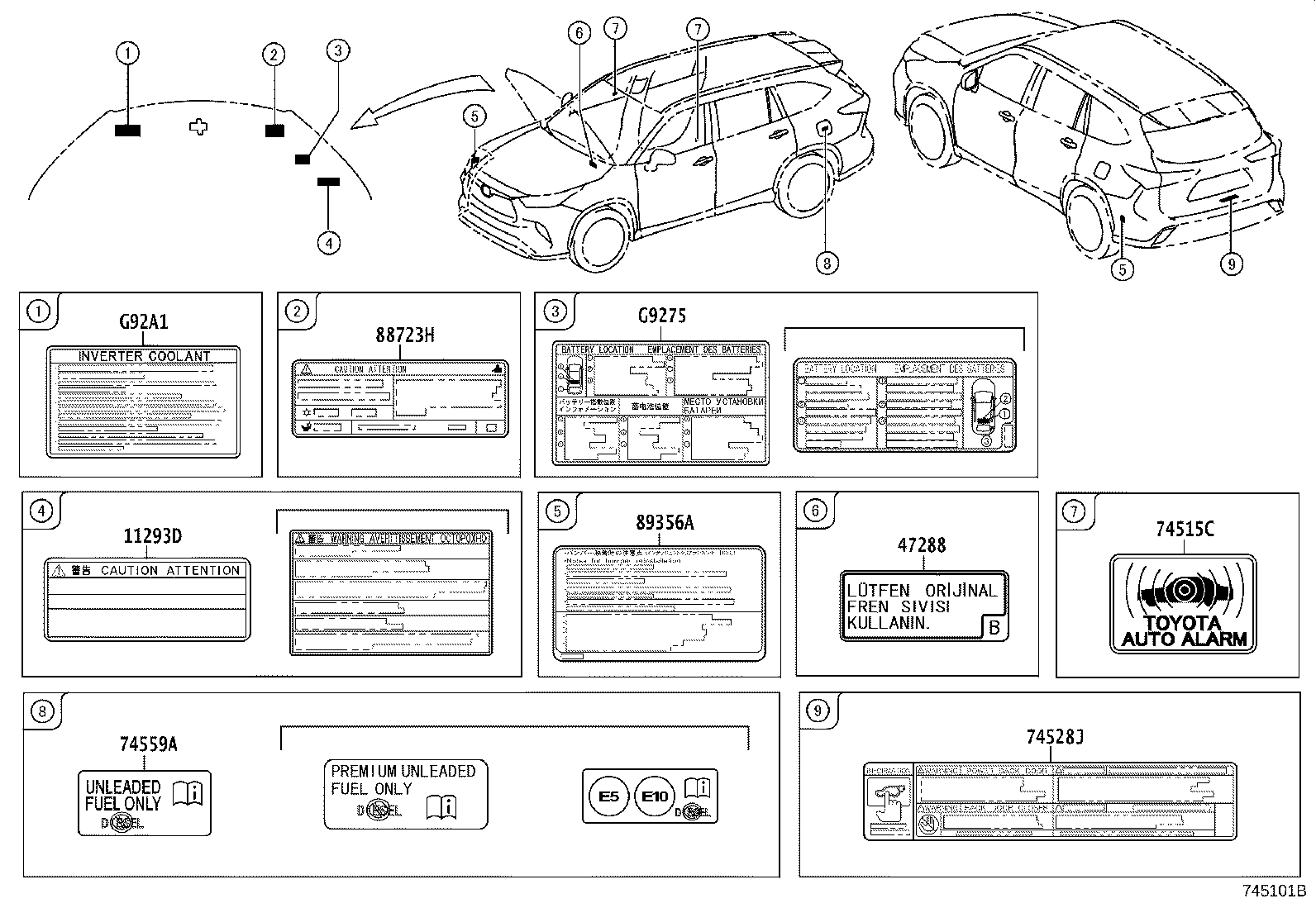

ILLUST NO. 1 OF 3(2002- )

Click highlighted areas on diagram

ENGINE ROOM, EXTERIOR

diagram 11293D 47288 74515C 74528J 74559A 88723H 89356A G9275 G92A1
Part # Description Qty Price
74528J - LABEL, POWER BACK DOOR CAUTION
74528-0E090

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE

 1
74559A - PLATE, FUEL CAUTION
74559-60030

AXUH78,GSU7#..ARL

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0E180

AXUH7#

 1

ILLUST NO. 3 OF 3(2002- )

Click highlighted areas on diagram

INTERIOR

diagram 42668 74541E 74544G 82683C
Part # Description Qty Price
74544G - LABEL, REAR NO.2 SEAT CAUTION
74544-0E060

AXUH7#,GSU7#

 1
82683C - LABEL, FUSE BLOCK NOTICE
82683-0E010

AXUH7#

 1

ILLUST NO. 2 OF 3(2002- )

Click highlighted areas on diagram

EXTERIOR

diagram 41992 74751
Part # Description Qty Price
41992 - LABEL, DIFFERENTIAL NOTICE
41992-08010

AXUH78,GSU75..ARL,EUR,GCC

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0E760

AXUH7#,GSU7#..(LE,XLE)..(ARL,GCC,RUS)

 1
