AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

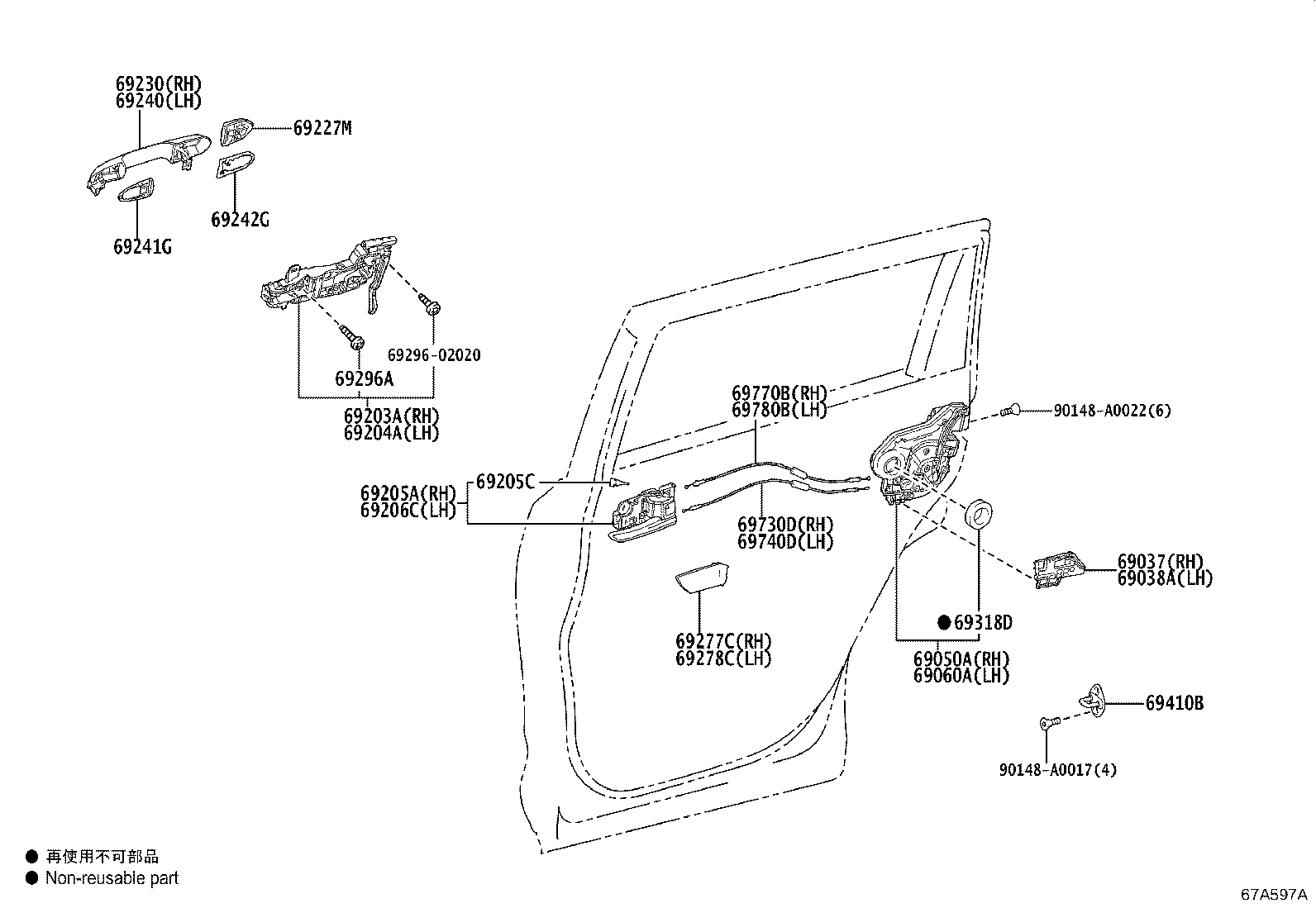

Click highlighted areas on diagram

diagram 69037 69038A 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227M 69230 69240 69241G 69242G 69277C 69278C 6929602020 69296A 69318D 69410B 69730D 69740D 69770B 69780B 90148A0017 90148A0022
Part # Description Qty Price
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-02030

AXUH7#,GSU7#

 1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-02030

AXUH7#,GSU7#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-0E070

AXUH7#,GSU7#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-0E070

AXUH7#,GSU7#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0E110

AXUH7#,GSU7#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0E110

AXUH7#,GSU7#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-06120C0

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

 1
69205-02300C0

AXUH7#,GSU7#..LE..(ARL,GCC)

BLACK,TRIM1#,2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90080-54005

AXUH7#,GSU7#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-02350C0

AXUH7#,GSU7#..LE..(ARL,GCC)

BLACK,TRIM1#,2#

 1
69206-06160C0

AXUH78,GSU7#..LE..ARL

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-0R080

AXUH7#,GSU7#

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-0R070A1

AXUH7#,GSU7#

WHITE PEARL CS.,070

 1
69211-0R070B3

AXUH7#,GSU7#

PRECIOUS GALENA,1K5

 1
69211-0R070D0

AXUH7#,GSU7#

RED MC.,3T3

 1
69211-0R070B1

AXUH7#,GSU7#

GRAY ME.,1G3

 1
69211-0R070E0

AXUH7#,GSU7#

BLACKISH BROWN MC.,4X9

 1
69211-0R070C0

AXUH7#,GSU7#

ATTITUDE BLACK MC.,218

 1
69211-0R070B2

AXUH7#,GSU7#

SILVER ME.,1J9

 1
69211-0R070J1

AXUH7#,GSU7#

DK. BLUE MC.,8X8

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-0R070A1

AXUH7#,GSU7#

WHITE PEARL CS.,070

 1
69211-0R070B1

AXUH7#,GSU7#

GRAY ME.,1G3

 1
69211-0R070D0

AXUH7#,GSU7#

RED MC.,3T3

 1
69211-0R070B2

AXUH7#,GSU7#

SILVER ME.,1J9

 1
69211-0R070C0

AXUH7#,GSU7#

ATTITUDE BLACK MC.,218

 1
69211-0R070J1

AXUH7#,GSU7#

DK. BLUE MC.,8X8

 1
69211-0R070E0

AXUH7#,GSU7#

BLACKISH BROWN MC.,4X9

 1
69211-0R070B3

AXUH7#,GSU7#

PRECIOUS GALENA,1K5

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-0R030

AXUH7#,GSU7#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-0R030

AXUH7#,GSU7#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-0E050

AXUH7#,GSU7#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-0E050

AXUH7#,GSU7#

 1
69296A - SCREW, DOOR INSIDE HANDLE
69296-06070

AXUH7#,GSU7#

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-AA010

AXUH7#,GSU7#

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-02030

AXUH7#,GSU7#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0E080

AXUH7#,GSU7#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0E080

AXUH7#,GSU7#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0E080

AXUH7#,GSU7#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-0E080

AXUH7#,GSU7#

 1
Common parts
69296-02020
90148-A0017
90148-A0022
