AXUH78R-ARXNHQ (2020)
Toyota Highlander/Kluger

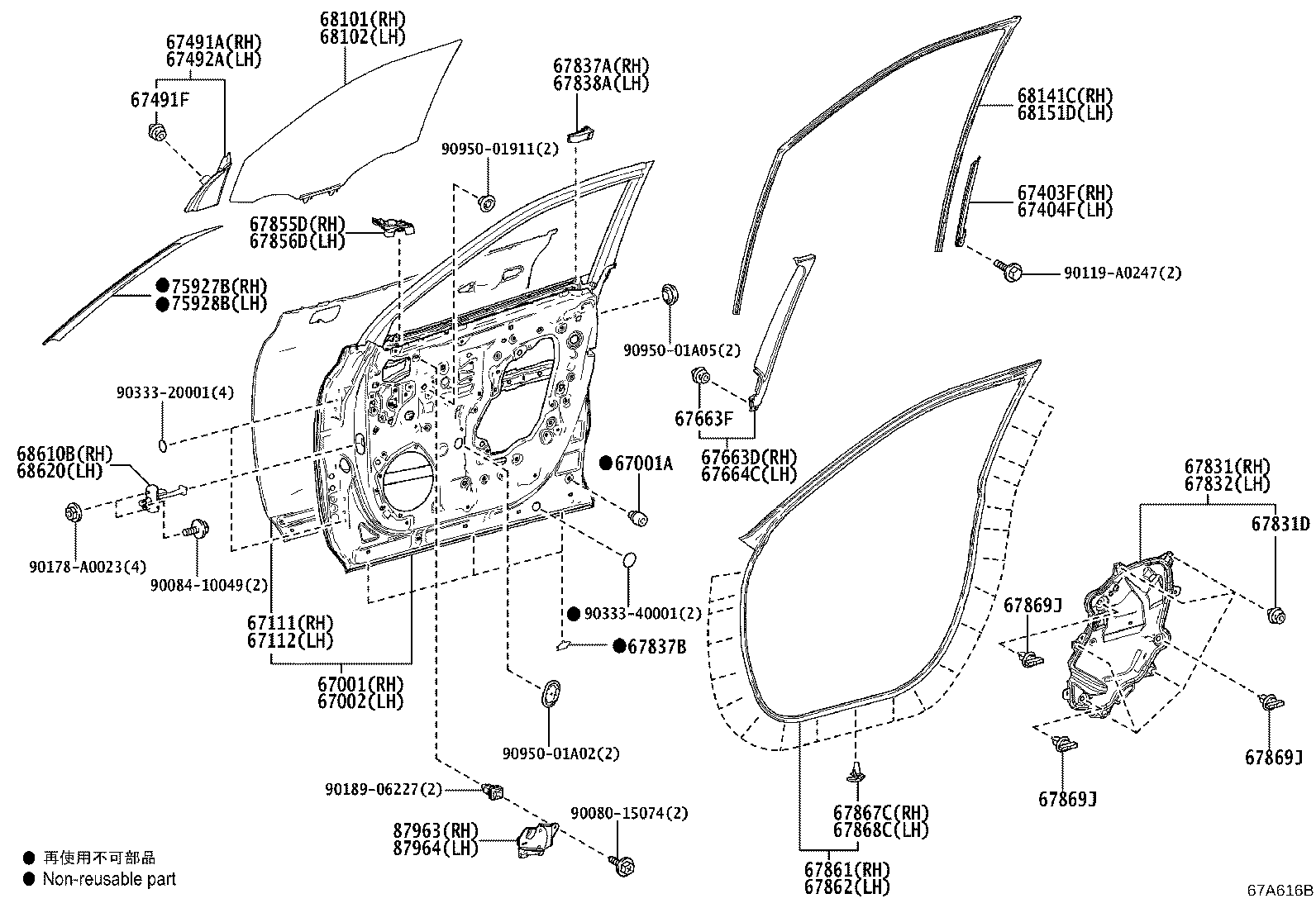

ILLUST NO. 1 OF 2(2002- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0E171 |
AXUH7#,GSU7# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
AXUH7#,GSU7# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0E171 |
AXUH7#,GSU7# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0E081 |
AXUH7#,GSU7# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0E081 |
AXUH7#,GSU7# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0E090 |
AXUH7#,GSU7# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0E090 |
AXUH7#,GSU7# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0E060 |
AXUH7#,GSU7# |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-10167 |
AXUH7#,GSU7# |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0E060 |
AXUH7#,GSU7# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0E070 |
AXUH7#,GSU7# |
1 | ||
| 67663F - CLIP(FOR DOOR FRAME GARNISH) | ||||
| 90467-A0005 |
AXUH7#,GSU7# |
2 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-0E070 |
AXUH7#,GSU7# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0E090 |
AXUH7#,GSU7# |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-A0005 |
AXUH7#,GSU7# |
10 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0E090 |
AXUH7#,GSU7# |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-0E110 |
AXUH7#,GSU7# |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-0E060 |
AXUH7#,GSU7# |
6 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-0E110 |
AXUH7#,GSU7# |
1 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-0E050 |
AXUH7#,GSU7# |
1 | ||
| 67856D - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-0E050 |
AXUH7#,GSU7# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0E090 |
AXUH7#,GSU7# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0E090 |
AXUH7#,GSU7# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXUH7#,GSU7# |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXUH7#,GSU7# |
22 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-0E010 |
AXUH7#,GSU7# |
6 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-0E010 |
AXUH7#,GSU7# |
6 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-0E010 |
AXUH7#,GSU7# |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0E110 |
AXUH7#,GSU75..LIMD..(GCC,RUS);AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0E110 |
AXUH7#,GSU75..LIMD..(GCC,RUS);AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR) |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0E080 |
AXUH7#,GSU7# |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0E080 |
AXUH7#,GSU7# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0E180 |
AXUH7#,GSU7# |
1 | ||
| 68610-0E100 |
AXUH7#,GSU7# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-0E160 |
AXUH7#,GSU7# |
1 | ||
| 68620-0E100 |
AXUH7#,GSU7# |
1 | ||
| 75927B - TAPE, BLACK OUT, NO.4 RH | ||||
| 75927-0E020 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 75928B - TAPE, BLACK OUT, NO.4 LH | ||||
| 75928-0E020 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-0E030 |
AXUH7#,GSU7# |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-0E030 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90084-10049 | ||||
| 90119-A0247 | ||||
| 90178-A0023 | ||||
| 90189-06227 | ||||
| 90333-20001 | ||||
| 90333-40001 | ||||
| 90950-01911 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||

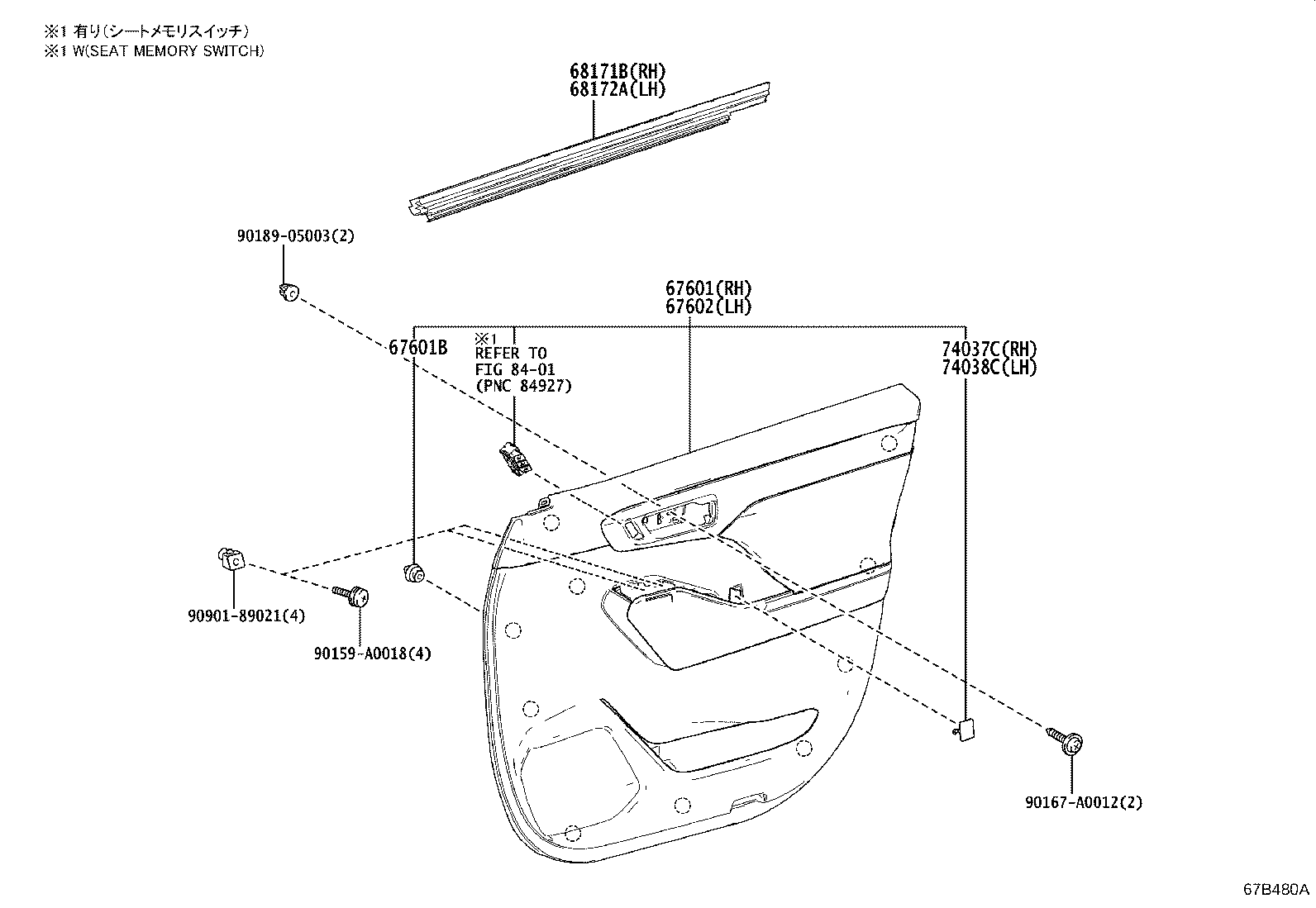

ILLUST NO. 2 OF 2(2002- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0E640C5 |
AXUH7#,GSU7#..LE..(ARL,GCC) BLACK,BLACK,GRAY,TRIM2# |
1 | ||
| 67610-0E640C4 |
AXUH7#,GSU7#..LE..(ARL,GCC) GRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-0E650C5 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,BLACK/GRAY,TRIM2# |
1 | ||
| 67610-0E650E3 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,NOBLE BROWN/IVORY,TRIM4# |
1 | ||
| 67610-0E650C4 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,GRAY/GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 |
AXUH7#,GSU7# |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0E640C4 |
AXUH7#,GSU7#..LE..(ARL,GCC) GRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-0E640C5 |
AXUH7#,GSU7#..LE..(ARL,GCC) BLACK,BLACK,GRAY,TRIM2# |
1 | ||
| 67620-0E650C4 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,GRAY/GRAY,TRIM1# |
1 | ||
| 67620-0E650E3 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,NOBLE BROWN/IVORY,TRIM4# |
1 | ||
| 67620-0E650C5 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,BLACK/GRAY,TRIM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0E080 |
AXUH7#,GSU7# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0E080 |
AXUH7#,GSU7# |
1 | ||
| 74037C - COVER SUB-ASSY, DOOR ARMREST, RH | ||||
| 74037-0E020E0 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,NOBLE BROWN,TRIM4# |
1 | ||
| 74037-0E020C0 |
AXUH7#,GSU7# BLACK,TRIM1#,2# |
1 | ||
| 74038C - COVER SUB-ASSY, DOOR ARMREST, LH | ||||
| 74038-0E020E0 |
AXUH78,GSU7#..LE..ARL LEATHER PACKAGE,NOBLE BROWN,TRIM4# |
1 | ||
| 74038-0E020C0 |
AXUH7#,GSU7# BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90159-A0018 | ||||
| 90167-A0012 | ||||
| 90189-05003 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 8401 | ||||
