AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )AXUH7#

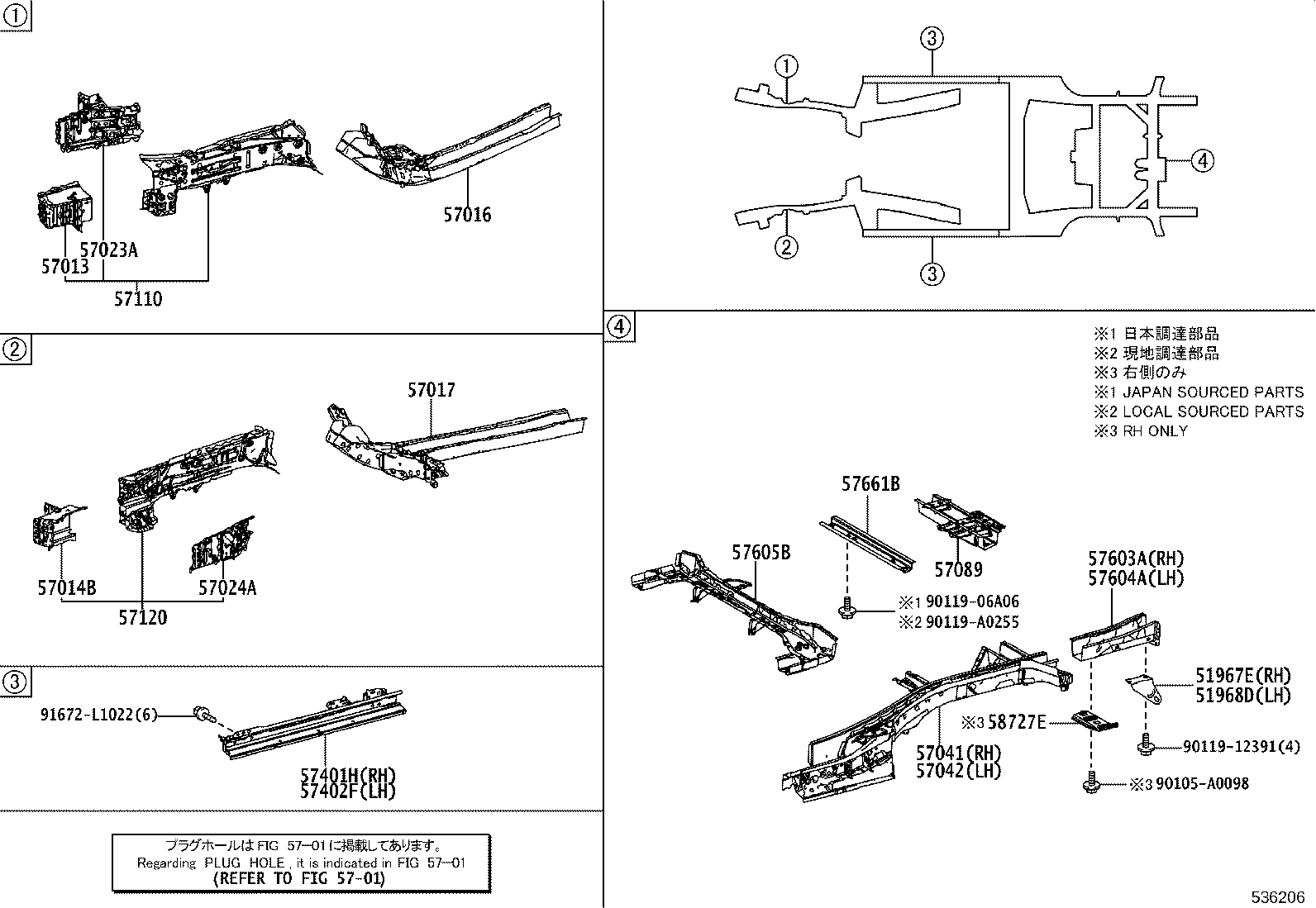

Click highlighted areas on diagram

diagram 51967E 51968D 5701 57013 57014B 57016 57017 57023A 57024A 57041 57042 57089 57110 57120 57401H 57402F 57603A 57604A 57605B 57661B 58727E 90105A0098 9011906A06 9011912391 90119A0255 91672L1022
Part # Description Qty Price
51967E - HOOK, TRANSPORT, REAR RH
51967-0E020

AXUH7#,GSU7#

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-0E020

AXUH7#,GSU7#

 1
57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0E010

AXUH7#,GSU7#

 1
57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0E010

AXUH7#,GSU7#

 1
57023A - MEMBER SUB-ASSY, REAR SIDE, RH
57023-0E010

AXUH7#,GSU7#

 1
57024A - MEMBER SUB-ASSY, REAR SIDE, LH
57024-0E010

AXUH7#,GSU7#

 1
57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57041-0E060

AXUH7#

 1
57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57042-0E060

AXUH7#

 1
57089 - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.6
57089-0E030

AXUH7#,GSU7#

 1
57110 - MEMBER ASSY, FRONT SIDE, RH
57110-0E010

AXUH7#,GSU7#

 1
57120 - MEMBER ASSY, FRONT SIDE, LH
57120-0E010

AXUH7#,GSU7#

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-0E080

AXUH7#,GSU7#

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-0E080

AXUH7#,GSU7#

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57606-0E070

AXUH7#,GSU7#

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57607-0E080

AXUH7#,GSU7#

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-0E100

AXUH7#

 1
57661B - MEMBER, REAR FLOOR CROSS, FRONT
57661-0E011

AXUH7#

 1
58727E - PLATE, ENGINE SERVICE COVER, NO.1
58727-0E010

AXUH7#,GSU7#

 1
Common parts
90105-A0098
90119-06A06
90119-12391
90119-A0255
91672-L1022
Linked diagrams
5701
