AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

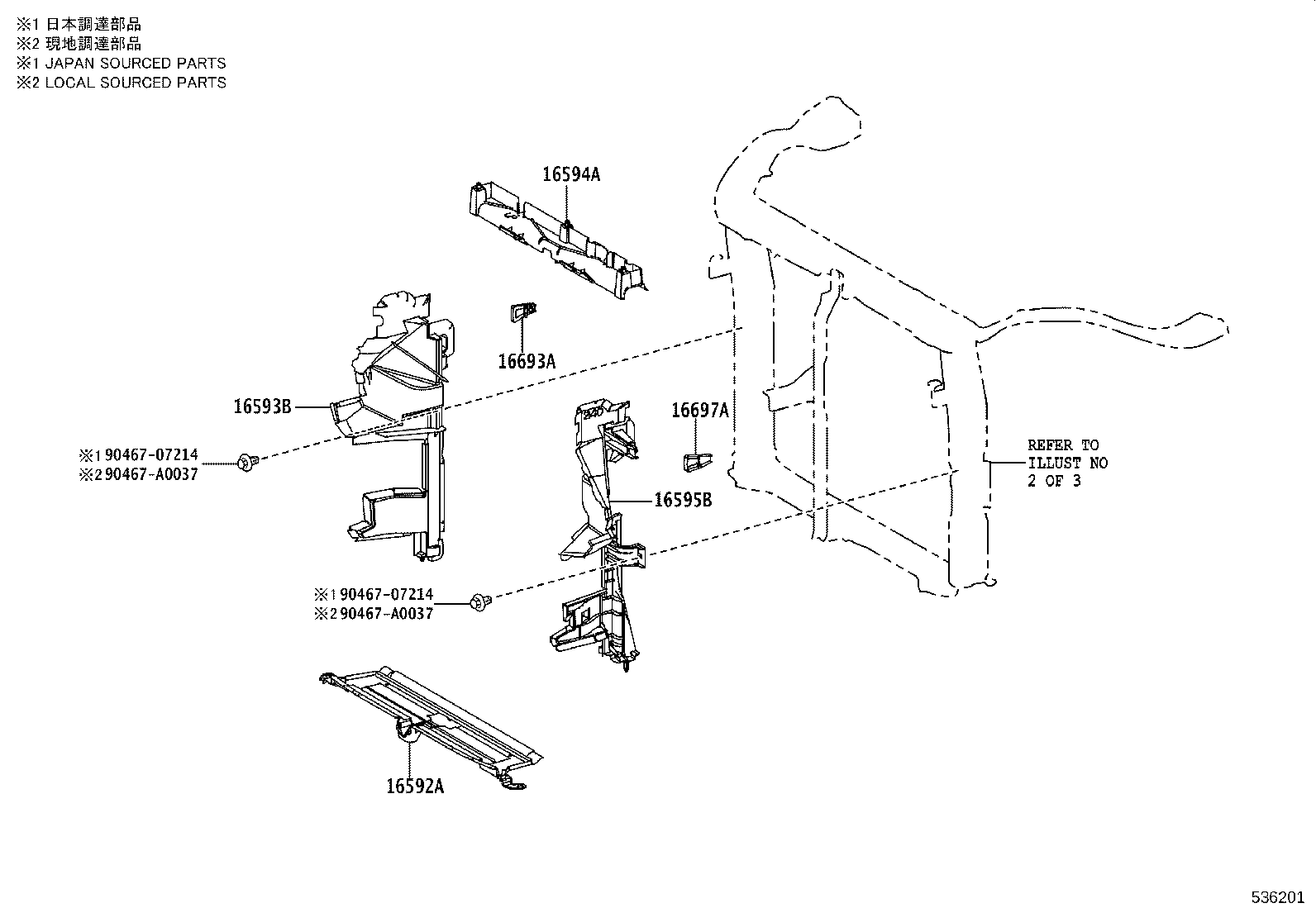

ILLUST NO. 1 OF 3(2002- )AXUH7#..ARL,GCC

Click highlighted areas on diagram

AIRGUIDE & RADIATOR SUPPORT COVER

diagram 16592A 16593B 16594A 16595B 16693A 16697A 9046707214 9046707214 90467A0037 90467A0037
Part # Description Qty Price
16592A - GUIDE, RADIATOR AIR, NO.3
16592-0P010

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-F0230

A25AFXS..AXUH7#..ARL,GCC

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-0P010

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-F0240

A25AFXS..AXUH7#..ARL,GCC

 1
16693A - PLATE, RADIATOR SIDE AIR GUIDE, REAR RH
16693-0P010

A25AFXS,2GRFKS..AXUH7#,GSU7#..ARL,GCC,RUS

 1
16697A - PLATE, RADIATOR SIDE AIR GUIDE, REAR LH
16693-0P010

A25AFXS,2GRFKS..AXUH7#,GSU7#..ARL,GCC,RUS

 1
Common parts
90467-07214
90467-A0037

ILLUST NO. 2 OF 3(2002- )AXUH7#

Click highlighted areas on diagram

RADIATOR SUPPORT & FENDER APRON

diagram 52081A 52082A 53202 53203 53205 53217A 53218A 53295E 53295J 53295J 53301G 53301G 53384G 53701 53702 53713C 53714C 53731D 53732D 53733J 53734G 53736 53737B 53747A 53748A 53783A 53784A 53785A 53786B 53787A 53788A 53835H 53836G 53837D 53838D 53868 53868A 53869B 53869E 55721A 55722B 57104A 57225A 57226A 9008010343 9008010343 9008010343 9008011218 9008011218 90109A0060 90119A0451 90119A0451 9046710216 9046710216
Part # Description Qty Price
52081A - STAY SUB-ASSY, FRONT BUMPER, RH
52081-0E010

AXUH7#,GSU7#

 1
52082A - STAY SUB-ASSY, FRONT BUMPER, LH
52081-0E010

AXUH7#,GSU7#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0E903

AXUH7#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0E903

AXUH7#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0E901

AXUH7#,GSU7#

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-0E080

AXUH7#,GSU7#

 1
53218A - SUPPORT, RADIATOR, LOWER
53218-0E100

AXUH7#,GSU7#

 1
53295E - SEAL, COOL AIR INTAKE DUCT
53295-0E120

AXUH7#,GSU7#

 1
53295J - CLIP, COOL AIR INTAKE DUCT SEAL
90467-07217

AXUH7#,GSU7#

 9
53295J - CLIP, COOL AIR INTAKE DUCT SEAL
90467-07217

AXUH7#,GSU7#

 9
53301G - CUSHION, HOOD BUMPER
90541-15111

AXUH7#,GSU7#

 2
53301G - CUSHION, HOOD BUMPER
90541-15111

AXUH7#,GSU7#

 2
53384G - CUSHION, HOOD, CENTER
53384-0E010

AXUH7#,GSU7#

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0E100

AXUH7#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0E090

AXUH7#

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-0E010

AXUH7#,GSU7#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-0E010

AXUH7#,GSU7#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-0E070

AXUH7#,GSU7#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-0E080

AXUH7#,GSU7#

 1
53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53733-0E070

AXUH7#,GSU7#

 1
53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53734-0E070

AXUH7#,GSU7#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-0R040

AXUH7#,GSU7#

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-0R010

AXUH7#,GSU7#

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-0E020

AXUH7#,GSU7#

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-0E020

AXUH7#,GSU7#

 1
53783A - INSULATOR, APRON FRONT FENDER, RH
53783-0E050

AXUH7#

 1
53784A - INSULATOR, APRON FRONT FENDER, LH
53784-0E020

AXUH7#

 1
53785A - GUSSET, FRONT FENDER APRON, UPPER RH
53785-0E010

AXUH7#,GSU7#

 1
53786B - GUSSET, FRONT FENDER APRON, UPPER LH
53786-0E010

AXUH7#,GSU7#

 1
53787A - GUSSET, FRONT FENDER APRON, LOWER RH
53787-0E010

AXUH7#,GSU7#

 1
53788A - GUSSET, FRONT FENDER APRON, LOWER LH
53788-0E010

AXUH7#,GSU7#

 1
53835H - BRACE, FRONT FENDER TO EXTENSION, RH
53835-0E080

AXUH7#,GSU7#

 1
53836G - BRACE, FRONT FENDER TO EXTENSION, LH
53836-0E080

AXUH7#,GSU7#

 1
53837D - BRACKET, FRONT SIDE PANEL, NO.2 RH
53837-0E080

AXUH7#,GSU7#

 1
53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH
53838-0E080

AXUH7#,GSU7#

 1
53868 - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868-11010

AXUH7#,GSU7#

 1
53868A - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868-11010

AXUH7#,GSU7#

 1
53869B - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53868-11010

AXUH7#,GSU7#

 1
53869E - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53868-11010

AXUH7#,GSU7#

 1
55721A - BRACE, COWL TOP TO COWL, INNER NO.1
55721-0E070

AXUH7#

 1
55722B - BRACE, COWL TOP TO COWL, INNER NO.2
55722-0E070

AXUH7#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-0E070

AXUH7#

 1
57225A - BRACE, FRONT MOUNTING BRACKET, RH
57225-0E050

AXUH7#,GSU7#

 1
57226A - BRACE, FRONT MOUNTING BRACKET, LH
57226-0E090

AXUH7#,GSU7#

 1
Common parts
90080-10343
90080-11218
90109-A0060
90119-A0451
90467-10216
