AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )A25AFXS

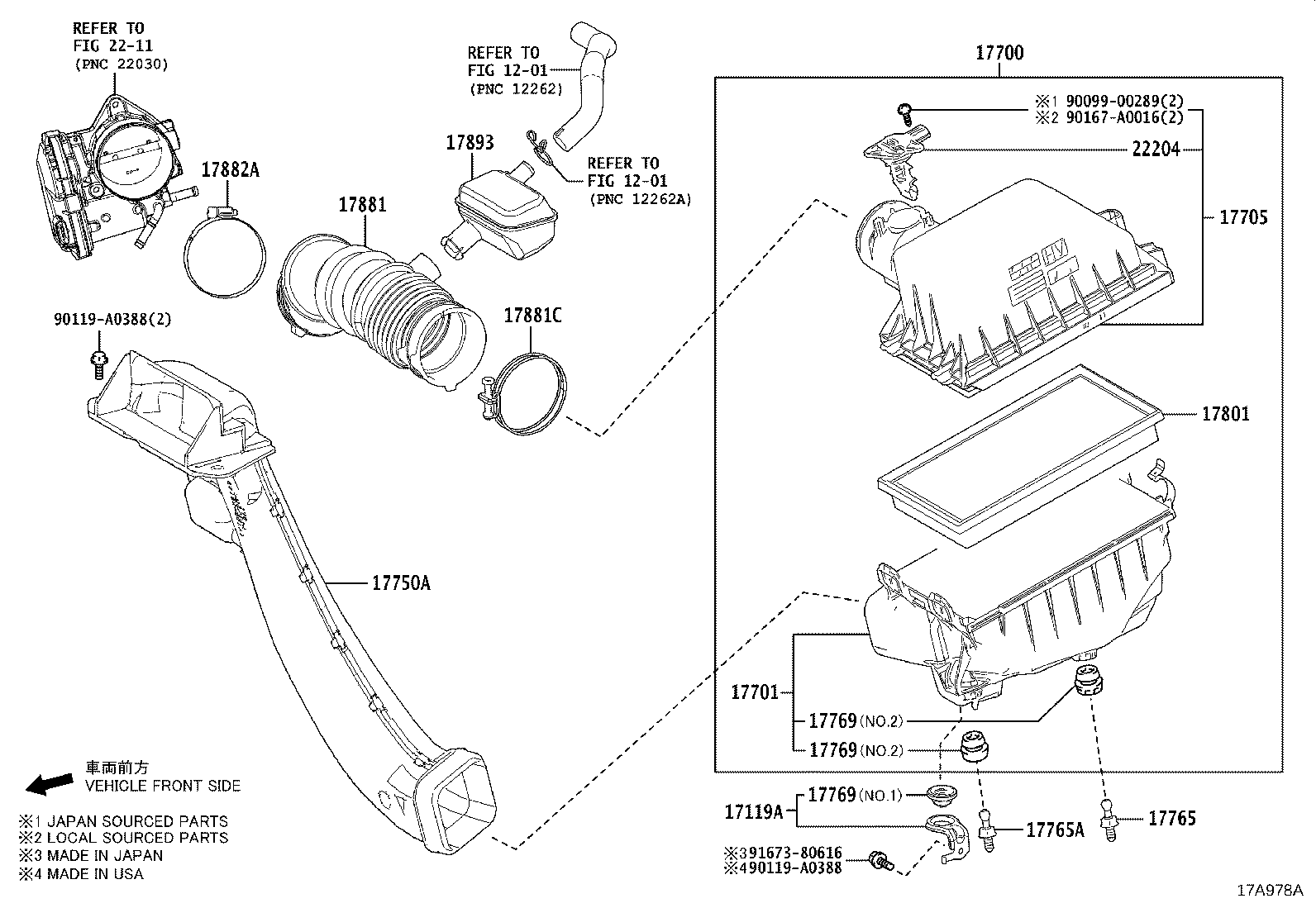

Click highlighted areas on diagram

diagram 1201 1201 17119A 17700 17701 17705 17750A 17765 17765A 17769 17769 17769 17801 17881 17881C 17882A 17893 2211 22204 9009900289 90119A0388 90119A0388 90167A0016 9167380616
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-F0010

A25AFXS..AXUH7#

 1
17700 - CLEANER ASSY, AIR
17700-F0270

A25AFXS..AXUH7#..ARL,GCC

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-F0170

A25AFXS..AXUH7#..ARL,GCC

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-F0220

A25AFXS..AXUH7#..ARL,GCC

 1
17750A - INLET ASSY, AIR CLEANER
17750-F0140

A25AFXS..AXUH7#

 1
17765 - STAY, AIR CLEANER, NO.1
17765-25010

A25AFXS..AXUH7#

 1
17765A - STAY, AIR CLEANER, NO.1
17765-25010

A25AFXS..AXUH7#

 1
17769 - SUPPORT, AIR CLEANER
17769-25020

A25AFXS..AXUH7#

NO.1:REFER ILLUST.

 1
17769-25030

A25AFXS..AXUH7#

NO.2:REFER ILLUST.

 2
17769 - SUPPORT, AIR CLEANER
17769-25020

A25AFXS..AXUH7#

NO.1:REFER ILLUST.

 1
17769-25030

A25AFXS..AXUH7#

NO.2:REFER ILLUST.

 2
17769 - SUPPORT, AIR CLEANER
17769-25020

A25AFXS..AXUH7#

NO.1:REFER ILLUST.

 1
17769-25030

A25AFXS..AXUH7#

NO.2:REFER ILLUST.

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-F0020

A25AFXS..AXUH7#

(L)

 1
17801-77050

A25AFXS..AXUH7#

(J)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-F0160

A25AFXS..AXUH7#

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

A25AFXS..AXUH7#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17891-31010

A25AFXS..AXUH7#

 1
17893 - RESONATOR, INTAKE AIR
17893-F0230

A25AFXS..AXUH7#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

A25AFXS..AXUH7#

 1
Common parts
90099-00289
90119-A0388
90167-A0016
91673-80616
Linked diagrams
1201
2211
