AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )A25AFXS

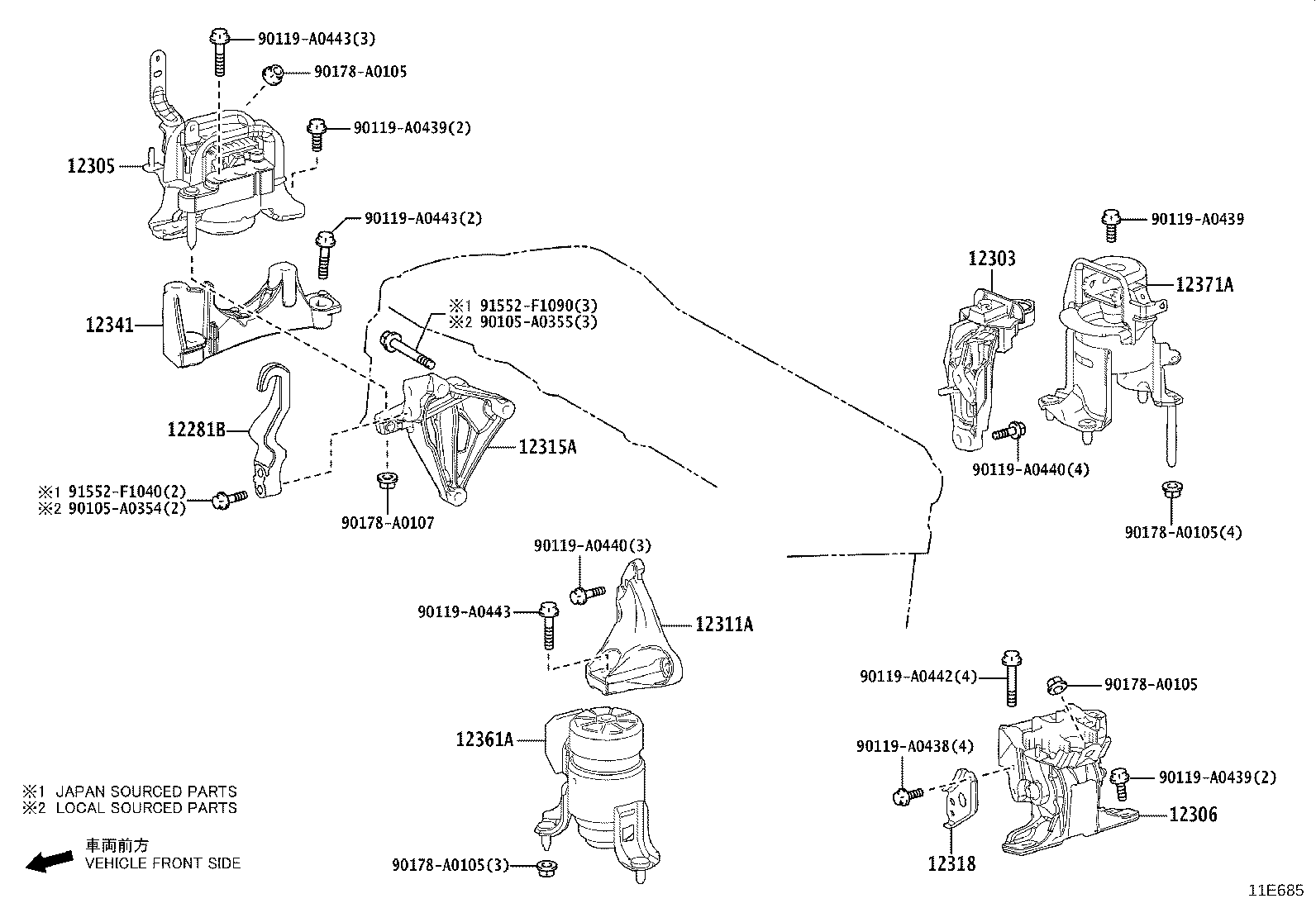

Click highlighted areas on diagram

diagram 12281B 12303 12305 12306 12311A 12315A 12318 12341 12361A 12371A 90105A0354 90105A0355 90119A0438 90119A0439 90119A0439 90119A0439 90119A0440 90119A0440 90119A0442 90119A0443 90119A0443 90119A0443 90178A0105 90178A0105 90178A0105 90178A0105 90178A0107 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

A25AFXS..AXUH7#

*636,*489

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-F0140

A25AFXS..AXUH7#

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-F0150

A25AFXS..AXUH7#

 1
12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12306-F0080

A25AFXS..AXUH7#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-F0120

A25AFXS..AXUH7#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-25031

A25AFXS..AXUH7#

*489,*636

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-F0110

A25AFXS..AXUH7#

 1
12341 - SPACER, ENGINE MOUNTING
12341-F0010

A25AFXS..AXUH7#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-F0210

A25AFXS..AXUH7#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-F0170

A25AFXS..AXUH7#

 1
Common parts
90105-A0354
90105-A0355
90119-A0438
90119-A0439
90119-A0440
90119-A0442
90119-A0443
90178-A0105
90178-A0107
91552-F1040
91552-F1090
