AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )A25AFXS

Click highlighted areas on diagram

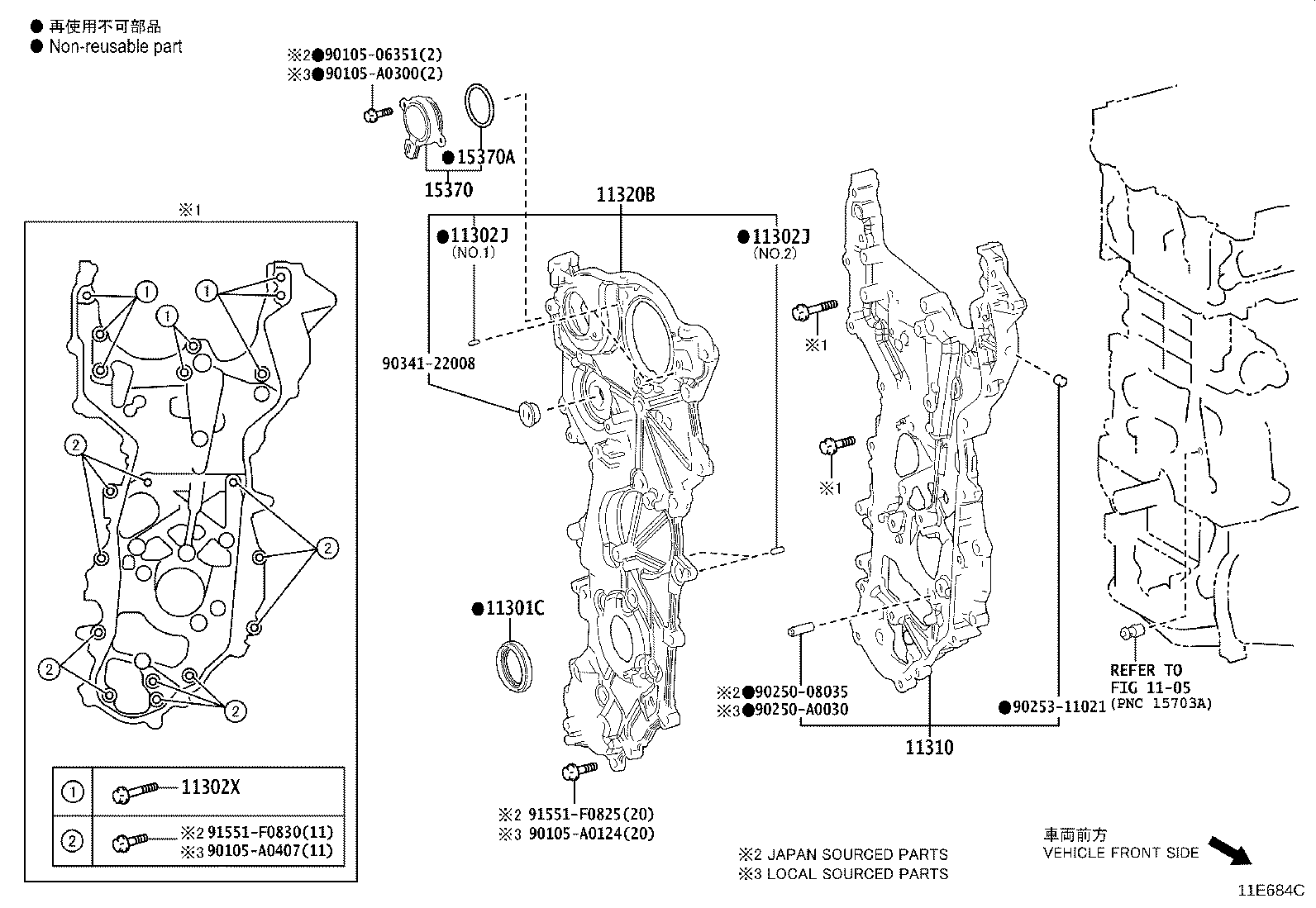

diagram 1105 11301C 11302J 11302J 11302X 11310 11320B 15370 15370A 9010506351 90105A0124 90105A0300 90105A0407 9025008035 90250A0030 9025311021 9034122008 91551F0825 91551F0830
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044

A25AFXS..AXUH7#

*636

 1
90311-A0033

A25AFXS..AXUH7#

*489

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

A25AFXS..AXUH7#

*636,NO.1:REFER ILL.

 2
90250-A0028

A25AFXS..AXUH7#

*489,NO.2:REFER ILL.

 2
90250-06003

A25AFXS..AXUH7#

*636,NO.2:REFER ILL.

 2
90250-A0029

A25AFXS..AXUH7#

*489,NO.1:REFER ILL.

 2
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

A25AFXS..AXUH7#

*636,NO.1:REFER ILL.

 2
90250-A0028

A25AFXS..AXUH7#

*489,NO.2:REFER ILL.

 2
90250-06003

A25AFXS..AXUH7#

*636,NO.2:REFER ILL.

 2
90250-A0029

A25AFXS..AXUH7#

*489,NO.1:REFER ILL.

 2
11302X - BOLT, FLANGE
90105-A0408

A25AFXS..AXUH7#

*489

 8
91551-F0845

A25AFXS..AXUH7#

*636

 8
11310 - COVER ASSY, TIMING CHAIN
11310-25030

A25AFXS..AXUH7#

*636

 1
11310-F0010

A25AFXS..AXUH7#

*489

 1
11320B - COVER ASSY, TIMING CHAIN, NO.2
11320-F0010

A25AFXS..AXUH7#

*489

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-F0020

A25AFXS..AXUH7#

*489

 1
15370-25020

A25AFXS..AXUH7#

*636

 1
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006

A25AFXS..AXUH7#

*636,*489,(J)

 1
90301-T0079

A25AFXS..AXUH7#

*489,(L)

 1
Common parts
90105-06351
90105-A0124
90105-A0300
90105-A0407
90250-08035
90250-A0030
90253-11021
90341-22008
91551-F0825
91551-F0830
Linked diagrams
1105
