AXUH78R-ARXNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

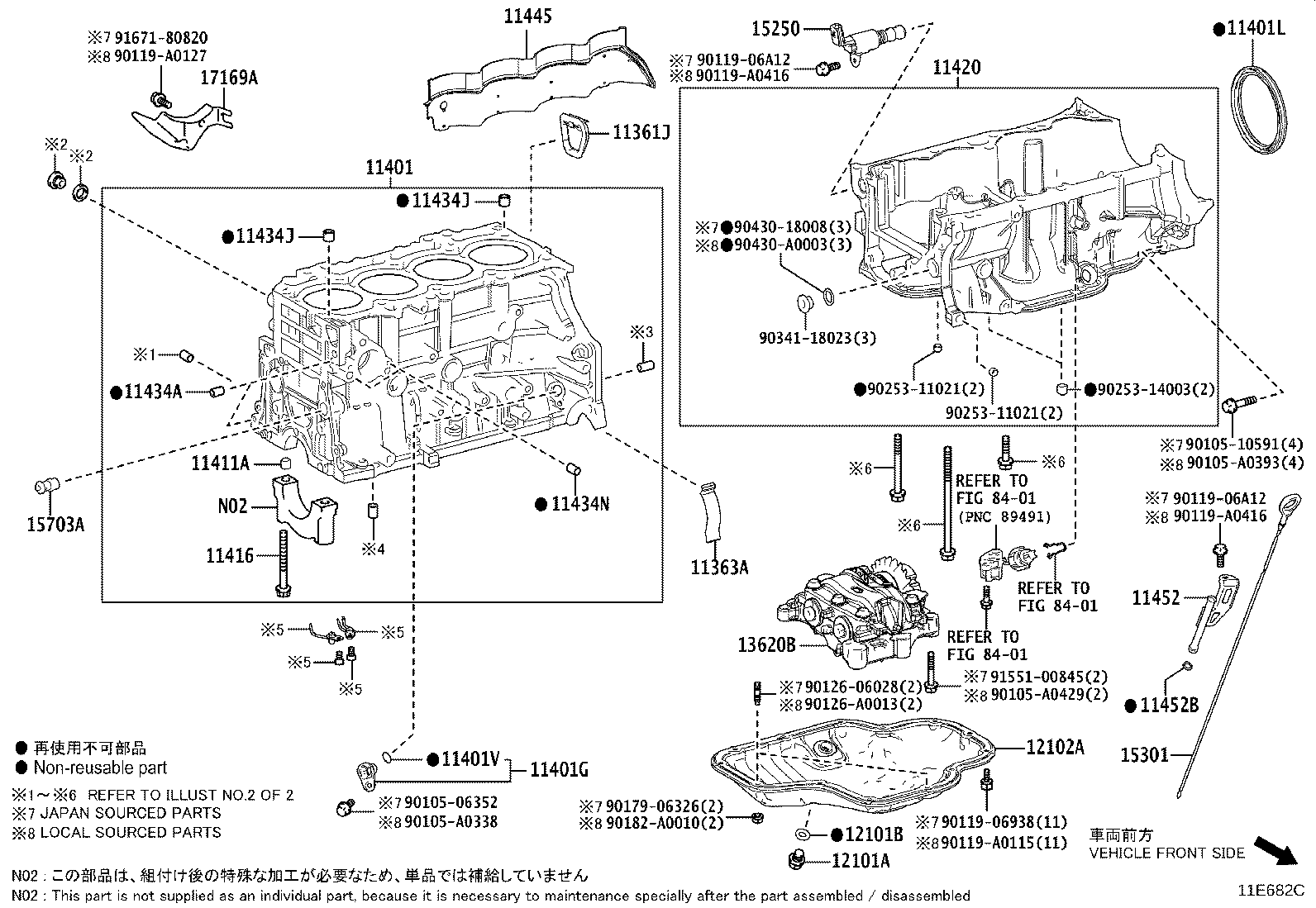

ILLUST NO. 1 OF 2(2002- )A25AFXS

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401G 11401L 11401V 11411A 11416 11420 11434A 11434J 11434J 11434N 11445 11452 11452B 12101A 12101B 12102A 13620B 15250 15301 15703A 17169A 8401 8401 8401 9010506352 9010510591 90105A0338 90105A0393 90105A0429 9011906938 9011906A12 9011906A12 90119A0115 90119A0127 90119A0416 90119A0416 9012606028 90126A0013 9017906326 90182A0010 9025311021 9025311021 9025314003 9034118023 9043018008 90430A0003 9155100845 9167180820
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-25010

A25AFXS..AXUH7#

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-33010

A25AFXS..AXUH7#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-F9060

A25AFXS..AXUH7#

*489,(L)

 1
11410-29515

A25AFXS..AXUH7#

*636,*489,(J)

 1
11401G - SENSOR, CRANK POSITION
90919-05095

A25AFXS..AXUH7#

*636

 1
90919-A5006

A25AFXS..AXUH7#

*489

 1
11401L - SEAL, ENGINE REAR OIL
90311-A0035

A25AFXS..AXUH7#

*489

 1
90311-90010

A25AFXS..AXUH7#

*636

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-11039

A25AFXS..AXUH7#

*489,*636

 1
11411A - PIN, RING(FOR CYLINDER BLOCK NO.1 )
90253-14003

A25AFXS..AXUH7#

*489,*636

 10
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02197

A25AFXS..AXUH7#

*636,*489,(J)

 10
90910-A2015

A25AFXS..AXUH7#

*489,(L)

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-F0010

A25AFXS..AXUH7#

*489

 1
11420-25010

A25AFXS..AXUH7#

*636

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-A0028

A25AFXS..AXUH7#

L=14,OD=6,*489,(L)

 2
90250-06003

A25AFXS..AXUH7#

L=14,OD=6,*636,*489,(J)

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

A25AFXS..AXUH7#

*489,*636

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

A25AFXS..AXUH7#

*489,*636

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-A0028

A25AFXS..AXUH7#

*489,(L)

 2
90250-06003

A25AFXS..AXUH7#

*636,*489,(J)

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-25010

A25AFXS..AXUH7#

*636

 1
11445-F0010

A25AFXS..AXUH7#

*489

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-25010

A25AFXS..AXUH7#

*636

 1
11452-F0010

A25AFXS..AXUH7#

*489

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

A25AFXS..AXUH7#

*636,*489

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

A25AFXS..AXUH7#

*636

 1
90341-A0007

A25AFXS..AXUH7#

*489

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

A25AFXS..AXUH7#

*636

 1
90430-A0006

A25AFXS..AXUH7#

*489

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-25010

A25AFXS..AXUH7#

*636

 1
12102-F0010

A25AFXS..AXUH7#

*489

 1
13620B - BALANCER ASSY, ENGINE
13620-F0010

A25AFXS..AXUH7#

*489

 1
13620-25010

A25AFXS..AXUH7#

*636

 1
15250 - VALVE ASSY, OIL PRESSURE CONTROL
15250-25010

A25AFXS..AXUH7#

*636,*489

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-25030

A25AFXS..AXUH7#

*636

 1
15301-F0010

A25AFXS..AXUH7#

*489

 1
15703A - VALVE SUB-ASSY, OIL NOZZLE
15703-25011

A25AFXS..AXUH7#

*489,*636

 1
17169A - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-25030

A25AFXS..AXUH7#

*489,*636

 1
Common parts
90105-06352
90105-10591
90105-A0338
90105-A0393
90105-A0429
90119-06938
90119-06A12
90119-A0115
90119-A0127
90119-A0416
90126-06028
90126-A0013
90179-06326
90182-A0010
90253-11021
90253-14003
90341-18023
90430-18008
90430-A0003
91551-00845
91671-80820
Linked diagrams
8401

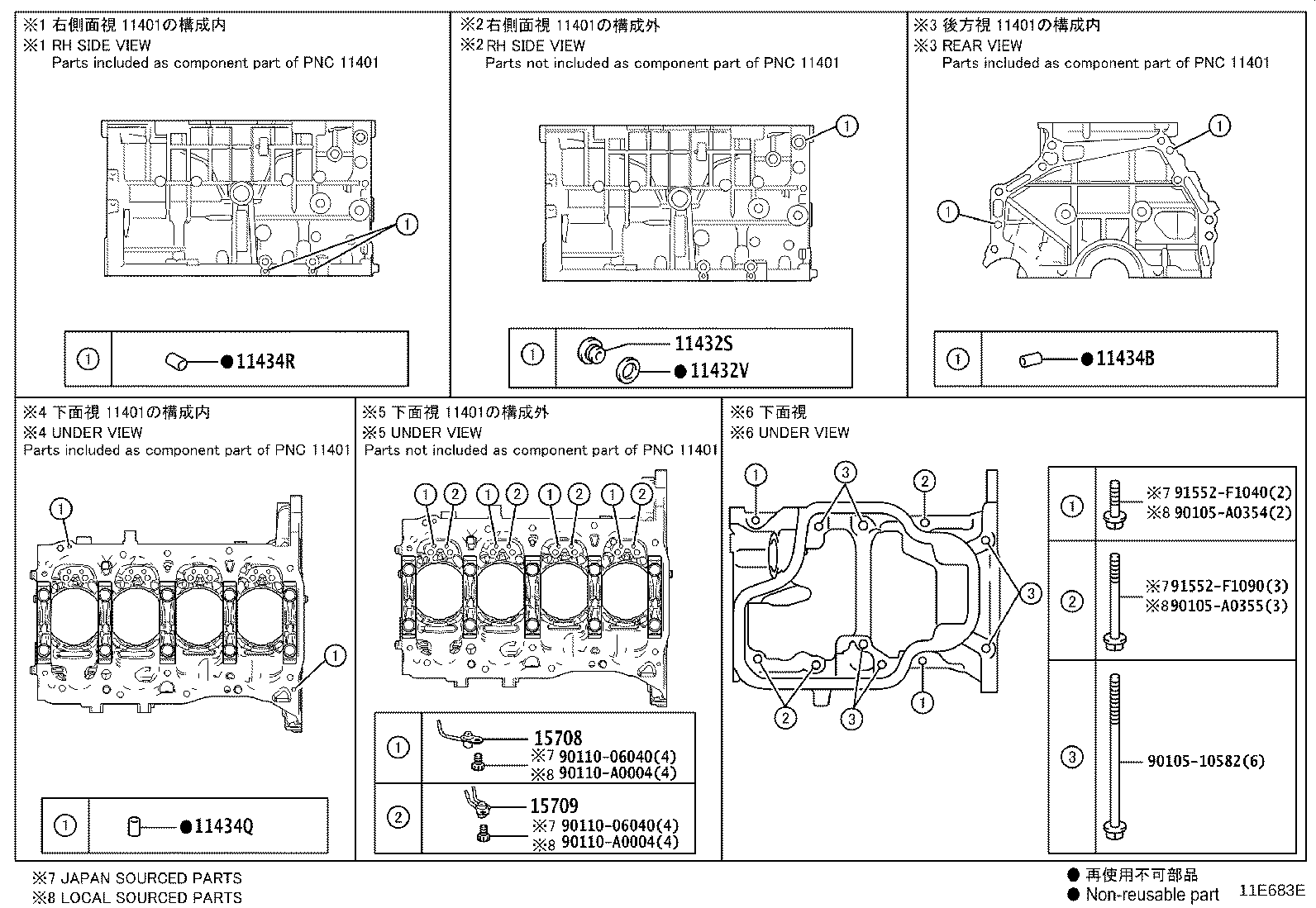

ILLUST NO. 2 OF 2(2002- )A25AFXS

Click highlighted areas on diagram

diagram 11432S 11432V 11434B 11434Q 11434R 15708 15709 9010510582 90105A0354 90105A0355 9011006040 9011006040 90110A0004 90110A0004 91552F1040 91552F1090
Part # Description Qty Price
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-12012

A25AFXS..AXUH7#

 1
11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
90430-A0006

A25AFXS..AXUH7#

(L)

 1
90430-12031

A25AFXS..AXUH7#

(J)

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

A25AFXS..AXUH7#

L=22,OD=10,*489,*636

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-A0028

A25AFXS..AXUH7#

L=14,OD=6,*489,(L)

 2
90250-06003

A25AFXS..AXUH7#

L=14,OD=6,*636,*489,(J)

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-A0028

A25AFXS..AXUH7#

*489,(L)

 2
90250-06003

A25AFXS..AXUH7#

*636,*489,(J)

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-25010

A25AFXS..AXUH7#

*489,*636

 4
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-25010

A25AFXS..AXUH7#

*636,*489

 4
Common parts
90105-10582
90105-A0354
90105-A0355
90110-06040
90110-A0004
91552-F1040
91552-F1090
