AXUH78R-ARXMHW (2020)

Toyota Highlander/Kluger

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(2011- )

Click highlighted areas on diagram

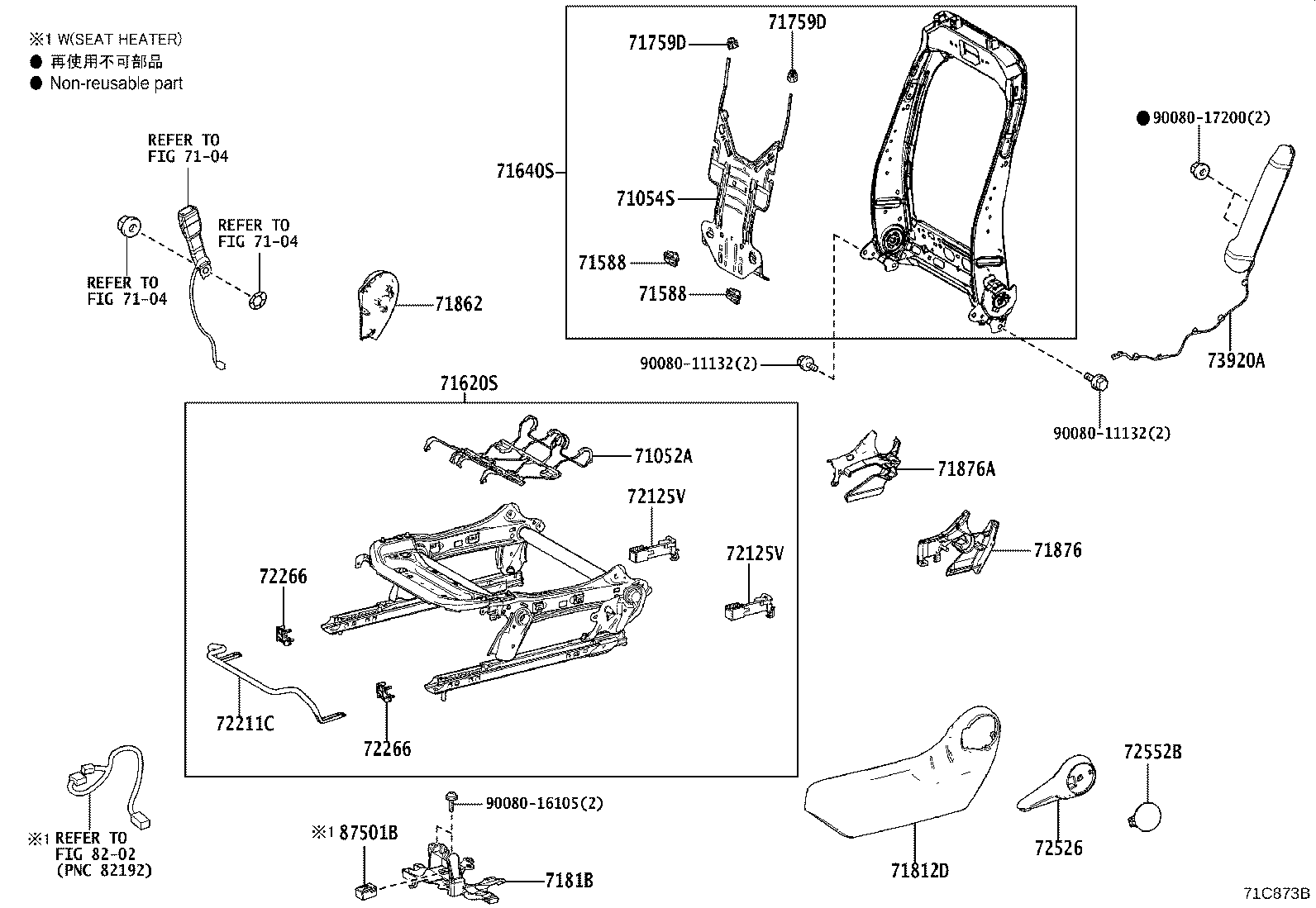

LH SEAT(MANUAL-4WAY)

diagram 7104 7104 7104 71052A 71054S 71588 71588 71620S 71640S 71759D 71759D 71812D 7181B 71862 71876 71876A 72125V 72125V 72211C 72266 72266 72526 72552B 73920A 8202 87501B 9008011132 9008011132 9008016105 9008017200
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-02360

AXUH7#,GSU7#

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0R020

AXUH78..RHD..EUR;AXUH78,GSU7#..LE..ARL

 1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71587-0R010

AXUH7#,GSU7#

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71587-0R010

AXUH7#,GSU7#

 2
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0E230

AXUH78..RHD..XLE

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0R180

AXUH78..RHD..XLE

 1
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0R020

AXUH7#,GSU7#

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0R020

AXUH7#,GSU7#

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0E240C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-0R020

AXUH78,GSU7#..RHD..(LIMD,XLE)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0E110C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-0E130C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-0E140C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
72125V - COVER, SEAT TRACK, UPPER REAR LH
72125-0R010

AXUH78..RHD..XLE

 2
72125V - COVER, SEAT TRACK, UPPER REAR LH
72125-0R010

AXUH78..RHD..XLE

 2
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0R030

AXUH78..RHD..XLE

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0R010

AXUH78..RHD..XLE

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0R010

AXUH78..RHD..XLE

 2
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0E070C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0E100

AXUH78,GSU7#..ARL,EUR

 1
87501B - CONTROL SUB-ASSY, SEAT HEATER, LH
87501-0R030

GSU75..LE..RUS;AXUH78..LIMD..GCC;AXUH70,GSU7#..LIMD;AXUH78..(LIMD,XLE)..(ARL,EUR)

 1
Common parts
90080-11132
90080-16105
90080-17200
Linked diagrams
7104
8202

ILLUST NO. 2 OF 3(2011- )

Click highlighted areas on diagram

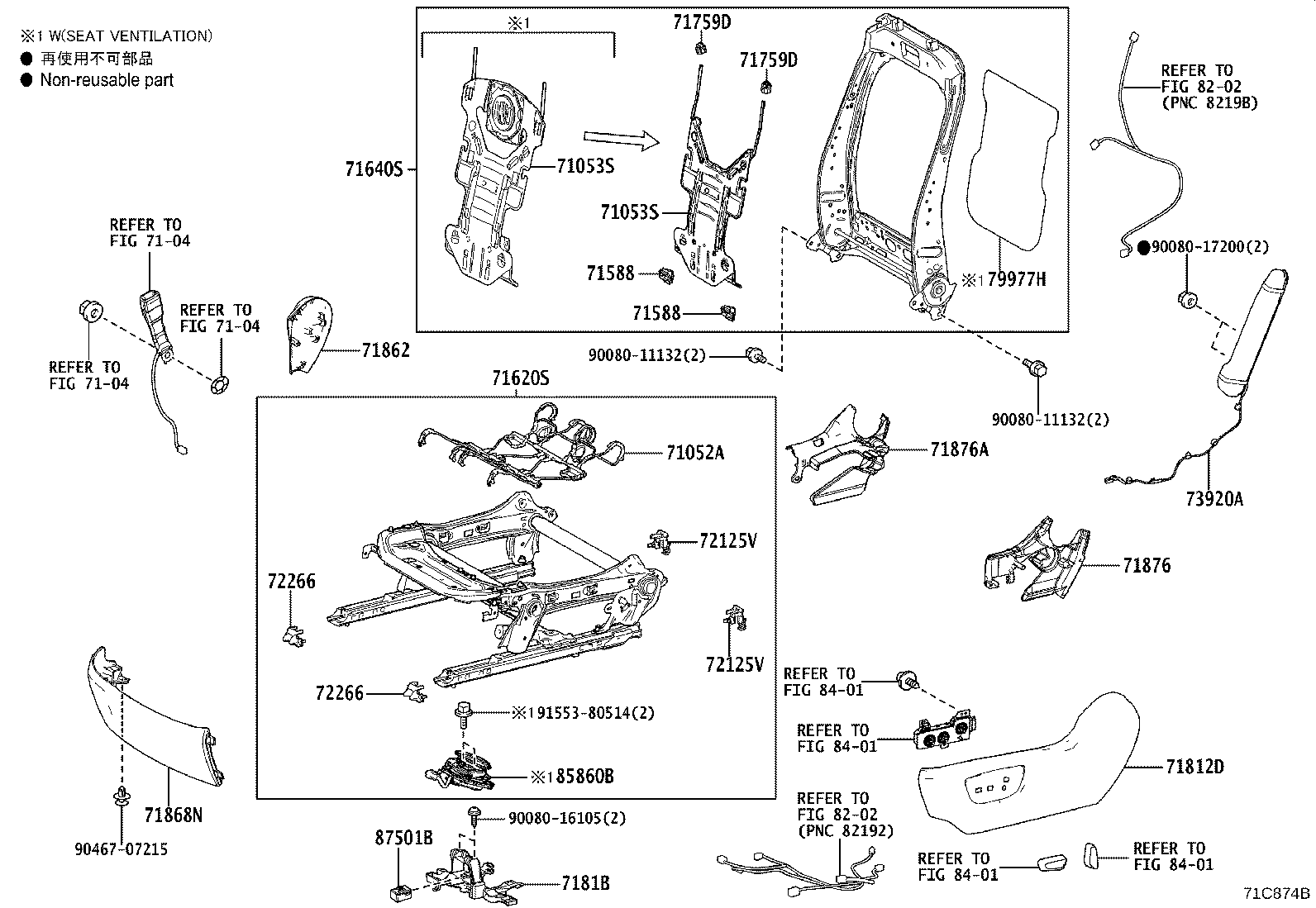

LH SEAT(POWER-4WAY)

diagram 7104 7104 7104 71052A 71053S 71053S 71588 71588 71620S 71640S 71759D 71759D 71812D 7181B 71862 71868N 71876 71876A 72125V 72125V 72266 72266 73920A 79977H 8202 8202 8401 8401 8401 8401 85860B 87501B 9008011132 9008011132 9008016105 9008017200 9046707215 9155380514
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-02360

AXUH7#,GSU7#

 1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71587-0R010

AXUH7#,GSU7#

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71587-0R010

AXUH7#,GSU7#

 2
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0E230

AXUH78..RHD..XLE

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0R180

AXUH78..RHD..XLE

 1
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0R020

AXUH7#,GSU7#

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0R020

AXUH7#,GSU7#

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0E240C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-0R020

AXUH78,GSU7#..RHD..(LIMD,XLE)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0E110C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-0E130C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-0E140C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
72125V - COVER, SEAT TRACK, UPPER REAR LH
72125-0R010

AXUH78..RHD..XLE

 2
72125V - COVER, SEAT TRACK, UPPER REAR LH
72125-0R010

AXUH78..RHD..XLE

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0R010

AXUH78..RHD..XLE

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0R010

AXUH78..RHD..XLE

 2
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0E100

AXUH78,GSU7#..ARL,EUR

 1
87501B - CONTROL SUB-ASSY, SEAT HEATER, LH
87501-0R030

GSU75..LE..RUS;AXUH78..LIMD..GCC;AXUH70,GSU7#..LIMD;AXUH78..(LIMD,XLE)..(ARL,EUR)

 1
Common parts
90080-11132
90080-16105
90080-17200
90467-07215
91553-80514
Linked diagrams
7104
8202
8401

ILLUST NO. 3 OF 3(2011- )

Click highlighted areas on diagram

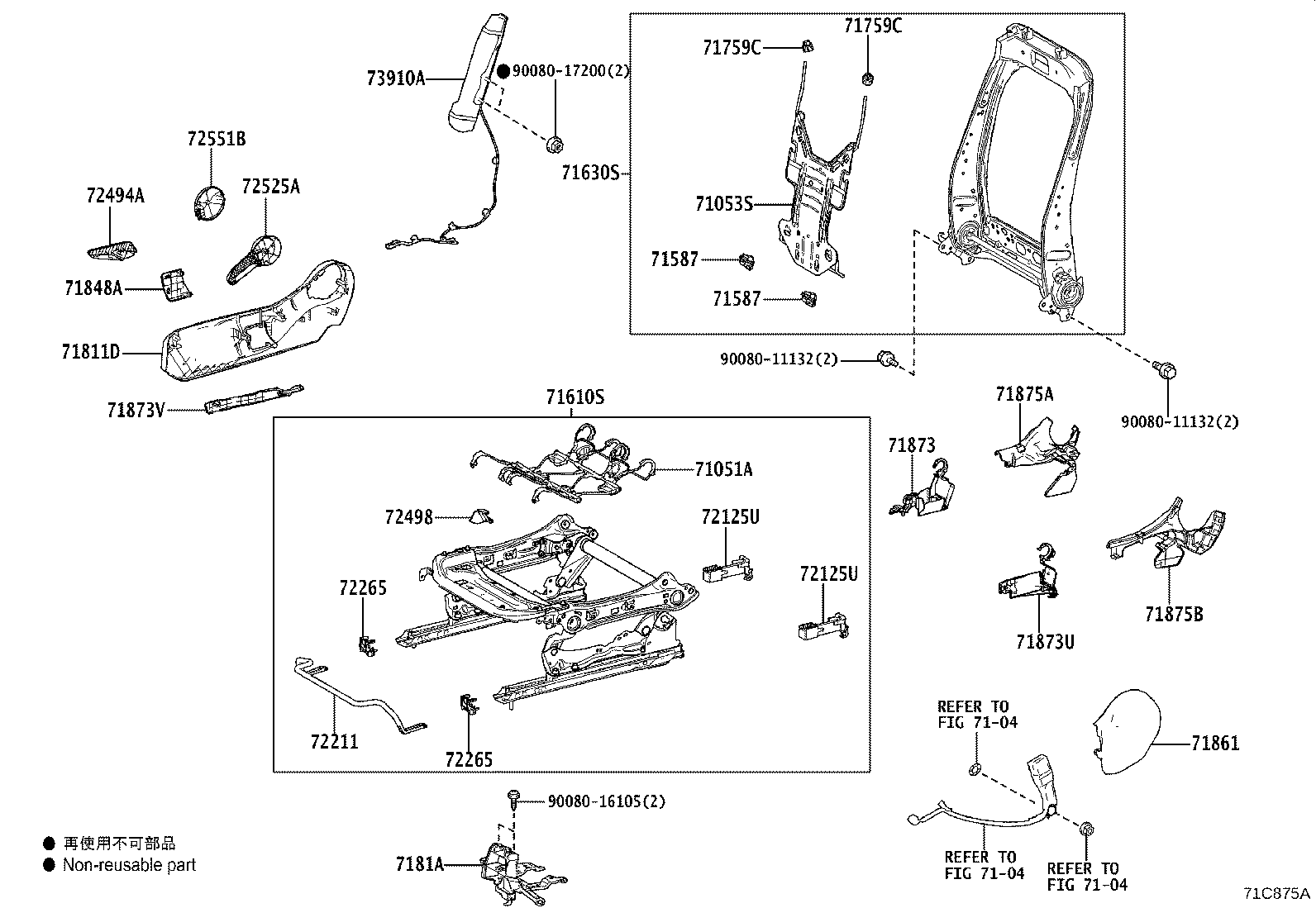

RH SEAT(MANUAL-6WAY)

diagram 7104 7104 7104 71051A 71053S 71587 71587 71610S 71630S 71759C 71759C 71811D 7181A 71848A 71861 71873 71873U 71873V 71875A 71875B 72125U 72125U 72211 72265 72265 72494A 72498 72525A 72551B 73910A 9008011132 9008011132 9008016105 9008017200
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-02360

AXUH7#,GSU7#

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-0R010

AXUH7#,GSU7#

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-0R010

AXUH7#,GSU7#

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-0E260

AXUH78..RHD..XLE

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0E150

AXUH78..RHD..XLE

 1
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0R020

AXUH7#,GSU7#

 2
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0R020

AXUH7#,GSU7#

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0E230C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-0E010

AXUH78,GSU7#..RHD..(LIMD,XLE)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0E120B0

AXUH78,GSU7#..RHD..(LE,LIMD)

GRAY,TRIM1#

 1
71861-0E120C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0E170C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0E180C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0E190C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-0E090B0

AXUH78,GSU7#..RHD..(LE,LIMD)

GRAY,TRIM1#

 1
71875-0E090C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-0E100B0

AXUH78,GSU7#..RHD..(LE,LIMD)

GRAY,TRIM1#

 1
71875-0E100C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
72125U - COVER, SEAT TRACK, UPPER REAR RH
72125-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72125U - COVER, SEAT TRACK, UPPER REAR RH
72125-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72551B - COVER, RECLINING HINGE, RH
72551-0R020C0

AXUH78,GSU75..(LE,XLE)..(EUR,RUS)

BLACK,TRIM2#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0E100

AXUH78,GSU7#..ARL,EUR

 1
Common parts
90080-11132
90080-16105
90080-17200
Linked diagrams
7104

ILLUST NO. 3 OF 3(2011- )

Click highlighted areas on diagram

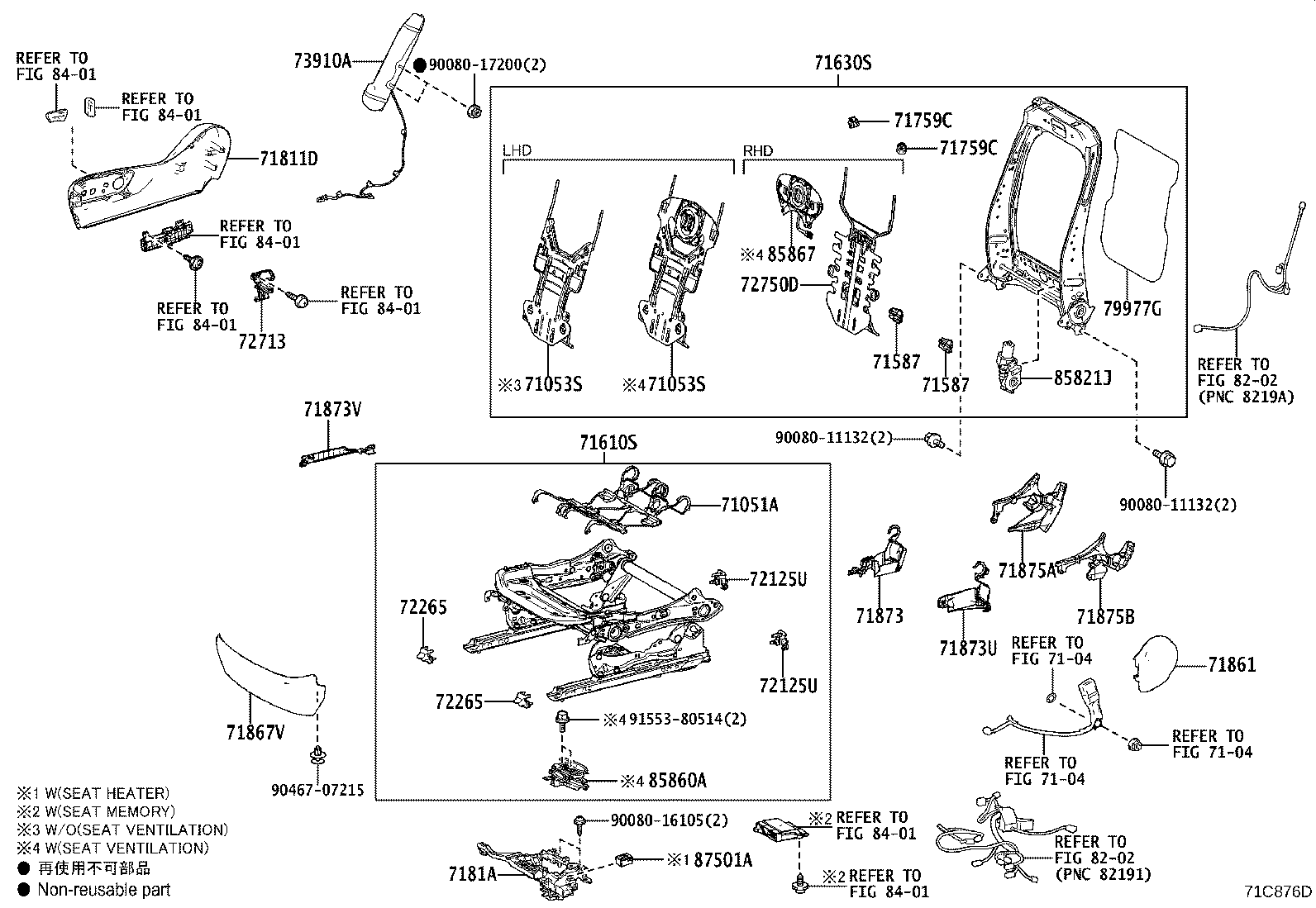

RH SEAT(POWER-8WAY)

diagram 7104 7104 7104 71051A 71053S 71053S 71587 71587 71610S 71630S 71759C 71759C 71811D 7181A 71861 71867V 71873 71873U 71873V 71875A 71875B 72125U 72125U 72265 72265 72713 72750D 73910A 79977G 8202 8202 8401 8401 8401 8401 8401 8401 8401 85821J 85860A 85867 87501A 9008011132 9008011132 9008016105 9008017200 9046707215 9155380514
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-02360

AXUH7#,GSU7#

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-0R010

AXUH7#,GSU7#

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-0R010

AXUH7#,GSU7#

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-0E260

AXUH78..RHD..XLE

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0E150

AXUH78..RHD..XLE

 1
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0R020

AXUH7#,GSU7#

 2
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0R020

AXUH7#,GSU7#

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0E230C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-0E010

AXUH78,GSU7#..RHD..(LIMD,XLE)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0E120B0

AXUH78,GSU7#..RHD..(LE,LIMD)

GRAY,TRIM1#

 1
71861-0E120C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-0E120C0

AXUH78..RHD..XLE;AXUH7#..LIMD..GCC

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0E170C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0E180C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0E190C0

AXUH78..RHD..XLE

BLACK,TRIM2#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-0E090B0

AXUH78,GSU7#..RHD..(LE,LIMD)

GRAY,TRIM1#

 1
71875-0E090C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-0E100B0

AXUH78,GSU7#..RHD..(LE,LIMD)

GRAY,TRIM1#

 1
71875-0E100C0

AXUH78,GSU7#..RHD..(LE,XLE)

BLACK,TRIM2#

 1
72125U - COVER, SEAT TRACK, UPPER REAR RH
72125-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72125U - COVER, SEAT TRACK, UPPER REAR RH
72125-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0R020

AXUH78..LHD..LIMD;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 2
72713 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72713-0E010

AXUH78,GSU7#..RHD..(LIMD,XLE)

 1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72760-0R040

AXUH78..RHD..EUR

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0E100

AXUH78,GSU7#..ARL,EUR

 1
79977G - FELT, FRONT SEAT BACK, RH
79977-02140

AXUH78..LIMD..GCC;AXUH70,GSU7#..LIMD;AXUH78..RHD..(LIMD,XLE)

 1
85821J - MOTOR ASSY, POWER SEAT RECLINING, RH
85801-48130

AXUH7#,GSU7#

W(SEAT MEMORY)

 1
85801-48120

AXUH7#,GSU7#

W/O(SEAT MEMORY)

 1
87501A - CONTROL SUB-ASSY, SEAT HEATER, RH
87501-0R030

GSU75..LE..RUS;AXUH78..LIMD..GCC;AXUH70,GSU7#..LIMD;AXUH78..(LIMD,XLE)..(ARL,EUR)

 1
Common parts
90080-11132
90080-16105
90080-17200
90467-07215
91553-80514
Linked diagrams
7104
8202
8401
