AXUH78R-ARXMHW (2020)

Toyota Highlander/Kluger

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )RHD

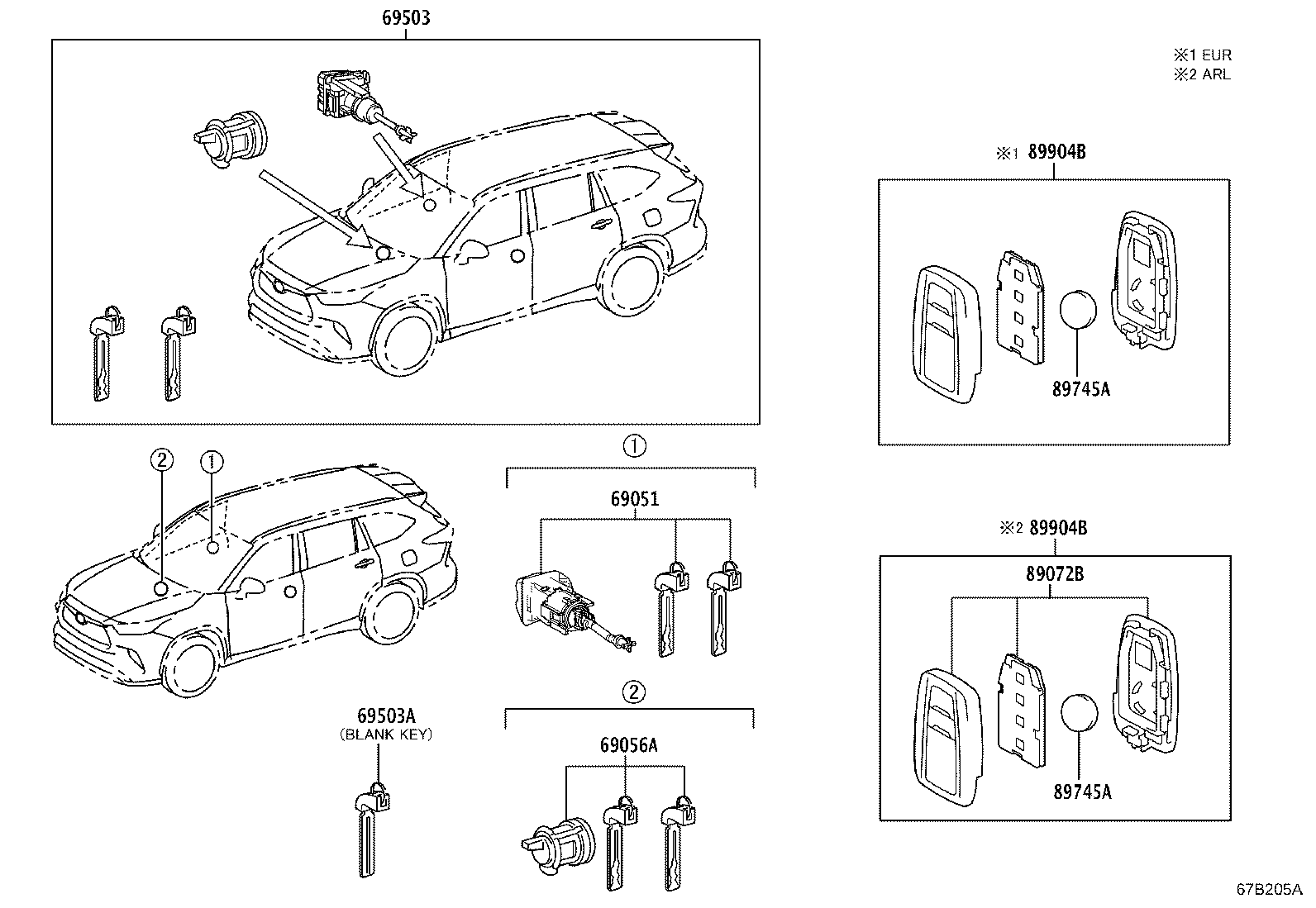

Click highlighted areas on diagram

diagram 69051 69056A 69503 69503A 89072B 89745A 89745A 89904B 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0E030

AXUH78,GSU7#..RHD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-06170

AXUH7#,GSU7#

 1
69503 - CYLINDER SET, LOCK
69005-0E260

AXUH78,GSU7#..RHD

 1
69503A - KEY, BLANK
69515-06050

AXUH7#,GSU7#

MASTER KEY,W(*68)

 1
89745A - BATTERY, TRANSMITTER
89745-50020

AXUH7#,GSU7#

CR2032

 1
89745A - BATTERY, TRANSMITTER
89745-50020

AXUH7#,GSU7#

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-0E190

AXUH7#..LE..GCC;AXUH78..XLE..EUR

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-0E190

AXUH7#..LE..GCC;AXUH78..XLE..EUR

 1
