AXUH78R-ARXGHW (2020)

Toyota Highlander/Kluger

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )RHD

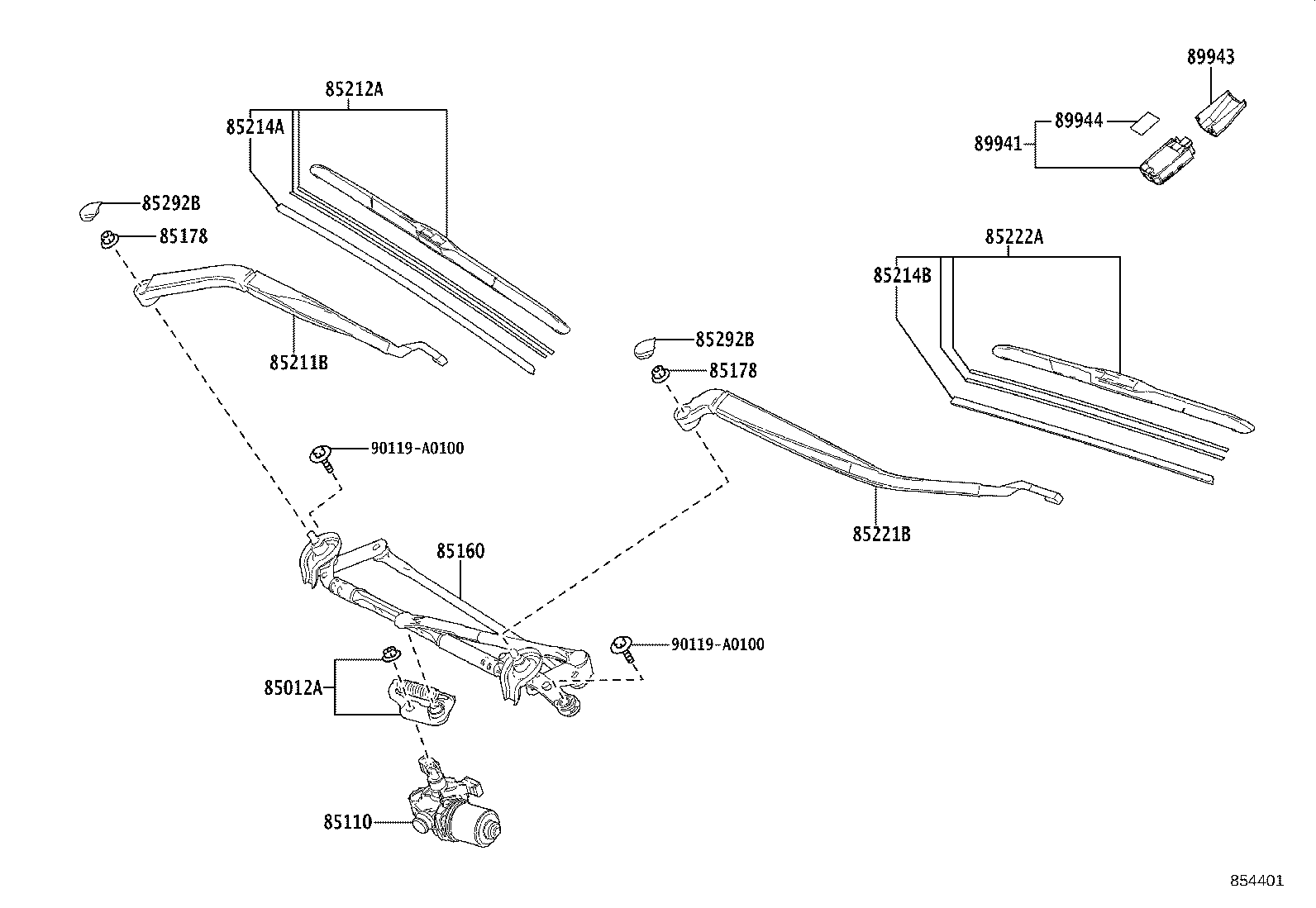

Click highlighted areas on diagram

diagram 85012A 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 90119A0100 90119A0100
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58030

AXUH78,GSU7#..RHD

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0E110

AXUH78..RHD..EUR

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0E130

AXUH78..RHD..EUR

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017

AXUH7#,GSU7#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017

AXUH7#,GSU7#

 2
85211B - ARM, FRONT WIPER, RH
85211-0E120

AXUH78..RHD..EUR

 1
85212A - BLADE, FR WIPER, RH
85212-0E100

AXUH78,GSU7#..RHD

 1
85214A - RUBBER, WIPER, RH
85214-0E151

AXUH78,GSU7#..RHD

 1
85214B - RUBBER, WIPER, LH
85214-0E130

AXUH78,GSU7#..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-0E120

AXUH78,GSU7#..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-0E100

AXUH78,GSU7#..RHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

AXUH7#,GSU7#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

AXUH7#,GSU7#

 2
89941 - SENSOR, RAIN
89941-11010

AXUH78..ARL,EUR;AXUH7#..LIMD..GCC

 1
89943 - COVER, RAIN SENSOR
89943-48030

GSU75..RUS;AXUH78..ARL,EUR;AXUH7#..LIMD..GCC

 1
89944 - TAPE, RAIN SENSOR
89944-42020

GSU75..RUS;AXUH78..ARL,EUR;AXUH7#..LIMD..GCC

 1
Common parts
90119-A0100
