AXUH78R-ARXGHW (2020)

Toyota Highlander/Kluger

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

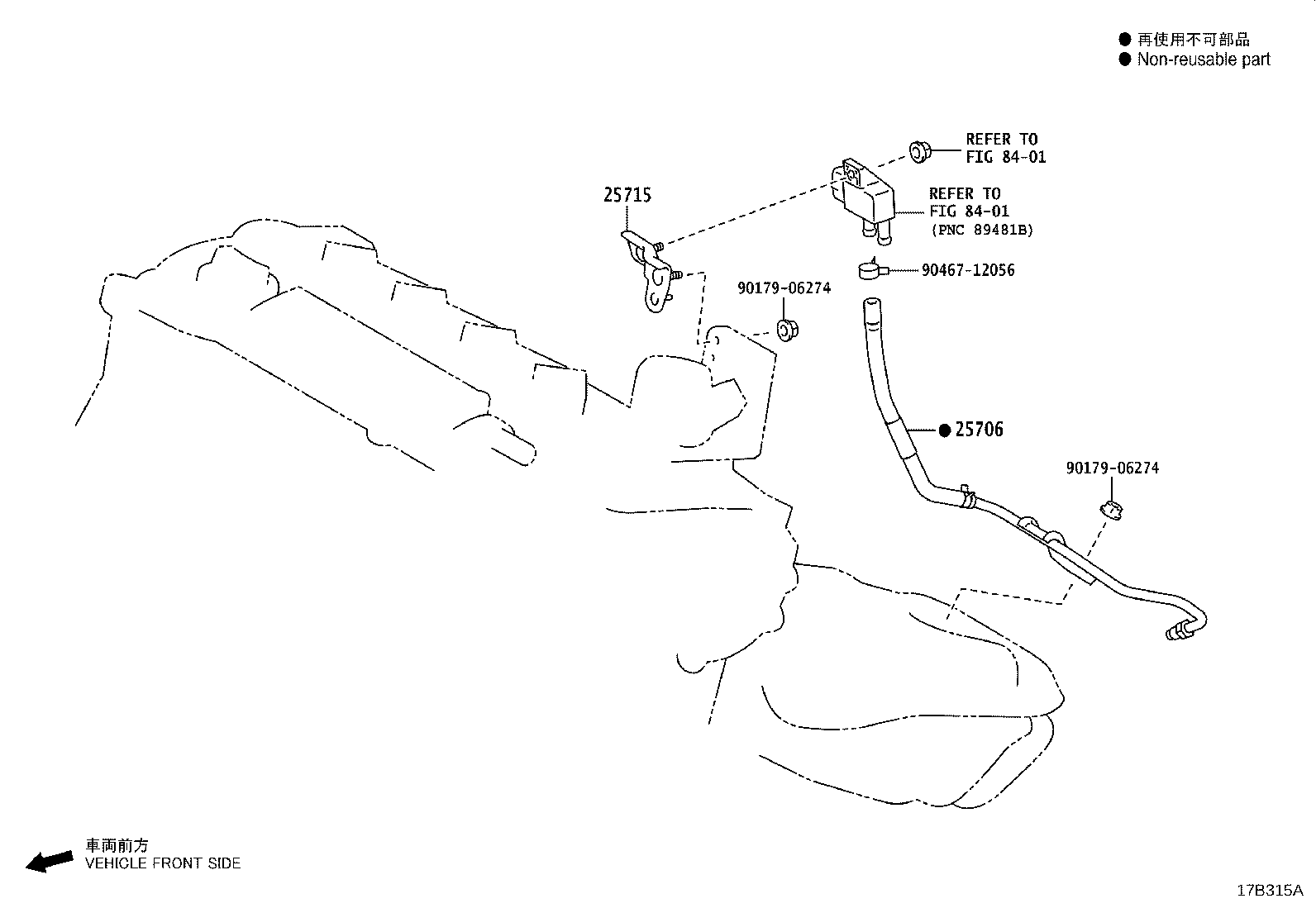

ILLUST NO. 2 OF 2(2011- )A25AFXS..AXUH78..EUR

Click highlighted areas on diagram

W(GPF)

diagram 25706 25715 8401 8401 9017906274 9017906274 9046712056
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-25020

A25AFXS..AXUH78..EUR

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-25020

A25AFXS..AXUH78..EUR

 1
Common parts
90179-06274
90467-12056
Linked diagrams
8401
