AXUH78L-ARXNHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )LHD

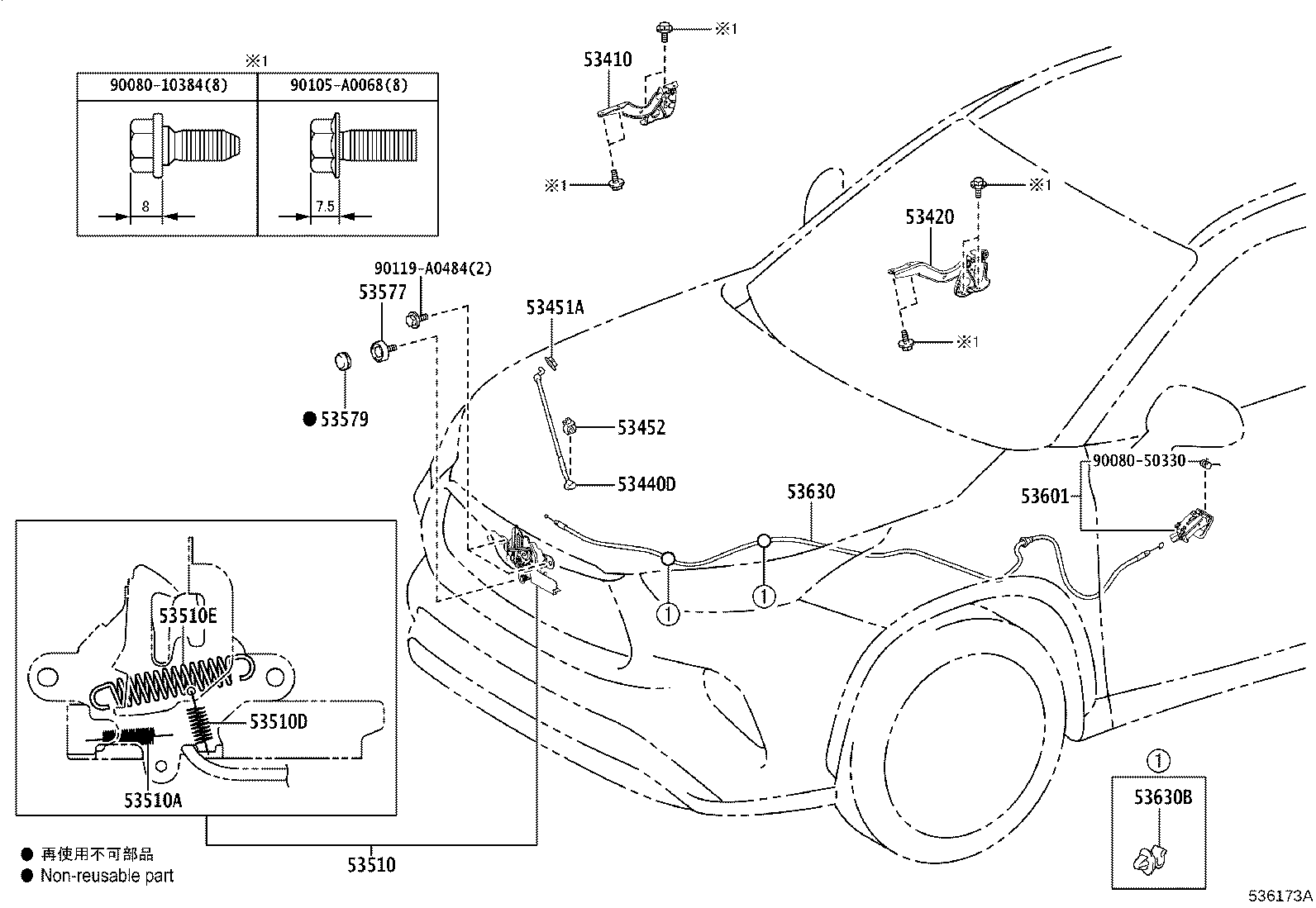

Click highlighted areas on diagram

diagram 53410 53420 53440D 53451A 53452 53510 53510A 53510D 53510E 53577 53579 53601 53630 53630B 9008010384 9008050330 90105A0068 90119A0484
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0E190

AXUH7#,GSU7#

 1
53420 - HINGE ASSY, HOOD, LH
53420-0E190

AXUH7#,GSU7#

 1
53440D - SUPPORT ASSY, HOOD
53440-0E090

AXUH7#,GSU7#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15025

AXUH7#,GSU7#

 1
53452 - HOLDER, HOOD STAY
53452-02220

AXUH7#,GSU7#

 1
53510 - LOCK ASSY, HOOD
53510-0E160

AXUH7#..LE..GCC

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AXUH7#,GSU7#

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AXUH7#,GSU7#

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

AXUH7#,GSU7#

WD=1.8,CW=13

 1
53577 - BOLT, HOOD LOCK
53577-0E010

AXUH7#,GSU7#

 1
53579 - CAP, HOOD LOCK NUT
53579-0E010

AXUH7#,GSU7#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02040C0

AXUH78..ARL;AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0E090

AXUH7#,GSU7#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AXUH7#,GSU7#

 2
Common parts
90080-10384
90080-50330
90105-A0068
90119-A0484
