AXUH78L-ARXMHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )GCC ; (2011- )ARL,EUR

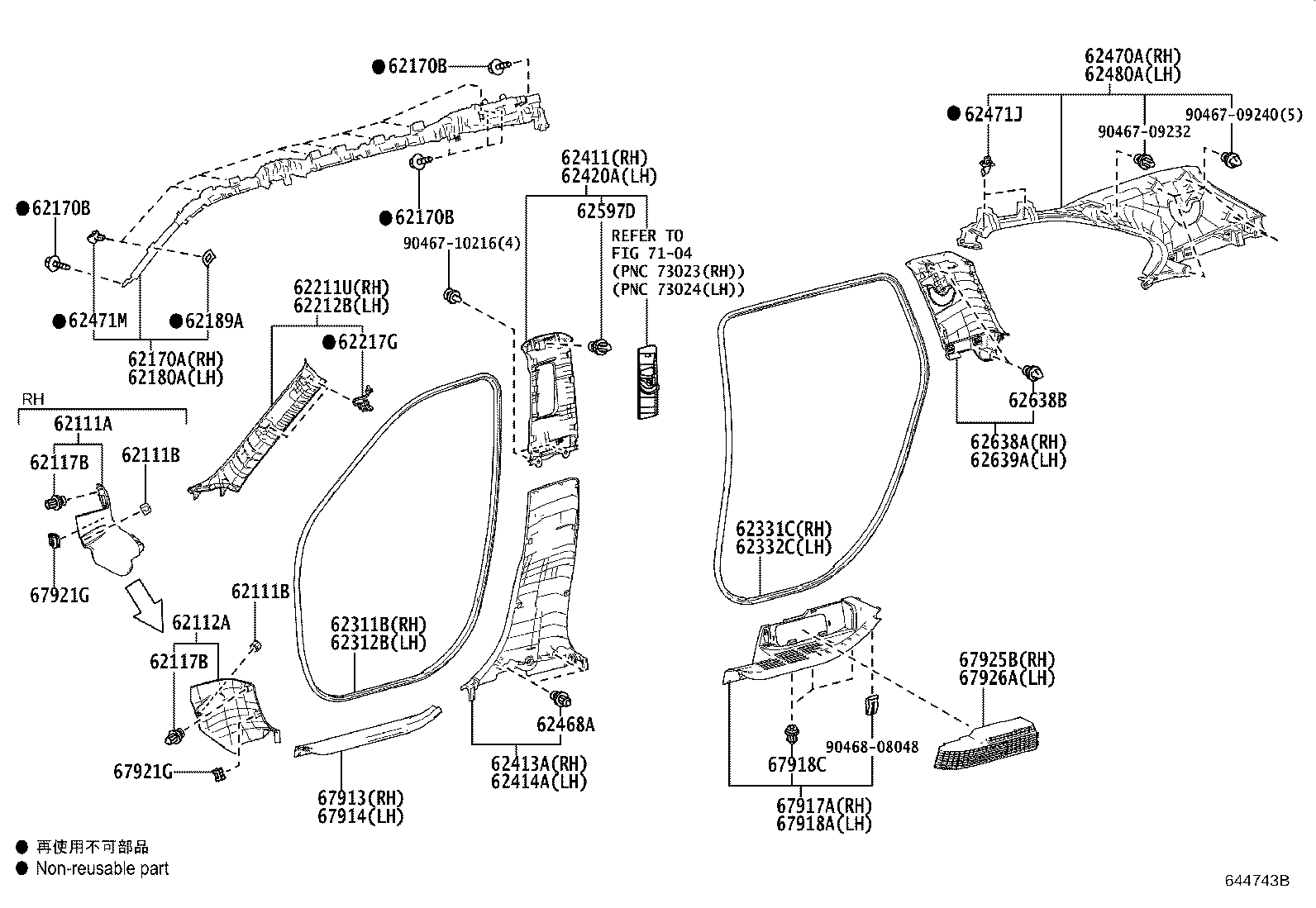

Click highlighted areas on diagram

diagram 62111A 62111B 62111B 62112A 62117B 62117B 62170A 62170B 62170B 62170B 62180A 62189A 62211U 62212B 62217G 62311B 62312B 62331C 62332C 62411 62413A 62414A 62420A 62468A 62470A 62471J 62471M 62480A 62597D 62638A 62638B 62639A 67913 67914 67917A 67918A 67918C 67921G 67921G 67925B 67926A 7104 9046709232 9046709240 9046710216 9046808048
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-0E080C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-A0024

AXUH7#,GSU7#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-A0024

AXUH7#,GSU7#

 2
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-0E090C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
62489-0E010

AXUH7#,GSU7#

 2
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
62489-0E010

AXUH7#,GSU7#

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0E100

AXUH7#,GSU75

 1
62170-0E101

AXUH7#,GSU75..GCC,RUS

 1
62170B - BOLT, W/WASHER
90080-11699

AXUH7#,GSU7#

 10
62170B - BOLT, W/WASHER
90080-11699

AXUH7#,GSU7#

 10
62170B - BOLT, W/WASHER
90080-11699

AXUH7#,GSU7#

 10
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0E101

AXUH7#,GSU75..GCC,RUS

 1
62180-0E100

AXUH7#,GSU75

 1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

AXUH7#,GSU7#

 2
62211U - GARNISH ASSY, FRONT PILLAR, RH
62210-0E110B0

AXUH7#..(LE,XLE)..GCC

LT. GRAY,TRIM1#,2#

 1
62212B - GARNISH ASSY, FRONT PILLAR, LH
62220-0E120B0

AXUH7#..(LE,XLE)..GCC

LT. GRAY,TRIM1#,2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-11020

AXUH7#,GSU7#

 4
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0E080

AXUH7#,GSU7#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0E080

AXUH7#,GSU7#

 1
62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0E080

AXUH7#,GSU7#

 1
62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0E080

AXUH7#,GSU7#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-0E090B0

AXUH7#..(LE,XLE)..GCC

LT.GRAY,TRIM1#,2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0E070C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0E080C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
62420A - GARNISH ASSY, CENTER PILLER, LH
62420-0E090B0

AXUH7#..(LE,XLE)..GCC

LT.GRAY,TRIM1#,2#

 1
62468A - CLIP (FOR CENTER PILLAR REAR GARNISH)
62489-0E010

AXUH7#,GSU7#

 4
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-0E200B0

AXUH7#..(LE,XLE)..GCC

LT.GRAY,TRIM1#,2#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
62489-60020

AXUH7#,GSU7#

 4
62471M - CLIP
90467-18017

AXUH7#,GSU7#

 16
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-0E210B0

AXUH7#..(LE,XLE)..GCC

LT.GRAY,TRIM1#,2#

 1
62597D - CLIP
90467-10188

AXUH7#,GSU7#

 2
62638A - GARNISH, QUARTER PILLAR, RH
62550-0E030B0

AXUH7#..LE,XLE

LT.GRAY,TRIM1#,2#

 1
62550-0E031B0

AXUH7#..(LE,XLE)..(EUR,GCC)

LT.GRAY,TRIM1#,2#

 1
62638B - CLIP
90467-09240

AXUH7#,GSU7#

 4
62639A - GARNISH, QUARTER PILLAR, LH
62560-0E030B0

AXUH7#..LE,XLE

LT.GRAY,TRIM1#,2#

 1
62560-0E031B0

AXUH7#..(LE,XLE)..(EUR,GCC)

LT.GRAY,TRIM1#,2#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0E100C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0E100C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0E090C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0E100C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
67918C - CLIP(FOR REAR SCUFF PLATE)
67773-0E020

AXUH7#,GSU7#

 6
67921G - RETAINER, FRONT DOOR SCUFF PLATE
67921-0E050

AXUH7#,GSU7#

 2
67921G - RETAINER, FRONT DOOR SCUFF PLATE
67921-0E050

AXUH7#,GSU7#

 2
67925B - PANEL, REAR DOOR SCUFF, RH
67925-0E050C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
67926A - PANEL, REAR DOOR SCUFF, LH
67926-0E040C0

AXUH7#..(LE,XLE)..GCC

BLACK,TRIM1#,2#

 1
Common parts
90467-09232
90467-09240
90467-10216
90468-08048
Linked diagrams
7104
