AXUH78L-ARXGHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )AXUH7#..LHD

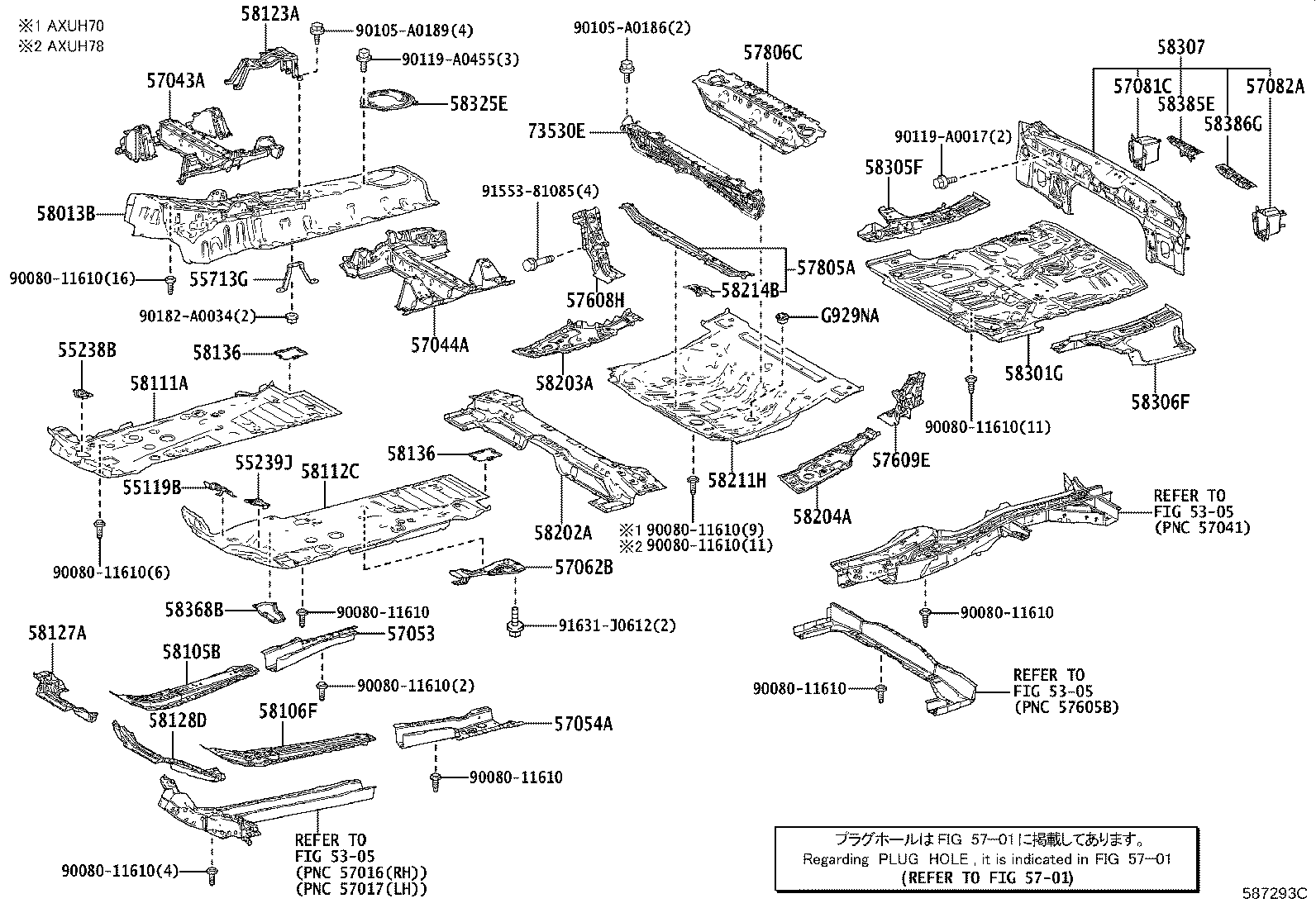

Click highlighted areas on diagram

diagram 5305 5305 5305 55119B 55238B 55239J 55713G 5701 57043A 57044A 57053 57054A 57062B 57081C 57082A 57608H 57609E 57805A 57806C 58013B 58105B 58106F 58111A 58112C 58123A 58127A 58128D 58136 58136 58202A 58203A 58204A 58211H 58214B 58301G 58305F 58306F 58307 58325E 58368B 58385E 58386G 73530E 9008011610 9008011610 9008011610 9008011610 9008011610 9008011610 9008011610 9008011610 9008011610 9008011610 9008011610 90105A0186 90105A0189 90119A0017 90119A0455 90182A0034 9155381085 91631J0612 G929NA
Part # Description Qty Price
55119B - EXTENSION, DASH PANEL, LH
55119-0E010

AXUH7#,GSU75..LHD

 1
55238B - PLATE, DASH PANEL INSULATOR, LOWER RH
55238-0R010

AXUH7#,GSU7#

 1
55239J - PLATE, DASH PANEL INSULATOR, LOWER LH
55239-0R010

AXUH7#,GSU7#

 1
55713G - BRACKET, FRONT LOWER PANEL
55713-0E090

AXUH7#

 1
57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-0E010

AXUH7#,GSU7#

 1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-0E010

AXUH7#,GSU7#

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-0E010

AXUH7#,GSU7#

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-0R040

AXUH7#,GSU7#

 1
57062B - BRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57062-0E060

AXUH7#

 1
57081C - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
57081-0E010

AXUH7#,GSU7#

 1
57082A - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57082-0E010

AXUH7#,GSU7#

 1
57608H - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57608-0E060

AXUH7#,GSU7#

 1
57609E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57609-0E070

AXUH7#,GSU7#

 1
57805A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805-0E051

AXUH7#

 1
57805-0E050

AXUH7#

 1
57806C - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57806-0E020

AXUH7#

 1
58013B - PANEL SUB-ASSY, FRONT FLOOR, CENTER
58013-0E080

AXUH7#

 1
58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58105-0E070

AXUH7#,GSU7#

 1
58106F - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58106-0E010

AXUH7#,GSU7#

 1
58111A - PAN, FRONT FLOOR, RH
58111-0R050

AXUH7#,GSU7#

 1
58112C - PAN, FRONT FLOOR, LH
58112-0R040

AXUH7#,GSU7#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-0E070

AXUH7#,GSU75..LHD

 1
58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58127-0E041

AXUH7#,GSU7#

 1
58127-0E040

AXUH7#,GSU75

 1
58128D - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58128-0R030

AXUH7#,GSU75

 1
58128-0R031

AXUH7#,GSU7#

 1
58136 - COVER, FRONT FLOOR HOLE
58136-0E040

AXUH7#,GSU7#

 2
58136 - COVER, FRONT FLOOR HOLE
58136-0E040

AXUH7#,GSU7#

 2
58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT
58202-0E110

AXUH7#

 1
58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58203-0E020

AXUH7#,GSU7#

 1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-0E040

AXUH7#,GSU7#

 1
58211H - PAN, CENTER FLOOR
58211-0E100

AXUH7#

 1
58211-0E101

AXUH7#

 1
58214B - PANEL, SEAT FLOOR SIDE, LH
58214-0E031

AXUH7#

 1
58301G - PAN SUB-ASSY, REAR FLOOR
58301-0E902

AXUH7#

 1
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-0E080

AXUH7#

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-0E080

AXUH7#,GSU7#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-0E080

AXUH7#,GSU7#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-0E050

AXUH7#

 1
58368B - BRACKET, FUEL TUBE, NO.2
58368-0R010

AXUH7#,GSU7#

 1
58385E - BRACKET, REAR BUMPER COVER, RH
58385-0E040

AXUH7#,GSU7#

 1
58386G - BRACKET, REAR BUMPER COVER, LH
58386-0E040

AXUH7#,GSU7#

 1
73530E - PANEL ASSY, REAR SEAT SUB FLOOR
73530-0E040

AXUH7#,GSU7#

 1
G929NA - PLUG, BATTERY DRAIN
G929N-52010

AXUH7#

 1
Common parts
90080-11610
90105-A0186
90105-A0189
90119-A0017
90119-A0455
90182-A0034
91553-81085
91631-J0612
Linked diagrams
5305
5701
